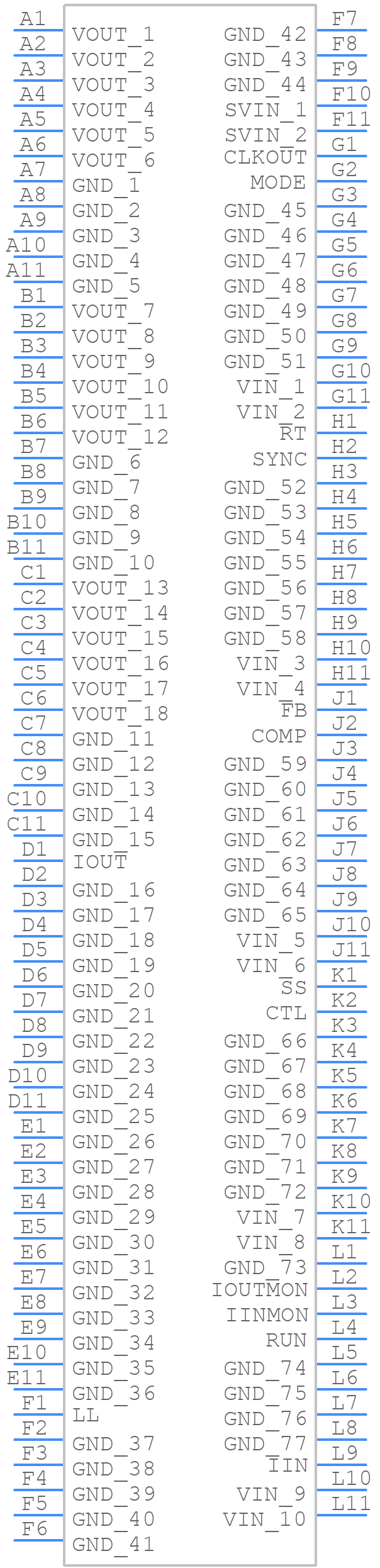

Part Symbol
-

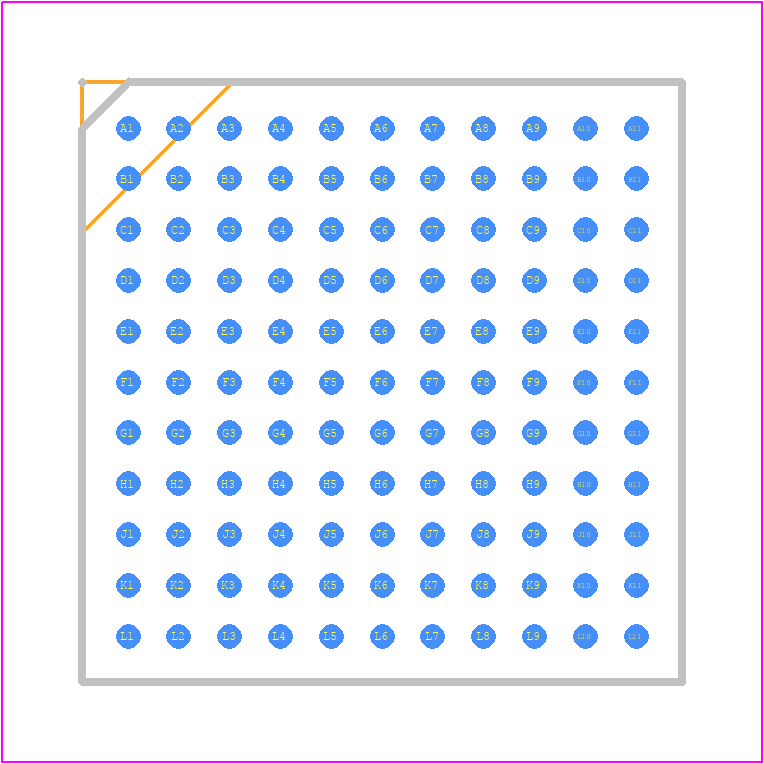

Footprint
-

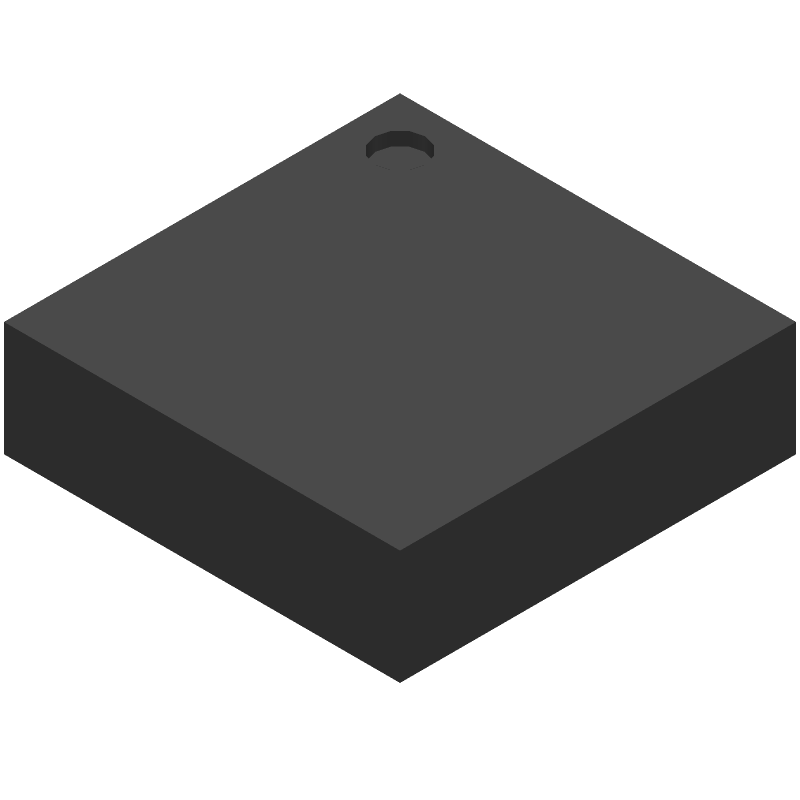

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTM8056EY#PBF by Analog Devices Inc
Results Overview of LTM8056EY#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTM8056EY#PBF Information
LTM8056EY#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTM8056EY#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK4450
|
Newark | Dc-Dc Converter, 1.2V-48V, 5.4A, Power Supply Applications:Industrial, Dc/Dc Converter Type:Bga-121, Micro Module, Output Power Max:-, Output Voltage Min:1.2V, Output Voltage Max:48V, Output Current Max:5.4A, Height:4.92Mm Rohs Compliant: Yes |Analog Devices LTM8056EY#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 109 |
|
$32.3600 / $45.1200 | Buy Now |
|
DISTI #
LTM8056EY#PBF-ND
|
DigiKey | DC DC CONVERTER 1.2-48V Min Qty: 1 Lead time: 39 Weeks Container: Tray | Temporarily Out of Stock |
|
$32.3624 / $45.1200 | Buy Now |
|
DISTI #
584-LTM8056EY#PBF
|
Mouser Electronics | Switching Voltage Regulators 58VIN, 48Vout Buck-Boost uModule Reg RoHS: Compliant | 130 |
|
$37.9100 / $49.2500 | Buy Now |
|
|
Analog Devices Inc | 58VIN, 48Vout Buck-Boost µModu Package Multiple: 119 | 0 |
|
$25.8900 / $45.1200 | Buy Now |
|
DISTI #
LTM8056EY#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 119 | 0 |
|
$33.4300 / $36.6800 | Buy Now |
Part Details for LTM8056EY#PBF
LTM8056EY#PBF CAD Models
LTM8056EY#PBF Part Data Attributes
|
|
LTM8056EY#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM8056EY#PBF
Analog Devices Inc
58VIN, 48VOUT Buck-Boost µModule (Power Module) Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 121 | |
| Manufacturer Package Code | 05-08-1891 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | OUTPUT VOLTAGE RANGE FROM 1.2 VOLT TO 48 VOLT | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 58 V | |
| Input Voltage-Min | 5 V | |
| Input Voltage-Nom | 6 V | |
| JESD-30 Code | S-PBGA-B121 | |
| JESD-609 Code | e1 | |
| Length | 15 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 121 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 245 | |
| Seated Height-Max | 5.12 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 800 kHz | |
| Technology | HYBRID | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 15 mm |
Alternate Parts for LTM8056EY#PBF
This table gives cross-reference parts and alternative options found for LTM8056EY#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTM8056EY#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTM8056IY#PBF | Analog Devices Inc | $24.9607 | 58VIN, 48VOUT Buck-Boost µModule (Power Module) Regulator | LTM8056EY#PBF vs LTM8056IY#PBF |
| LTM8056IY | Analog Devices Inc | $26.4526 | 58VIN, 48VOUT Buck-Boost µModule (Power Module) Regulator | LTM8056EY#PBF vs LTM8056IY |
| LTM8056MPY#PBF | Analog Devices Inc | $43.0895 | 58VIN, 48VOUT Buck-Boost µModule (Power Module) Regulator | LTM8056EY#PBF vs LTM8056MPY#PBF |
LTM8056EY#PBF Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device's exposed pad should be soldered to a thermal pad on the PCB to improve heat dissipation.
-
To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF, and to decouple the input voltage with a 10uF capacitor. Additionally, the output voltage should be monitored and adjusted as needed to prevent oscillations.
-
The maximum ambient temperature for reliable operation is 85°C. However, the device can operate up to 125°C with derating. It is recommended to ensure good airflow and heat sinking to maintain a safe operating temperature.
-
Yes, the LTM8056EY#PBF is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is recommended to follow proper design and manufacturing guidelines to ensure the highest reliability.
-
The LTM8056EY#PBF has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it is recommended to add external protection circuitry, such as a voltage supervisor or a crowbar circuit, to provide additional protection against overvoltage and undervoltage conditions.
