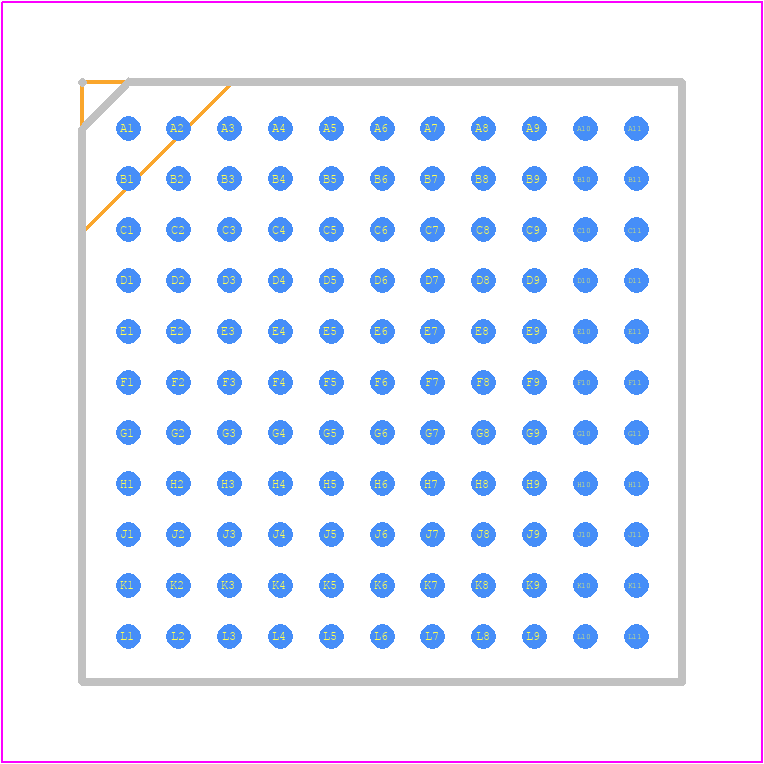

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTM8055IY-1#PBF by Analog Devices Inc
Results Overview of LTM8055IY-1#PBF by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTM8055IY-1#PBF Information
LTM8055IY-1#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTM8055IY-1#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK4448
|
Newark | Dc-Dc Converter, 1.2V-36V, 8.5A, Power Supply Applications:Industrial, Dc/Dc Converter Type:Bga-121, Micro Module, Output Power Max:-, Output Voltage Min:1.2V, Output Voltage Max:36V, Output Current Max:8.5A, Height:4.92Mm Rohs Compliant: Yes |Analog Devices LTM8055IY-1#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 455 |
|
$35.6000 / $48.7000 | Buy Now |
|
DISTI #
505-LTM8055IY-1#PBF-ND
|
DigiKey | IC REG BCK BST ADJ 8.5A 121BGA Min Qty: 1 Lead time: 10 Weeks Container: Tray |
326 In Stock |
|
$35.6000 / $48.7000 | Buy Now |
|
DISTI #
584-LTM8055IY-1#PBF
|
Mouser Electronics | Switching Voltage Regulators 36VIN, 8.5A Buck-Boost uModule Reg RoHS: Compliant | 971 |
|
$37.0400 / $51.3300 | Buy Now |
|
|
Analog Devices Inc | 36VIN, 8.5A Buck-Boost µModule Package Multiple: 119 | 3160 |
|
$28.4800 / $48.7000 | Buy Now |
|
DISTI #
35218221
|
Verical | 36VIN, 8.5A Buck-Boost μModule Regulator Min Qty: 119 Package Multiple: 119 | Americas - 3094 |
|
$35.8239 | Buy Now |
|
DISTI #
LTM8055IY-1#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 119 | 0 |
|
$36.7700 / $40.3500 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 1243 |
|
RFQ | |
|
|
Win Source Electronics | IC REG BCK BST ADJ 8.5A 121BGA / Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 36V 8.5A 5V - 36V Input | 476 |
|
$64.3508 / $96.5257 | Buy Now |
Part Details for LTM8055IY-1#PBF
LTM8055IY-1#PBF CAD Models
LTM8055IY-1#PBF Part Data Attributes
|
|
LTM8055IY-1#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM8055IY-1#PBF
Analog Devices Inc
LTM8055IY-1#PBF
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | BGA-121 | |
| Pin Count | 121 | |
| Manufacturer Package Code | 05-08-1891 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2018-08-24 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | OUTPUT VOLTAGE FROM 1.2V TO 36V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 5 V | |
| Input Voltage-Nom | 6 V | |
| JESD-30 Code | S-PBGA-B121 | |
| JESD-609 Code | e1 | |
| Length | 15 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 121 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 245 | |
| Seated Height-Max | 5.12 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 800 kHz | |
| Technology | HYBRID | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 15 mm |
LTM8055IY-1#PBF Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. The top layer should have a wide copper pour connected to the GND pin, and the bottom layer should have a solid ground plane. This layout helps to dissipate heat efficiently.
-
To ensure reliable start-up, make sure the input voltage rises monotonically and the EN pin is pulled high after the input voltage reaches 2.5V. Also, add a 10nF capacitor between the EN pin and GND to filter out noise.
-
The LTM8055IY-1#PBF can drive up to 10uF of capacitive load. However, it's recommended to limit the capacitive load to 4.7uF to ensure stability and prevent oscillations.
-
The compensation network depends on the output capacitor, ESR, and load characteristics. Use the datasheet's compensation network design guidelines and simulate the design using SPICE models to optimize the compensation network for your specific application.
-
A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7uF to 10uF is recommended. This helps to filter out input noise and ensure stable operation.
