Part Details for LTM8048IY#PBF by Analog Devices Inc
Results Overview of LTM8048IY#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTM8048IY#PBF Information
LTM8048IY#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTM8048IY#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7605
|
Newark | Power Management Ic, 2Output, Bga-45, Ic Type:Μmodule Regulator, Ldo, Supply Voltage:32V, No. Of Step-Down Dc - Dc Converters:1, No. Of Ldo Regulators:1, No. Of Regulated Outputs:2, Ic Case/Package:Bga, No. Of Pins:45Pins Rohs Compliant: Yes |Analog Devices LTM8048IY#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 62 |
|
$16.9500 / $18.4800 | Buy Now |
|
DISTI #
LTM8048IY#PBF-ND
|
DigiKey | DC DC CONVERTER 2.5-13V 1.2-12V Min Qty: 1 Lead time: 26 Weeks Container: Tray |
2 In Stock |
|
$16.8747 / $19.5500 | Buy Now |
|
DISTI #
584-LTM8048IY#PBF
|
Mouser Electronics | Switching Voltage Regulators 3.1VIN to 32VIN Iso uModule DC/DC Conv RoHS: Compliant | 0 |
|
$16.3900 / $18.8200 | Order Now |
|
|
Analog Devices Inc | 3.1VIN to 32VIN Iso µModule D Package Multiple: 168 | 1 |
|
$11.3300 / $19.5500 | Buy Now |
|
DISTI #
LTM8048IYPBF
|
TME | PMIC, LDO,DC/DC converter, Uin: 1.2÷13VDC, Uout: 3.1÷32VDC, LGA81 Min Qty: 168 | 0 |
|
$17.6000 | RFQ |
|
DISTI #
LTM8048IY#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 168 | 0 |
|
$14.6300 / $16.0500 | Buy Now |
Part Details for LTM8048IY#PBF
LTM8048IY#PBF CAD Models
LTM8048IY#PBF Part Data Attributes
|
|
LTM8048IY#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM8048IY#PBF
Analog Devices Inc

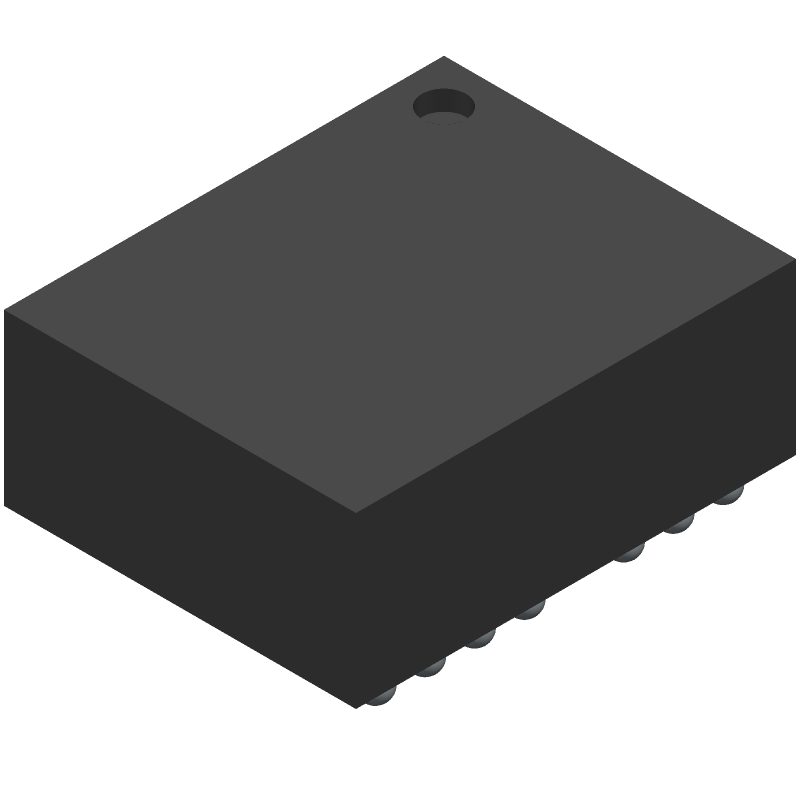

3.1VIN to 32VIN Isolated µModule (Power Module) DC/DC Converter with LDO Post Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 11.25 X 9 MM, 4.92 MM HEIGHT, ROHS COMPLIANT, MS-028, BGA-45 | |
| Pin Count | 45 | |
| Manufacturer Package Code | 05-08-1869 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | OPERATE IN ADJUSTABLE MODE FROM 2.5 TO 13V AND 1.2 TO 12V | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Input Voltage-Max | 31 V | |
| Input Voltage-Min | 3.1 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PBGA-B45 | |
| JESD-609 Code | e1 | |
| Length | 11.25 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 45 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Equivalence Code | BGA45,7X8,50 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 245 | |
| Seated Height-Max | 5.12 mm | |
| Surface Mount | YES | |
| Switcher Configuration | SINGLE | |
| Technology | HYBRID | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 mm |
Alternate Parts for LTM8048IY#PBF
This table gives cross-reference parts and alternative options found for LTM8048IY#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTM8048IY#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTM8048IY | Analog Devices Inc | $21.2940 | 3.1VIN to 32VIN Isolated µModule (Power Module) DC/DC Converter with LDO Post Regulator | LTM8048IY#PBF vs LTM8048IY |
