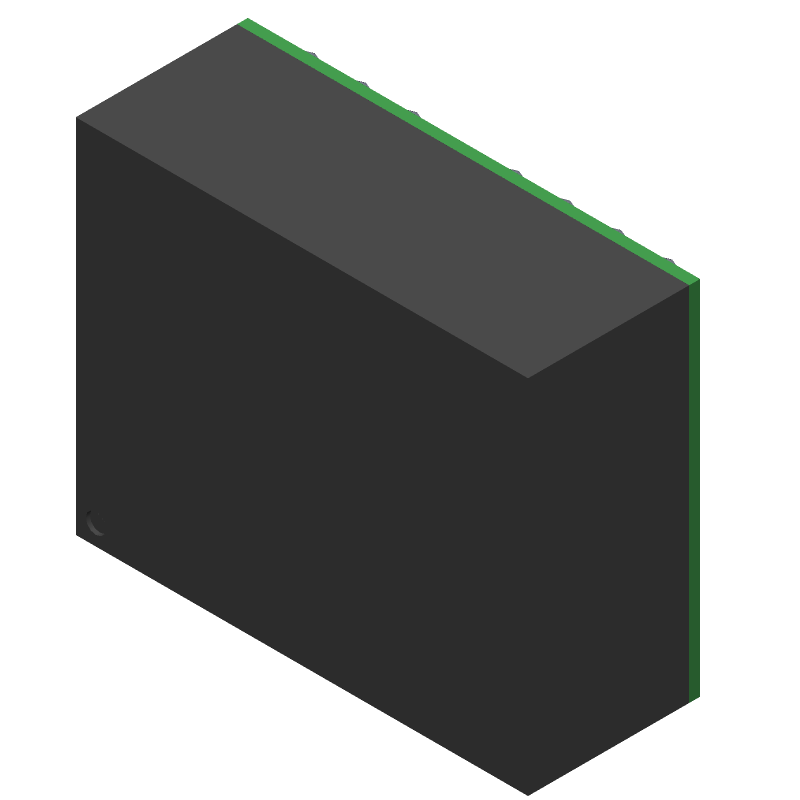

3.1VIN to 32VIN Isolated µModule (Power Module) DC/DC Converter
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LTM8047IY by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
LTM8047IY-ND
|
DigiKey | DC DC CONVERTER 2.5-12V Min Qty: 1 Lead time: 10 Weeks Container: Tray |
4 In Stock |
|
$22.3151 / $25.6000 | Buy Now |
DISTI #
584-LTM8047IY
|
Mouser Electronics | Switching Voltage Regulators 3.1VIN to 32VIN Iso uModule DC/DC Conv RoHS: Not Compliant | 115 |
|
$21.9400 / $24.6500 | Buy Now |
|
Analog Devices Inc | 3.1VIN to 32VIN Iso µModule D Package Multiple: 168 | 1 |
|
$14.9300 / $25.6000 | Buy Now |
DISTI #
LTM8047IY
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Not Compliant Min Qty: 168 | 0 |
|
$19.2800 / $21.1500 | Buy Now |
|
Cytech Systems Limited | DC DC CONVERTER 2.5-12V | 168 |
|
RFQ |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
LTM8047IY
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM8047IY
Analog Devices Inc
3.1VIN to 32VIN Isolated µModule (Power Module) DC/DC Converter
|
Pbfree Code | No | |
Rohs Code | No | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | ANALOG DEVICES INC | |
Package Description | 11.25 X 9 MM, 4.92 MM HEIGHT, 1.27 MM PITCH, ROHS COMPLIANT, MS-028, BGA-45 | |
Pin Count | 45 | |
Manufacturer Package Code | 05-08-1869 | |
Reach Compliance Code | not_compliant | |
HTS Code | 8542.39.00.01 | |
Samacsys Manufacturer | Analog Devices | |
Additional Feature | OPERATE IN ADJUSTABLE MODE FROM 2.5 TO 12V | |
Analog IC - Other Type | SWITCHING CONTROLLER | |
Control Mode | CURRENT-MODE | |
Input Voltage-Max | 31 V | |
Input Voltage-Min | 3.1 V | |
Input Voltage-Nom | 12 V | |
JESD-30 Code | R-PBGA-B45 | |
Length | 11.25 mm | |
Moisture Sensitivity Level | 3 | |
Number of Functions | 1 | |
Number of Terminals | 45 | |
Operating Temperature-Max | 125 °C | |
Operating Temperature-Min | -40 °C | |
Output Current-Max | 0.44 A | |
Output Voltage-Nom | 2.5 V | |
Package Body Material | PLASTIC/EPOXY | |
Package Code | BGA | |
Package Equivalence Code | BGA45,7X8,50 | |
Package Shape | RECTANGULAR | |
Package Style | GRID ARRAY | |
Peak Reflow Temperature (Cel) | 245 | |
Qualification Status | Not Qualified | |
Seated Height-Max | 5.12 mm | |
Surface Mount | YES | |
Switcher Configuration | BUCK-BOOST | |
Technology | HYBRID | |
Temperature Grade | AUTOMOTIVE | |
Terminal Form | BALL | |
Terminal Pitch | 1.27 mm | |
Terminal Position | BOTTOM | |
Width | 9 mm |
