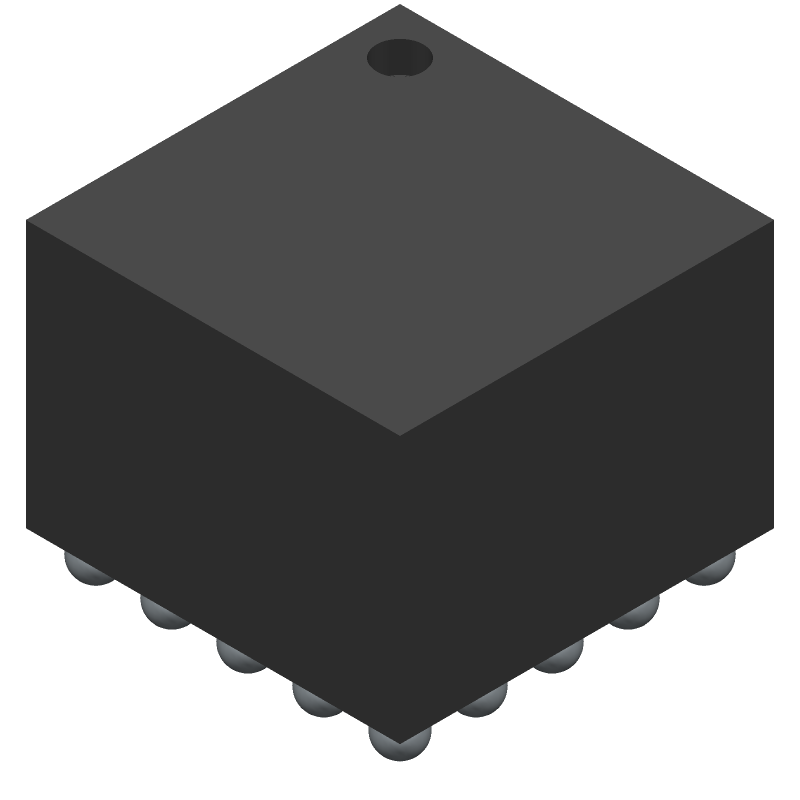

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTM4625IY#PBF by Analog Devices Inc
Results Overview of LTM4625IY#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTM4625IY#PBF Information
LTM4625IY#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTM4625IY#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7554
|
Newark | Dc-Dc Converter, 0.6V-5.5V, 5A, Power Supply Applications:Ite, Industrial & Medical, Dc/Dc Converter Type:Bga-25, Micro Module, Output Power Max:-, Output Voltage Min:600Mv, Output Voltage Max:5.5V, Output Current Max:5A Rohs Compliant: Yes |Analog Devices LTM4625IY#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$10.4500 / $18.8200 | Buy Now |
|
DISTI #
505-LTM4625IY#PBF-ND
|
DigiKey | DC DC CONVERTER 0.6-5.5V Min Qty: 1 Lead time: 39 Weeks Container: Tray | Temporarily Out of Stock |
|
$10.4500 / $18.8200 | Buy Now |
|
DISTI #
584-LTM4625IY#PBF
|
Mouser Electronics | Switching Voltage Regulators 20VIN, 5A Buck DC/DC uModule Reg RoHS: Compliant | 0 |
|
$10.4500 / $18.8200 | Order Now |
|
|
Analog Devices Inc | 20VIN, 5A Buck DC/DC µModule Package Multiple: 260 | 0 |
|
$8.3600 / $18.8200 | Buy Now |
|
DISTI #
LTM4625IY#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 260 | 0 |
|
$10.9300 / $11.3700 | Buy Now |
Part Details for LTM4625IY#PBF
LTM4625IY#PBF CAD Models
LTM4625IY#PBF Part Data Attributes
|
|
LTM4625IY#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM4625IY#PBF
Analog Devices Inc
20VIN, 5A Step-Down DC/DC µModule (Power Module) Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | BGA-25 | |
| Pin Count | 25 | |
| Manufacturer Package Code | 05-08-1905 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | OUTPUT VOLATGE RANGE FROM 0.6 VOLT TO 5.5 VOLT | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 4 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-PBGA-B25 | |
| JESD-609 Code | e1 | |
| Length | 6.25 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 25 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 250 | |
| Seated Height-Max | 5.21 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1000 kHz | |
| Technology | HYBRID | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.25 mm |
Alternate Parts for LTM4625IY#PBF
This table gives cross-reference parts and alternative options found for LTM4625IY#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTM4625IY#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
LTM4625IY#PBF Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the LTM4625IY#PBF is -40°C to 125°C.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 0.1Ω to 10Ω, and to place the output capacitor close to the output pin of the device.
-
The recommended input capacitor value for the LTM4625IY#PBF is 10uF to 22uF, with an ESR of 0.1Ω to 10Ω, and a voltage rating of at least 2x the maximum input voltage.
-
To reduce the noise and ripple in the output voltage, it is recommended to use a low-ESR output capacitor, add a noise-reducing capacitor (e.g. 10nF to 100nF) in parallel with the output capacitor, and to minimize the loop area of the output traces.
-
The maximum current rating for the LTM4625IY#PBF is 2.5A, but it can be limited by the thermal performance of the device and the PCB design.
