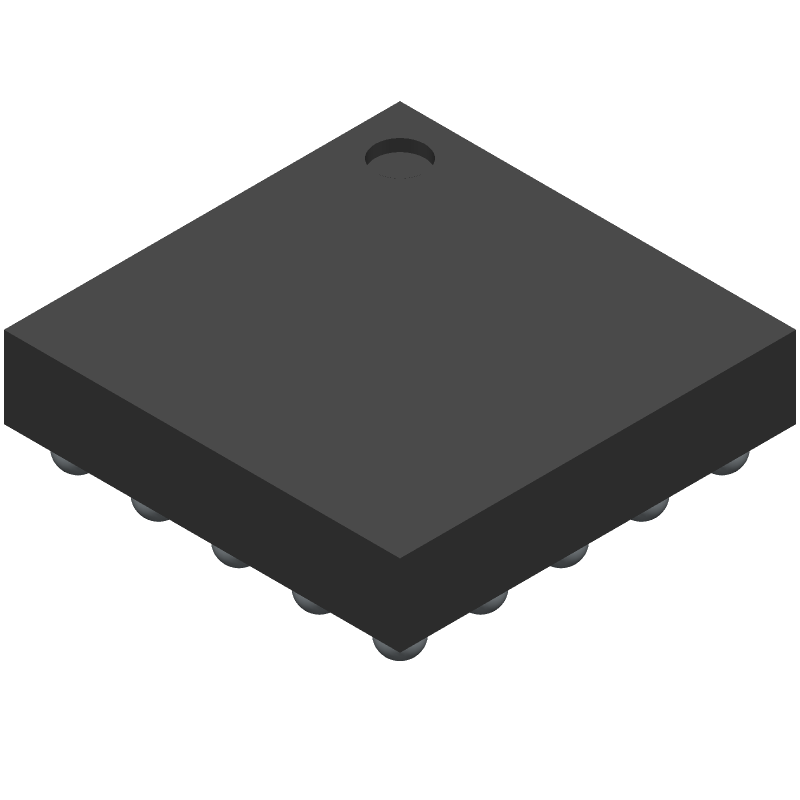

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTM4622AIV#PBF by Analog Devices Inc
Results Overview of LTM4622AIV#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LTM4622AIV#PBF Information
LTM4622AIV#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTM4622AIV#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK4301
|
Newark | Dc-Dc Converter, 1.5V-12V, 4A, Power Supply Applications:Ite & Industrial, Dc/Dc Converter Type:Lga-25, Micro Module, Output Power Max:-, Output Voltage Min:1.5V, Output Voltage Max:12V, Output Current Max:4A, Height:1.82Mm Rohs Compliant: Yes |Analog Devices LTM4622AIV#PBF RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 212 |
|
$14.0700 / $16.0500 | Buy Now |
|
DISTI #
LTM4622AIV#PBF-ND
|
DigiKey | DC DC CONVERTER 1.5-12V 1.5-12V Min Qty: 1 Lead time: 13 Weeks Container: Tray |
467 In Stock |
|
$13.8431 / $16.0500 | Buy Now |
|
DISTI #
584-LTM4622AIVPBF
|
Mouser Electronics | Switching Voltage Regulators Dual Ultrathin 2A or Single 4A Step-down RoHS: Compliant | 1234 |
|
$13.3100 / $15.4500 | Buy Now |
|
|
Analog Devices Inc | Dual Ultrathin 2A or Single 4A Package Multiple: 260 | 11014 |
|
$9.2600 / $16.0500 | Buy Now |
|
DISTI #
35218151
|
Verical | Dual Ultrathin 2A or Single 4A Step-Down DC/DC μModule Regulator Min Qty: 260 Package Multiple: 260 | Americas - 10920 |
|
$11.6478 | Buy Now |
|
DISTI #
LTM4622AIV#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 260 | 0 |
|
$11.9500 / $13.1200 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 7161 |
|
RFQ |
Part Details for LTM4622AIV#PBF
LTM4622AIV#PBF CAD Models
LTM4622AIV#PBF Part Data Attributes
|
|
LTM4622AIV#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM4622AIV#PBF
Analog Devices Inc
Dual Ultrathin 2A or Single 4A Step-Down DC/DC µModule Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LGA-25 | |
| Pin Count | 25 | |
| Manufacturer Package Code | 05-08-1949 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | DUAL SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 3.6 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-XBGA-B25 | |
| JESD-609 Code | e1 | |
| Length | 6.25 mm | |
| Moisture Sensitivity Level | 4 | |
| Number of Functions | 1 | |
| Number of Terminals | 25 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 4 A | |
| Output Voltage-Max | 12 V | |
| Output Voltage-Min | 1.5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | LGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.92 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1000 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BUTT | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.25 mm |
LTM4622AIV#PBF Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the LTM4622AIV#PBF is -40°C to 125°C.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 0.1Ω to 10Ω, and to place the output capacitor close to the output pin of the device.
-
The recommended input capacitor value for the LTM4622AIV#PBF is 10uF to 22uF, with an ESR of 0.1Ω to 10Ω, and a voltage rating of at least 2x the input voltage.
-
To reduce the noise and ripple in the output voltage, it is recommended to use a low-ESR output capacitor, add a noise-reducing capacitor (e.g. 10nF to 100nF) between the output pin and ground, and to use a shielded inductor.
-
The maximum current rating for the LTM4622AIV#PBF is 2A, but it can be limited by the thermal performance of the device and the PCB design.
