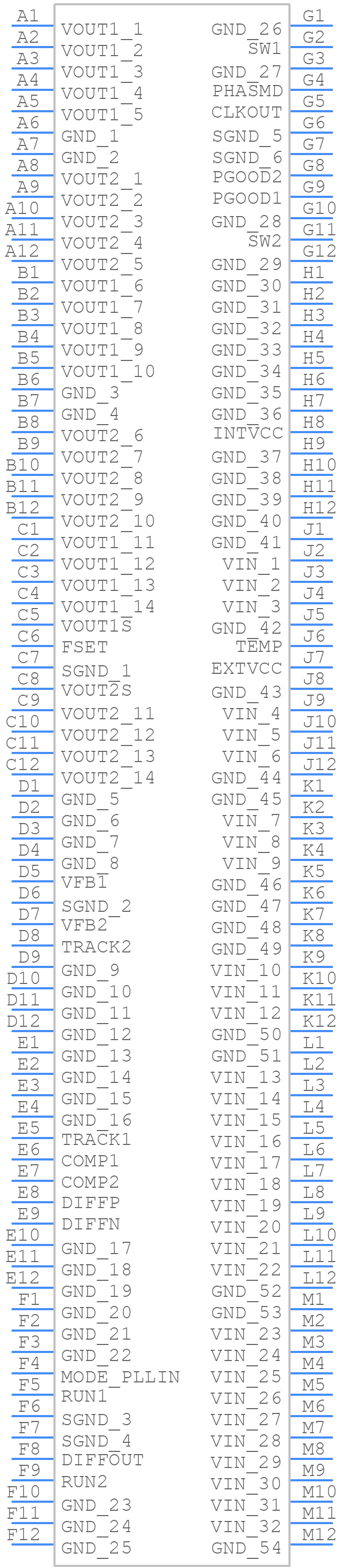

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTM4620AMPY#PBF by Analog Devices Inc
Results Overview of LTM4620AMPY#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTM4620AMPY#PBF Information
LTM4620AMPY#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTM4620AMPY#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTM4620AMPY#PBF-ND
|
DigiKey | DC DC CNVRTR 0.6-5.3V 0.6-5.3V Min Qty: 1 Lead time: 13 Weeks Container: Tray |
132 In Stock |
|
$113.1758 / $124.1500 | Buy Now |
|
DISTI #
584-LTM4620AMPYPBF
|
Mouser Electronics | Switching Voltage Regulators 2x 13A or 1x 26A DC/DC uModule Reg RoHS: Compliant | 0 |
|
$111.9400 / $119.5000 | Order Now |
|
|
Analog Devices Inc | 2x 13A or 1x 26A DC/DC µModule Package Multiple: 119 | 146 |
|
$75.0000 / $124.1500 | Buy Now |
|
DISTI #
35218114
|
Verical | Dual 13A or Single 26A DC/DC μModule (Power Module) Regulator Min Qty: 119 Package Multiple: 119 | Americas - 119 |
|
$91.0300 | Buy Now |
|
DISTI #
LTM4620AMPY#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 119 | 0 |
|
$96.8400 / $106.2500 | Buy Now |
Part Details for LTM4620AMPY#PBF
LTM4620AMPY#PBF CAD Models
LTM4620AMPY#PBF Part Data Attributes
|
|
LTM4620AMPY#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM4620AMPY#PBF
Analog Devices Inc
Dual 13A or Single 26A DC/DC µModule (Power Module) Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | BGA-144 | |
| Pin Count | 144 | |
| Manufacturer Package Code | 05-08-1880 | |
| Reach Compliance Code | not_compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ADJUSTABLE OUTPUT VOLTAGE FROM 0.6V TO 5.3V; ACTS AS SINGLE OR DUAL OUTPUT REGULATOR | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-PBGA-B144 | |
| JESD-609 Code | e1 | |
| Length | 15 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 144 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Equivalence Code | BGA144,12X12,50 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 245 | |
| Seated Height-Max | 5.21 mm | |
| Surface Mount | YES | |
| Switching Frequency-Max | 750 kHz | |
| Technology | HYBRID | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 15 mm |
Alternate Parts for LTM4620AMPY#PBF
This table gives cross-reference parts and alternative options found for LTM4620AMPY#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTM4620AMPY#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTM4620AEY#PBF | Analog Devices Inc | $58.7519 | Dual 13A or Single 26A DC/DC µModule (Power Module) Regulator | LTM4620AMPY#PBF vs LTM4620AEY#PBF |
| LTM4620AIY#PBF | Analog Devices Inc | $67.9153 | Dual 13A or Single 26A DC/DC µModule (Power Module) Regulator | LTM4620AMPY#PBF vs LTM4620AIY#PBF |
| LTM4620AIY | Analog Devices Inc | $95.1989 | Dual 13A or Single 26A DC/DC µModule (Power Module) Regulator | LTM4620AMPY#PBF vs LTM4620AIY |
| LTM4620AMPY | Linear Technology | Check for Price | LTM4620A - Dual 13A or Single 26A DC/DC µModule (Power Module) Regulator; Package: BGA; Pins: 144; Temperature Range: -55°C to 125°C | LTM4620AMPY#PBF vs LTM4620AMPY |
| LTM4620AIY | Linear Technology | Check for Price | LTM4620A - Dual 13A or Single 26A DC/DC µModule (Power Module) Regulator; Package: BGA; Pins: 144; Temperature Range: -40°C to 85°C | LTM4620AMPY#PBF vs LTM4620AIY |
LTM4620AMPY#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note (AN137) from Analog Devices provides additional guidance.
-
The output filter design depends on the specific application requirements. A good starting point is to use the recommended output filter components values provided in the datasheet. For more complex designs, Analog Devices provides a filter design tool that can help optimize the output filter components.
-
The maximum ambient temperature for reliable operation is 85°C, but this can be derated based on the specific application and thermal design. It's essential to ensure the device's junction temperature (TJ) stays below 125°C for reliable operation.
-
The LTM4620 has a specific power-up sequence and configuration requirements. Ensure that the input voltage is applied before the enable pin, and that the enable pin is driven high after the input voltage has reached its nominal value. Also, ensure that the output voltage is set correctly using the feedback resistors.
-
To ensure EMI and EMC compliance, it's essential to follow proper PCB layout and design guidelines, use shielding and filtering where necessary, and ensure that the device is properly decoupled. Additionally, Analog Devices provides application notes and guidance on EMI and EMC compliance for the LTM4620.
