LTH-010-01-G-D-A-K by: Samtec Inc

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug, ROHS COMPLIANT

Part Details for LTH-010-01-G-D-A-K by Samtec Inc

Results Overview of LTH-010-01-G-D-A-K by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Environmental Monitoring Internet of Things (IoT) Smart Cities Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Consumer Electronics Education and Research Security and Surveillance Aerospace and Defense Healthcare Robotics and Drones

LTH-010-01-G-D-A-K Information

LTH-010-01-G-D-A-K by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for LTH-010-01-G-D-A-K

Part # Distributor Description Stock Price Buy
DISTI # 05AK0695
Newark Board Connector, 20 Contact(S), 2 Row(S), Male, Straight, 0.02 Inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug |Samtec LTH-010-01-G-D-A-K RoHS: Not Compliant Min Qty: 12 Package Multiple: 1 Date Code: 0 Container: Bulk 84
  • 10 $9.0000
  • 25 $8.3400
  • 50 $7.7200
  • 100 $7.2400
  • 250 $6.8000
$6.8000 / $9.0000 Buy Now
DISTI # 3937-LTH-010-01-G-D-A-K-ND
DigiKey CONN HDR 20POS SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Tube MARKETPLACE PRODUCT 181
In Stock
  • 1 $6.7600
$6.7600 Buy Now
DISTI # SAM12690-ND
DigiKey CONN HDR 20POS SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Tube 14
In Stock
  • 1 $2.4800
  • 100 $2.3245
  • 250 $2.0995
  • 500 $1.8334
  • 1,000 $1.7401
  • 2,500 $1.6250
$1.6250 / $2.4800 Buy Now
DISTI # LTH-010-01-G-D-A-K
Avnet Americas Mezzanine Connector, Low-Profile, 0.5 mm, 2 Rows, 20 Contacts, Phosphor Bronze - Tape and Reel (Alt: LTH-010-01-G-D-A-K) RoHS: Compliant Min Qty: 1225 Package Multiple: 1225 Lead time: 1 Weeks, 0 Days Container: Reel 1224 Factory Stock
  • 1,225 $1.5769
  • 2,450 $1.5437
  • 4,900 $1.4145
  • 7,350 $1.2948
  • 9,800 $1.2768
$1.2768 / $1.5769 Buy Now
DISTI # LTH-010-01-G-D-A-K
Avnet Americas Mezzanine Connector, Low-Profile, Header, 0.5 mm, 2 Rows, 20 Contacts, Surface Mount - Rail/Tube (Alt: LTH-010-01-G-D-A-K) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 4 Days Container: Tube 0
  • 1 $2.4304
  • 10 $2.4180
  • 30 $2.0079
  • 50 $1.9975
  • 100 $1.9872
$1.9872 / $2.4304 Buy Now
DISTI # LTH-010-01-G-D-A-K
Avnet Americas - Tape and Reel (Alt: LTH-010-01-G-D-A-K) Min Qty: 1225 Package Multiple: 1225 Lead time: 111 Weeks, 0 Days Container: Reel 0
  • 1,225 $1.6202
  • 2,450 $1.5694
  • 4,900 $1.4190
  • 7,350 $1.2979
  • 9,800 $1.2566
$1.2566 / $1.6202 Buy Now
DISTI # 200-LTH01001GDAK
Mouser Electronics Board to Board & Mezzanine Connectors 0.50 mm Low Profile Blade & Beam Terminal Strip RoHS: Compliant 15
  • 1 $2.4800
  • 100 $2.3200
  • 264 $2.1000
  • 528 $1.8300
  • 1,056 $1.7400
  • 2,508 $1.5900
  • 5,016 $1.4900
$1.4900 / $2.4800 Buy Now
Onlinecomponents.com 0.50 mm Low Profile Blade & Beam Terminal Strip RoHS: Compliant 84 Partner Stock
  • 10 $2.5500
  • 100 $2.0700
  • 250 $1.9800
  • 500 $1.9200
  • 1,000 $1.7100
  • 2,500 $1.5600
  • 5,000 $1.4300
  • 7,500 $1.4100
$1.4100 / $2.5500 Buy Now
DISTI # 68408321
Verical Conn Low Profile Terminal Strip HDR 20 POS 0.5mm Solder ST SMD Tube RoHS: Compliant Min Qty: 12 Package Multiple: 1 Americas - 84
  • 12 $5.5100
$5.5100 Buy Now
DISTI # 5cd8fe31cd7c1c4c385201d9
Samtec 0.50 mm Low Profile Blade & Beam Terminal Strip RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 1 Days Container: Tube 0
  • 1 $2.4800
  • 100 $2.3200
  • 250 $2.1000
  • 500 $1.8300
  • 1,000 $1.7400
  • 2,500 $1.5900
  • 5,000 $1.3500
  • 10,000 $1.2700
$1.2700 / $2.4800 Buy Now
DISTI # LTH-010-01-G-D-A-K
IBS Electronics BOARD TO BOARD &amp, MEZZANINE CONNECTORS 0.50 MM LOW PROFILE BLADE &amp, BEAM TERMINAL STRIP Min Qty: 25 Package Multiple: 1 84
  • 25 $5.5125
$5.5125 Buy Now
DISTI # 000000000001321237
Sager Board to Board & Mezzanine Connectors 0.50 mm Low Profile Blade & Beam Terminal Strip Min Qty: 1 0
  • 1 $2.4800
  • 100 $2.3200
  • 250 $2.1000
  • 500 $1.8300
  • 1,000 $1.7400
  • 2,500 $1.5900
$1.5900 / $2.4800 Buy Now
Master Electronics 0.50 mm Low Profile Blade & Beam Terminal Strip RoHS: Compliant 84 Partner Stock
  • 10 $2.5500
  • 100 $2.0700
  • 250 $1.9800
  • 500 $1.9200
  • 1,000 $1.7100
  • 2,500 $1.5600
  • 5,000 $1.4300
  • 7,500 $1.4100
$1.4100 / $2.5500 Buy Now

Part Details for LTH-010-01-G-D-A-K

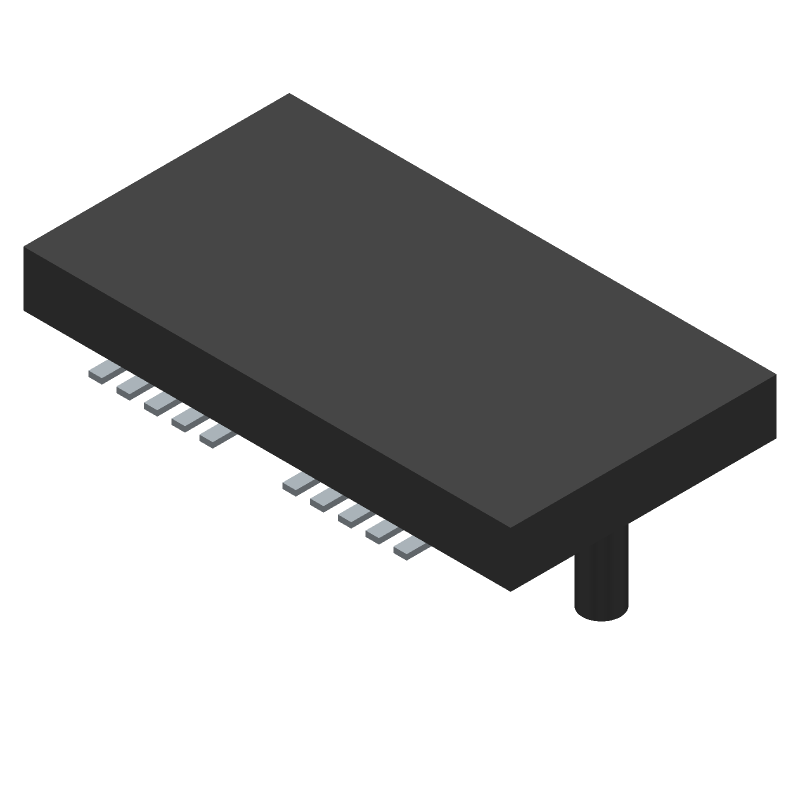

LTH-010-01-G-D-A-K CAD Models

  • Part Symbol

    Part Symbol

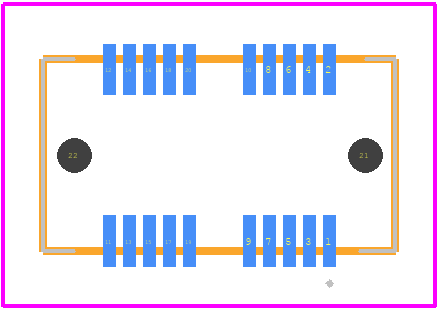

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LTH-010-01-G-D-A-K Part Data Attributes

Parametric Data
LTH-010-01-G-D-A-K Samtec Inc
Buy Now Datasheet
Compare Parts:
LTH-010-01-G-D-A-K Samtec Inc Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 2 Weeks, 4 Days
Samacsys Manufacturer SAMTEC
Additional Feature ROHS COMPLIANT
Board Mounting Option POSITIONING PIN
Body Breadth 0.189 inch
Body Depth 0.066 inch
Body Length 0.35 inch
Body/Shell Style PLUG
Connector Type BOARD STACKING CONNECTOR
Contact Finish Mating GOLD (10) OVER NICKEL (50)
Contact Finish Termination Gold (Au) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e4
MIL Conformance NO
Mating Contact Pitch 0.02 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 4.2926 mm
Plating Thickness 10u inch
Polarization Key POLARIZED HOUSING
Reference Standard UL
Terminal Pitch 0.5 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 20
