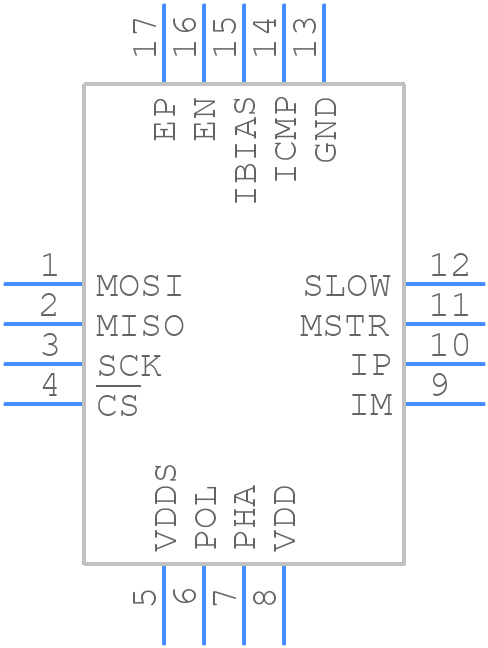

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC6820IUD#PBF by Analog Devices Inc
Results Overview of LTC6820IUD#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
LTC6820IUD#PBF Information
LTC6820IUD#PBF by Analog Devices Inc is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LTC6820IUD#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK3999
|
Newark | Spi Interface Ic, 5.5V, Qfn-Ep, Ic Interface Type:Spi, Interface Applications:Battery Monitoring Systems, Industrial Networking, Remote Sensors, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, Interface Case Style:Qfn-Ep Rohs Compliant: Yes |Analog Devices LTC6820IUD#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 127 |
|
$3.9900 / $6.5700 | Buy Now |
|
DISTI #
505-LTC6820IUD#PBF-ND
|
DigiKey | IC INTERFACE SPECIALIZED 16QFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
1725 In Stock |
|
$3.4625 / $8.1300 | Buy Now |
|
DISTI #
584-LTC6820IUD#PBF
|
Mouser Electronics | Interface - Specialized isoSPI Iso Communications Int RoHS: Compliant | 7817 |
|
$3.4600 / $8.1300 | Buy Now |
|
DISTI #
V99:2348_06499132
|
Arrow Electronics | Isolated Communications Interface 3.3V/5V 16-Pin QFN EP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2304 | Americas - 114 |
|
$3.5160 / $5.4820 | Buy Now |
|
|
Analog Devices Inc | isoSPI Iso Communications Int Package Multiple: 121 | 5306 |
|
$2.7700 / $8.1300 | Buy Now |
|
DISTI #
35216944
|
Verical | Isolated Communications Interface 3.3V/5V 16-Pin QFN EP Tube RoHS: Compliant Min Qty: 121 Package Multiple: 121 | Americas - 4477 |
|
$3.4261 | Buy Now |
|
DISTI #
LTC6820IUD#PBF
|
Richardson RFPD | INTERFACE - MISCELLANEOUS RoHS: Compliant Min Qty: 121 | 0 |
|
$3.5800 / $3.9300 | Buy Now |
Part Details for LTC6820IUD#PBF
LTC6820IUD#PBF CAD Models
LTC6820IUD#PBF Part Data Attributes
|
|
LTC6820IUD#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC6820IUD#PBF
Analog Devices Inc
isoSPI Isolated Communications Interface
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | QFN-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1700 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | S-PQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
