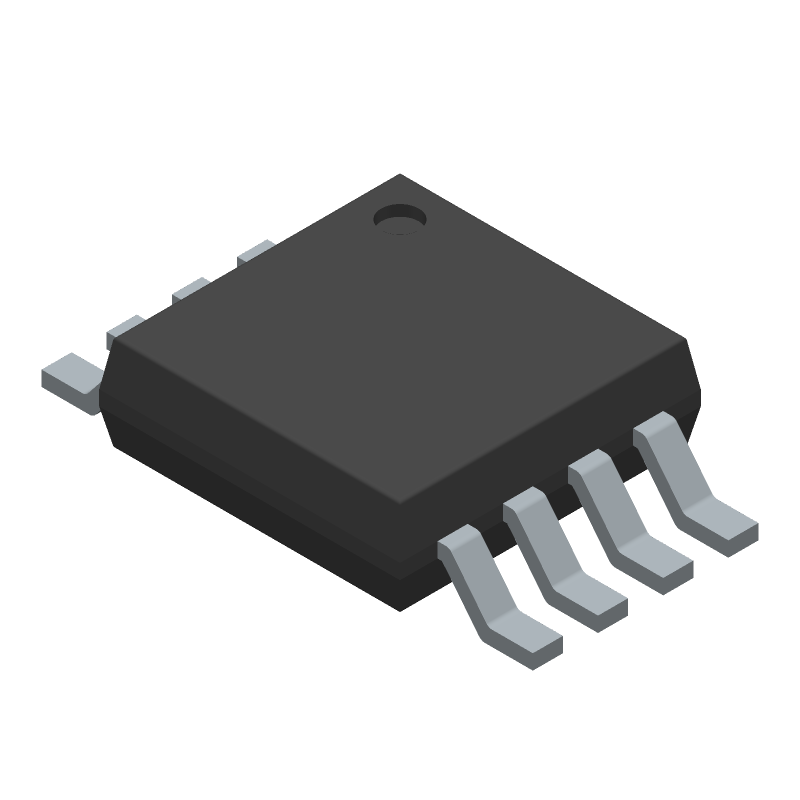

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1nV/√Hz 420MHz GBW, 180V/µs, Low Distortion Rail-to-Rail Output Op Amps
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LTC6227IMS8E#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
4021288
|
Farnell | OP-AMP, 420MHZ, -40 TO 85DEG C, MSOP-EP RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 127 |
|
$3.7458 / $8.7801 | Buy Now |
DISTI #
505-LTC6227IMS8E#PBF-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
149 In Stock |
|
Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
LTC6227IMS8E#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC6227IMS8E#PBF
Analog Devices Inc
1nV/√Hz 420MHz GBW, 180V/µs, Low Distortion Rail-to-Rail Output Op Amps
|
Pbfree Code | No | |
Rohs Code | Yes | |
Part Life Cycle Code | Obsolete | |
Ihs Manufacturer | ANALOG DEVICES INC | |
Package Description | MSOP-8 | |
Pin Count | 8 | |
Manufacturer Package Code | 05-08-1662 | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
HTS Code | 8542.33.00.01 | |
Date Of Intro | 2020-03-04 | |
Samacsys Manufacturer | Analog Devices | |
Amplifier Type | OPERATIONAL AMPLIFIER | |
Architecture | VOLTAGE-FEEDBACK | |
Bandwidth (3dB)-Nom | 330 MHz | |
Common-mode Reject Ratio-Min | 95 dB | |
Common-mode Reject Ratio-Nom | 114 dB | |
Frequency Compensation | YES | |
Input Offset Current-Max (IIO) | 0.5 µA | |
Input Offset Voltage-Max | 225 µV | |
JESD-30 Code | S-PDSO-G8 | |
Length | 3 mm | |
Low-Offset | YES | |
Micropower | NO | |
Neg Supply Voltage Limit-Max | -6 V | |
Neg Supply Voltage-Nom (Vsup) | -5 V | |
Number of Functions | 2 | |
Number of Terminals | 8 | |
Operating Temperature-Max | 85 °C | |
Operating Temperature-Min | -40 °C | |
Package Body Material | PLASTIC/EPOXY | |
Package Code | HTSSOP | |
Package Equivalence Code | TSSOP8,.25 | |
Package Shape | SQUARE | |
Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
Power | NO | |
Programmable Power | NO | |
Seated Height-Max | 1.1 mm | |
Slew Rate-Min | 90 V/us | |
Slew Rate-Nom | 180 V/us | |
Supply Current-Max | 15.2 mA | |
Supply Voltage Limit-Max | 6 V | |
Supply Voltage-Nom (Vsup) | 5 V | |
Surface Mount | YES | |
Technology | CMOS | |
Temperature Grade | INDUSTRIAL | |
Terminal Form | GULL WING | |
Terminal Pitch | 0.65 mm | |
Terminal Position | DUAL | |
Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
Unity Gain BW-Nom | 420000 | |
Voltage Gain-Min | 44668.36 | |
Wideband | YES | |
Width | 3 mm |
This table gives cross-reference parts and alternative options found for LTC6227IMS8E#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC6227IMS8E#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Manufacturer | Composite Price | Description | Compare |
---|---|---|---|---|
LTC6227HDD#PBF | Analog Devices Inc | $4.0164 | 1nV/√Hz 420MHz GBW, 180V/µs, Low Distortion Rail-to-Rail Output Op Amps | LTC6227IMS8E#PBF vs LTC6227HDD#PBF |
LTC6227HMS8E#PBF | Analog Devices Inc | $4.8818 | 1nV/√Hz 420MHz GBW, 180V/µs, Low Distortion Rail-to-Rail Output Op Amps | LTC6227IMS8E#PBF vs LTC6227HMS8E#PBF |
LMH6626MM/NOPB | Texas Instruments | $6.5434 | Single/ Dual Ultra Low Noise Wideband Operational Amplifier 8-VSSOP -40 to 125 | LTC6227IMS8E#PBF vs LMH6626MM/NOPB |
LTC6227IMS8E#TRPBF | Analog Devices Inc | Check for Price | 1nV/√Hz 420MHz GBW, 180V/µs, Low Distortion Rail-to-Rail Output Op Amps | LTC6227IMS8E#PBF vs LTC6227IMS8E#TRPBF |
LTC6227IDD#TRPBF | Analog Devices Inc | Check for Price | 1nV/√Hz 420MHz GBW, 180V/µs, Low Distortion Rail-to-Rail Output Op Amps | LTC6227IMS8E#PBF vs LTC6227IDD#TRPBF |
LMH6626MMX | Texas Instruments | Check for Price | DUAL OP-AMP, 950uV OFFSET-MAX, 1300MHz BAND WIDTH, PDSO8, PLASTIC, VSSOP-8 | LTC6227IMS8E#PBF vs LMH6626MMX |
LMH6626MM | Texas Instruments | Check for Price | DUAL OP-AMP, 950uV OFFSET-MAX, 1300MHz BAND WIDTH, PDSO8, PLASTIC, VSSOP-8 | LTC6227IMS8E#PBF vs LMH6626MM |
LMH6626MMX/NOPB | Texas Instruments | Check for Price | Single/ Dual Ultra Low Noise Wideband Operational Amplifier 8-VSSOP -40 to 125 | LTC6227IMS8E#PBF vs LMH6626MMX/NOPB |
A good PCB layout for the LTC6227 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer board with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides a recommended layout diagram, but it's also a good idea to consult with experienced PCB designers and perform simulations to ensure optimal performance.
The choice of input and output capacitors for the LTC6227 depends on the specific application requirements, such as the input voltage range, output current, and desired ripple voltage. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also a good idea to consult with capacitor manufacturers and perform simulations to ensure the chosen capacitors meet the application requirements.
The LTC6227 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's important to ensure that the device is properly heatsinked and that the ambient temperature is within the specified range to ensure reliable operation.
To ensure stability and prevent oscillation, it's important to follow the recommended layout and component selection guidelines in the datasheet. Additionally, the input and output capacitors should be chosen to ensure that the device is stable over the entire operating range. The datasheet provides some guidance on stability analysis, but it's also a good idea to perform simulations and consult with experienced designers to ensure stability.
The typical startup time for the LTC6227 is around 100μs, but this can vary depending on the specific application and component values. The datasheet provides some guidance on startup time, but it's also a good idea to consult with experienced designers and perform simulations to ensure that the startup time meets the application requirements.
