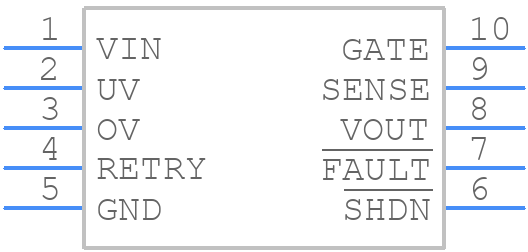

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC4368HMS-2#PBF by Analog Devices Inc
Results Overview of LTC4368HMS-2#PBF by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Renewable Energy
LTC4368HMS-2#PBF Information
LTC4368HMS-2#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC4368HMS-2#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK3629
|
Newark | Reverse Protection Controller, 50Mv, Battery Type:-, Battery Protection:Over/Under Voltage And Reverse Protection, No. Of Cells:-, Shutdown Current:5Μa, Ic Case/Package:Msop, No. Of Pins:10Pins, Supply Voltage Min:2.5V Rohs Compliant: Yes |Analog Devices LTC4368HMS-2#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$4.3100 / $7.1400 | Buy Now |
|
DISTI #
505-LTC4368HMS-2#PBF-ND
|
DigiKey | IC SURGE SUPPRESSION ADJ 10MSOP Min Qty: 1 Lead time: 20 Weeks Container: Tube | Temporarily Out of Stock |
|
$3.8000 / $8.7100 | Buy Now |
|
DISTI #
584-LTC4368HMS2PBF
|
Mouser Electronics | Board Mount Surge Protectors 100V UV/OV & Reverse Prot Cntr w/ Bi-dir RoHS: Compliant | 0 |
|
$4.1200 / $8.5700 | Order Now |
|
|
Analog Devices Inc | 100V UV/OV & Reverse Prot Cntr Package Multiple: 50 | 0 |
|
$3.0400 / $8.7100 | Buy Now |
|
|
Bristol Electronics | 100 |
|
RFQ | ||
|
|
NexGen Digital | 907 |
|
RFQ | ||
|
DISTI #
LTC4368HMS-2PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 150 | 0 |
|
$3.9300 / $4.3000 | Buy Now |
|
|
Flip Electronics | Stock | 2500 |
|
RFQ | |
|
|
Win Source Electronics | LTC4368 - 100V UV/OV and Reverse Protection Controller with Bidirectional Circuit Breaker | 2250 |
|
$8.0363 / $12.0543 | Buy Now |
Part Details for LTC4368HMS-2#PBF
LTC4368HMS-2#PBF CAD Models
LTC4368HMS-2#PBF Part Data Attributes
|
|
LTC4368HMS-2#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC4368HMS-2#PBF
Analog Devices Inc
100V UV/OV and Reverse Protection Controller with Bidirectional Circuit Breaker
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | SOP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 05-08-1661 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max (Isup) | 0.1 mA | |
| Supply Voltage-Max (Vsup) | 60 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Width | 3 mm |
