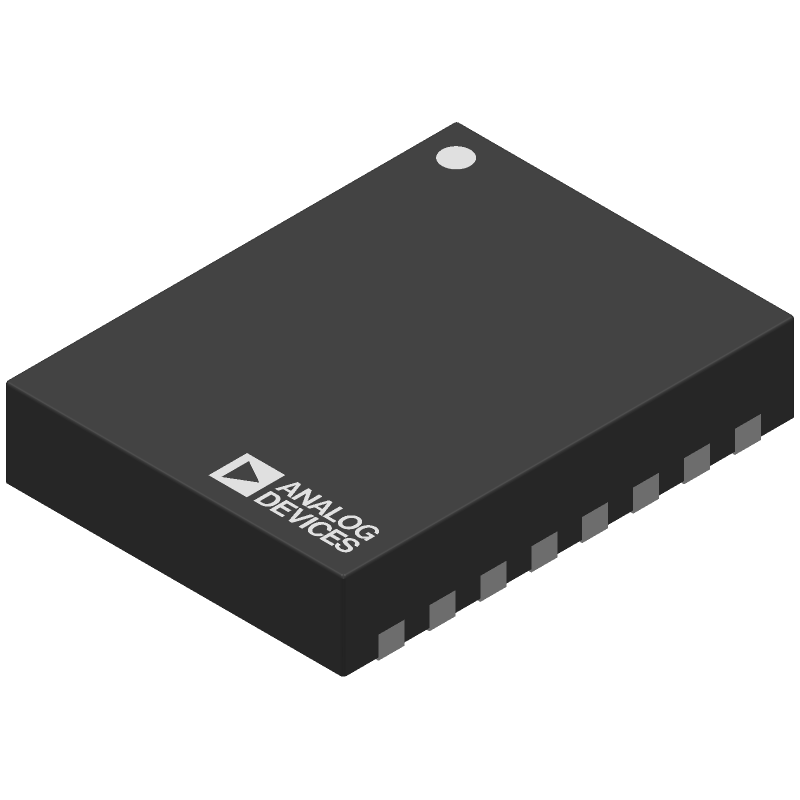

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC4353IDE#PBF by Analog Devices Inc
Results Overview of LTC4353IDE#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTC4353IDE#PBF Information
LTC4353IDE#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC4353IDE#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7188
|
Newark | Ideal Diode Controller, Dfn-Ep-16, Ic Function:Ideal Diode Controller, Supply Voltage Min:2.9V, Supply Voltage Max:18V, Ic Package Type:Dfn-Ep, No. Of Pins:16Pins, Operating Temperature Min:-40°C, Operating Temperature Max:85°C Rohs Compliant: Yes |Analog Devices LTC4353IDE#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$6.1300 / $10.6400 | Buy Now |
|
DISTI #
LTC4353IDE#PBF-ND
|
DigiKey | IC OR CTRLR LOAD SHARE 16DFN Min Qty: 1 Lead time: 26 Weeks Container: Tube |
1345 In Stock |
|
$5.9000 / $12.0800 | Buy Now |
|
DISTI #
584-LTC4353IDE#PBF
|
Mouser Electronics | Power Management Specialized - PMIC 2x L V Ideal Diode Cntr RoHS: Compliant | 8770 |
|
$5.9000 / $10.6400 | Buy Now |
|
|
Analog Devices Inc | 2x L V Ideal Diode Cntr Package Multiple: 91 | 269 |
|
$4.7200 / $12.0800 | Buy Now |
|
DISTI #
LTC4353IDE#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 91 | 0 |
|
$6.0900 / $7.0800 | Buy Now |
Part Details for LTC4353IDE#PBF
LTC4353IDE#PBF CAD Models
LTC4353IDE#PBF Part Data Attributes
|
|
LTC4353IDE#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC4353IDE#PBF
Analog Devices Inc
Dual Low Voltage Ideal Diode Controller
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 4 X 3 MM, LEAD FREE, PLASTIC, MO-220WGED-3, DFN-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1732 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | R-PDSO-N16 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 2.9 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.45 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
LTC4353IDE#PBF Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the LTC4353IDE#PBF is -40°C to 125°C.
-
To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and ensure that the input voltage is within the recommended range.
-
For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, and ensure good thermal conductivity and heat dissipation around the device.
-
To troubleshoot issues, refer to the datasheet and application notes for troubleshooting guidelines, and use tools such as oscilloscopes and logic analyzers to debug the system.
-
Yes, follow the recommended EMI/EMC guidelines in the datasheet, and ensure proper shielding, grounding, and layout to minimize electromagnetic interference.
