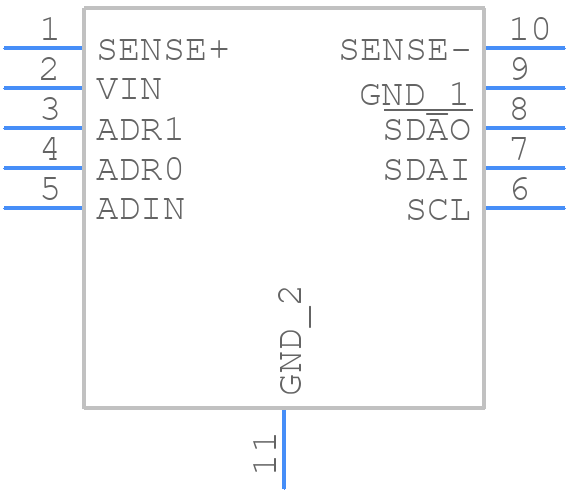

Part Symbol
-
Footprint
-

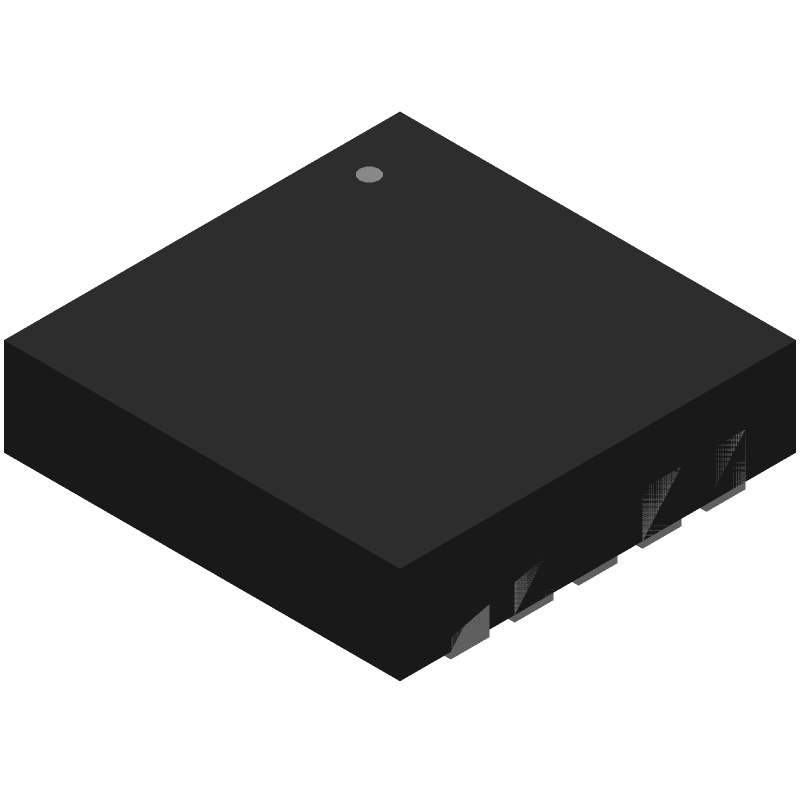

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC4151CDD-1#PBF by Analog Devices Inc
Results Overview of LTC4151CDD-1#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
LTC4151CDD-1#PBF Information
LTC4151CDD-1#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC4151CDD-1#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-LTC4151CDD-1#PBF-ND
|
DigiKey | IC CURRENT MONITOR(12BIT) 10DFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
201 In Stock |
|
$3.9250 / $8.9200 | Buy Now |
|
DISTI #
584-LTC4151CDD-1#PBF
|
Mouser Electronics | Current & Power Monitors & Regulators Hi V I2C C & V Mon RoHS: Compliant | 0 |
|
$4.2000 / $7.3500 | Order Now |
|
|
Analog Devices Inc | Hi V I2C C & V Mon Package Multiple: 121 | 2098 |
|
$3.1400 / $8.9200 | Buy Now |
|
DISTI #
35243543
|
Verical | SP Amp Current Sense Amp Single 80V 10-Pin DFN EP Tube RoHS: Compliant Min Qty: 121 Package Multiple: 121 | Americas - 2057 |
|
$3.9497 | Buy Now |
|
DISTI #
LTC4151CDD-1PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 121 | 0 |
|
$4.0500 / $4.4500 | Buy Now |
Part Details for LTC4151CDD-1#PBF
LTC4151CDD-1#PBF CAD Models
LTC4151CDD-1#PBF Part Data Attributes
|
|
LTC4151CDD-1#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC4151CDD-1#PBF
Analog Devices Inc
High Voltage I<sup>2</sup>C Current and Voltage Monitor
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 05-08-1699 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 80 V | |
| Supply Voltage-Min (Vsup) | 7 V | |
| Supply Voltage-Nom (Vsup) | 48 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LTC4151CDD-1#PBF
This table gives cross-reference parts and alternative options found for LTC4151CDD-1#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC4151CDD-1#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC4151IDD-1#PBF | Analog Devices Inc | $5.0388 | High Voltage I2C Current and Voltage Monitor | LTC4151CDD-1#PBF vs LTC4151IDD-1#PBF |
| LTC4151IDD-1#TRPBF | Analog Devices Inc | Check for Price | High Voltage I2C Current and Voltage Monitor | LTC4151CDD-1#PBF vs LTC4151IDD-1#TRPBF |
| LTC4151IDD-1#PBF | Linear Technology | Check for Price | LTC4151 - High Voltage I2C Current and Voltage Monitor; Package: DFN; Pins: 10; Temperature Range: -40°C to 85°C | LTC4151CDD-1#PBF vs LTC4151IDD-1#PBF |
LTC4151CDD-1#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC4151CDD-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise and interference.
-
The selection of input and output capacitors for the LTC4151CDD-1#PBF depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended for the input and output capacitors. The capacitance value should be chosen based on the desired output voltage ripple and transient response.
-
The LTC4151CDD-1#PBF has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
-
The LTC4151CDD-1#PBF has a programmable output voltage feature that can be set using an external resistor divider network. The output voltage can be programmed by connecting a resistor divider network between the VOUT pin and the GND pin, and the desired output voltage can be calculated using the formula provided in the datasheet.
-
The LTC4151CDD-1#PBF has a maximum input voltage range of 36V. However, the device can operate with input voltages as low as 2.9V, making it suitable for a wide range of applications.
