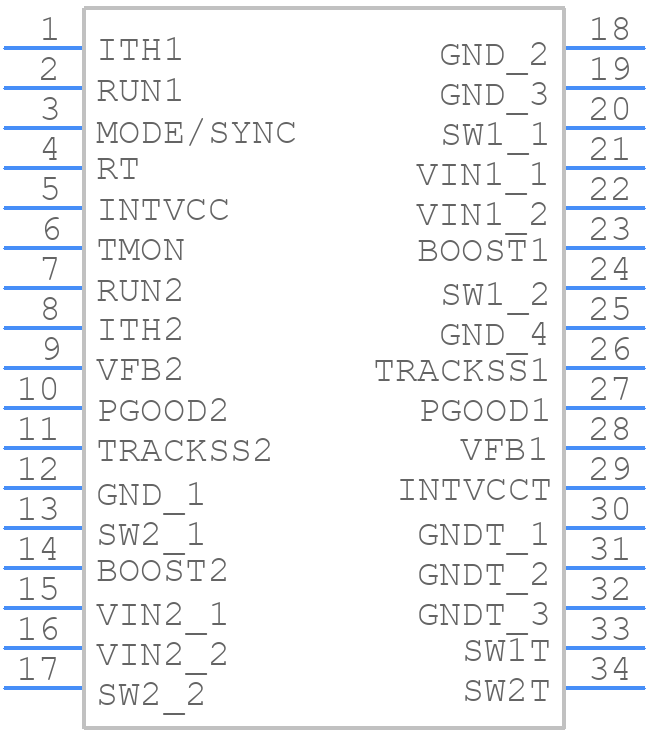

Part Symbol
-

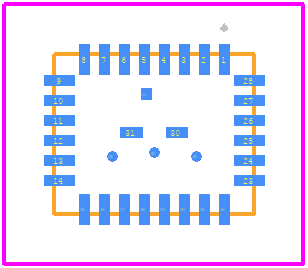

Footprint
-

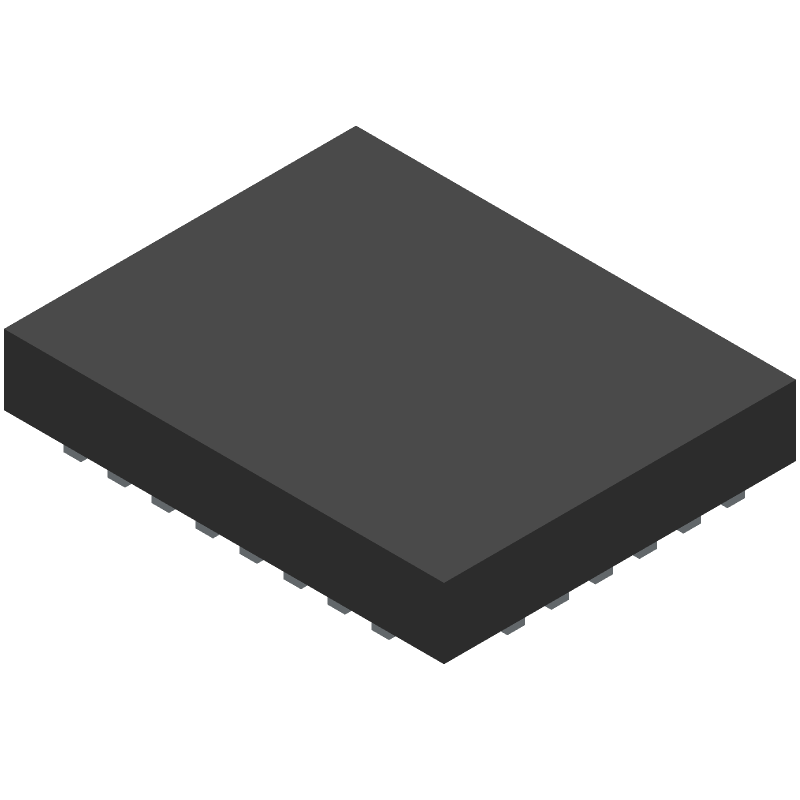

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC3636EUFD#TRPBF by Analog Devices Inc
Results Overview of LTC3636EUFD#TRPBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTC3636EUFD#TRPBF Information
LTC3636EUFD#TRPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3636EUFD#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK3155
|
Newark | Dc/Dc Conv, Sync Buck, 4Mhz, 125Deg C, No. Of Outputs:2Outputs, Topology:Synchronous Buck (Step Down), Input Voltage Min:3.1V, Input Voltage Max:20V, Max Output Current:6A, Ic Case/Package:Qfn-Ep, No. Of Pins:28Pins, Efficiency:95%rohs Compliant: Yes |Analog Devices LTC3636EUFD#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2485 |
|
$6.9200 / $11.8400 | Buy Now |
|
DISTI #
LTC3636EUFD#TRPBFCT-ND
|
DigiKey | IC REG BUCK ADJ 6A DL 28QFN Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3644 In Stock |
|
$6.6375 / $13.2000 | Buy Now |
|
DISTI #
584-3636EUFDTRPBF
|
Mouser Electronics | Switching Voltage Regulators 2x Ch 6A, 20V Mono Sync Buck Reg RoHS: Compliant | 1890 |
|
$6.6300 / $11.8400 | Buy Now |
|
|
Analog Devices Inc | 2x Ch 6A, 20V Mono Sync Buck R Min Qty: 1 Package Multiple: 2500 | 729 |
|
$5.3100 / $13.2000 | Buy Now |
|
DISTI #
LTC3636EUFDTRPB
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 2500 | 0 |
|
$6.8500 / $7.1300 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 6A DL 28QFN / Buck Switching Regulator IC Positive Adjustable 0.6V 2 Output 6A 28-WFQFN Exposed Pad | 9146 |
|
$9.5804 / $14.3705 | Buy Now |
Part Details for LTC3636EUFD#TRPBF
LTC3636EUFD#TRPBF CAD Models
LTC3636EUFD#TRPBF Part Data Attributes
|
|
LTC3636EUFD#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3636EUFD#TRPBF
Analog Devices Inc
LTC3636EUFD#TRPBF
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | QFN-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 05-08-1538 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO OPERATES WITH VIN2 1.5V TO 20V; OUTPUT VOLTAGE RANGE FROM 0.6V TO 5V | |
| Analog IC - Other Type | DUAL SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PHASE-SHIFT CONTROL | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 3.1 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PQCC-N28 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 7.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 4000 kHz | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
LTC3636EUFD#TRPBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the internal components.
-
To minimize EMI and noise, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW pin) away from sensitive analog nodes.
-
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. X5R or X7R dielectric types are suitable for this application.
-
The inductor value and type depend on the specific application requirements. A good starting point is to use an inductor with a value between 1uH to 10uH and a saturation current rating above the peak current of the converter. Shielded inductors with a low DCR (e.g., 100mΩ) are recommended.
-
The maximum output current that the LTC3636EUFD#TRPBF can deliver is 3A, but it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
