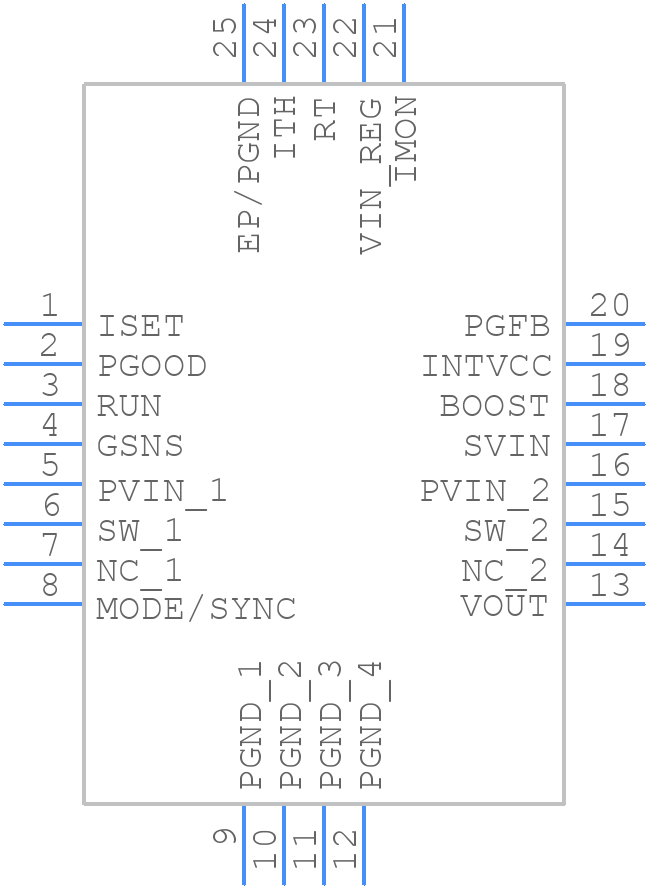

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC3623EUDD#PBF by Analog Devices Inc
Results Overview of LTC3623EUDD#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Renewable Energy
Robotics and Drones
LTC3623EUDD#PBF Information
LTC3623EUDD#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3623EUDD#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK3118
|
Newark | Dc/Dc Conv, Sync Buck, 4Mhz, 125Deg C, No. Of Outputs:1Outputs, Topology:Synchronous Buck (Step Down), Input Voltage Min:4V, Input Voltage Max:15V, Max Output Current:5A, Ic Case/Package:Qfn-Ep, No. Of Pins:24Pins, Efficiency:96% Rohs Compliant: Yes |Analog Devices LTC3623EUDD#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$6.7500 / $10.6400 | Buy Now |
|
DISTI #
505-LTC3623EUDD#PBF-ND
|
DigiKey | IC REG BUCK ADJ 5A 24QFN Min Qty: 1 Lead time: 33 Weeks Container: Tube | Temporarily Out of Stock |
|
$5.9000 / $12.0800 | Buy Now |
|
DISTI #
584-LTC3623EUDD#PBF
|
Mouser Electronics | Switching Voltage Regulators 15V, 5A Rail-to-Rail Synchronous Buck Regulator RoHS: Compliant | 0 |
|
$5.9600 / $12.0800 | Order Now |
|
|
Analog Devices Inc | 15V, ±5A R2R Sync Buck Reg Package Multiple: 73 | 0 |
|
$4.7200 / $12.0800 | Buy Now |
|
DISTI #
LTC3623EUDD#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 73 | 0 |
|
$6.0900 / $7.0800 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 49 |
|
RFQ |
Part Details for LTC3623EUDD#PBF
LTC3623EUDD#PBF CAD Models
LTC3623EUDD#PBF Part Data Attributes
|
|
LTC3623EUDD#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3623EUDD#PBF
Analog Devices Inc
15V, ±5A Rail-to-Rail Synchronous Buck Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | QFN-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | 05-08-1833 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO REQUIRED 1.5V TO 15V SUPPLY; OPERATES IN ADJUSTABLE MODE FROM 1.5V TO 15V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 15 V | |
| Input Voltage-Min | 4 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PQCC-N24 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 7.4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC24,.12X.2,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 4000 kHz | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 3 mm |
LTC3623EUDD#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the internal components.
-
To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
-
The EN (enable) pin is used to turn the regulator on or off. To turn the regulator on, connect the EN pin to VIN or a logic high signal. To turn the regulator off, connect the EN pin to GND or a logic low signal.
-
The output voltage of the regulator can be calculated using the formula: VOUT = 0.6V x (R1/R2) + 0.6V, where R1 and R2 are the resistors connected to the FB (feedback) pin.
-
The maximum output current that the regulator can provide is 3A, but it's recommended to keep the output current below 2.5A for optimal performance and to prevent overheating.
