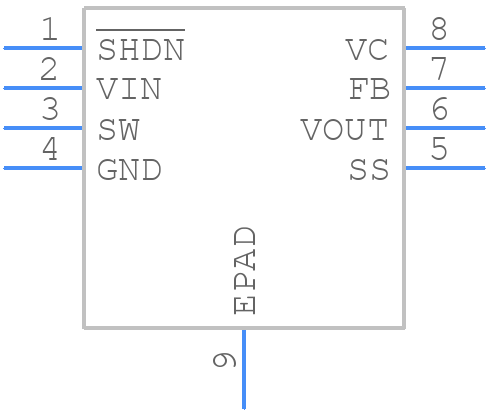

Part Symbol
-
Footprint
-

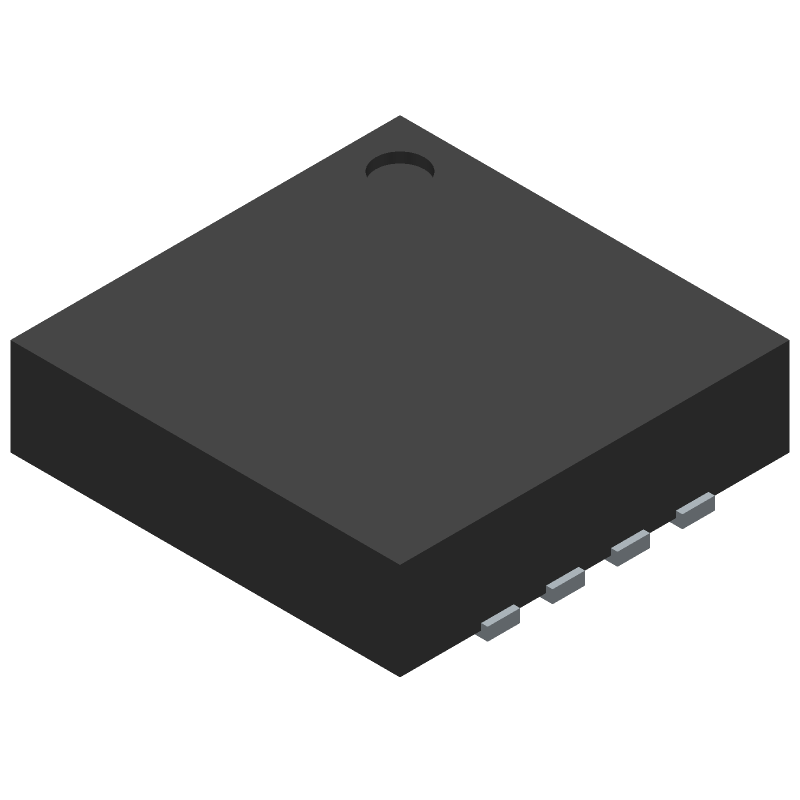

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC3499BEDD#PBF by Analog Devices Inc
Results Overview of LTC3499BEDD#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTC3499BEDD#PBF Information
LTC3499BEDD#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3499BEDD#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2997
|
Newark | Dc-Dc Converter, Adj, 2V To 6V, Dfn-Ep, No. Of Outputs:1Outputs, Topology:Synchronous Boost (Step Up), Input Voltage Min:1.6V, Input Voltage Max:5.5V, Max Output Current:750Ma, Ic Case/Package:Dfn-Ep, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices LTC3499BEDD#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 17 |
|
$3.4300 / $6.2000 | Buy Now |
|
DISTI #
LTC3499BEDD#PBF-ND
|
DigiKey | IC REG BOOST ADJ 750MA 8DFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
428 In Stock |
|
$3.2500 / $7.7600 | Buy Now |
|
DISTI #
584-LTC3499BEDD#PBF
|
Mouser Electronics | Switching Voltage Regulators 750mA Sync Boost DC/DC Convs w/ Reverse- RoHS: Compliant | 128 |
|
$3.3700 / $6.2000 | Buy Now |
|
|
Analog Devices Inc | 750mA Sync Boost DC/DC Convs w Package Multiple: 121 | 86 |
|
$2.6000 / $7.7600 | Buy Now |
|
DISTI #
LTC3499BEDDPBF
|
TME | PMIC, DC/DC converter, Uin: 1.6÷5.5VDC, Uout: 2÷6VDC, 0.75A, DFN8 Min Qty: 1 | 0 |
|
$4.1600 / $4.8100 | RFQ |
|
DISTI #
LTC3499BEDD#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 121 | 0 |
|
$3.3600 / $3.6800 | Buy Now |
Part Details for LTC3499BEDD#PBF
LTC3499BEDD#PBF CAD Models
LTC3499BEDD#PBF Part Data Attributes
|
|
LTC3499BEDD#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3499BEDD#PBF
Analog Devices Inc
750mA Synchronous Step-Up DC/DC Converters with Reverse-Battery Protection
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 3 X 3 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1698 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO OPERATES IN ADJUSTABLE MODE FROM 2 TO 6V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 1.8 V | |
| Input Voltage-Nom | 2.4 V | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 1400 kHz | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
