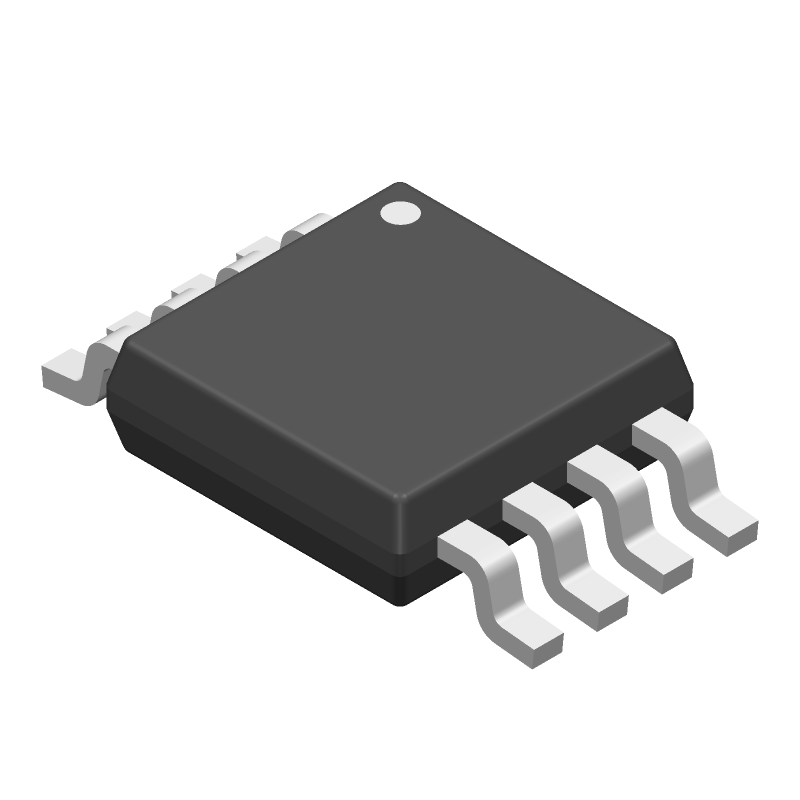

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC3404EMS8#PBF by Analog Devices Inc
Results Overview of LTC3404EMS8#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
LTC3404EMS8#PBF Information
LTC3404EMS8#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3404EMS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6812
|
Newark | Dc/Dc Conv, Sync Buck, 1.4Mhz, 85Deg C, No. Of Outputs:1Outputs, Topology:Synchronous Buck (Step Down), Input Voltage Min:2.65V, Input Voltage Max:6V, Max Output Current:600Ma, Ic Case/Package:Msop, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices LTC3404EMS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 29 |
|
$4.4000 / $7.8800 | Buy Now |
|
DISTI #
505-LTC3404EMS8#PBF-ND
|
DigiKey | IC REG BUCK ADJ 600MA 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
202 In Stock |
|
$4.2375 / $9.4400 | Buy Now |
|
DISTI #
584-LTC3404EMS8#PBF
|
Mouser Electronics | Switching Voltage Regulators 1.4MHz Hi Eff Mono Sync Buck Reg RoHS: Compliant | 439 |
|
$4.4000 / $7.8800 | Buy Now |
|
|
Analog Devices Inc | 1.4MHz Hi Eff Mono Sync Buck R Package Multiple: 50 | 3541 |
|
$3.3900 / $9.4400 | Buy Now |
|
DISTI #
LTC3404EMS8#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 100 | 0 |
|
$4.3800 / $4.8000 | Buy Now |
Part Details for LTC3404EMS8#PBF
LTC3404EMS8#PBF CAD Models
LTC3404EMS8#PBF Part Data Attributes
|
|
LTC3404EMS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3404EMS8#PBF
Analog Devices Inc
1.4MHz High Efficiency Monolithic Synchronous Step-Down Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1660 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 2.65 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 1.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1650 kHz | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL EXTENDED | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LTC3404EMS8#PBF
This table gives cross-reference parts and alternative options found for LTC3404EMS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC3404EMS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC3404MPMS8#TRPBF | Analog Devices Inc | Check for Price | 1.4MHz High Efficiency Monolithic Synchronous Step-Down Regulator | LTC3404EMS8#PBF vs LTC3404MPMS8#TRPBF |
| LTC3404IMS8#TR | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 1.5A, 1650kHz Switching Freq-Max, CMOS, PDSO8 | LTC3404EMS8#PBF vs LTC3404IMS8#TR |
| LTC3404MPMS8 | Linear Technology | Check for Price | LTC3404 - 1.4MHz High Efficiency Monolithic Synchronous Step-Down Regulator; Package: MSOP; Pins: 8; Temperature Range: -55°C to 125°C | LTC3404EMS8#PBF vs LTC3404MPMS8 |
| LTC3404IMS8#PBF | Linear Technology | Check for Price | LTC3404 - 1.4MHz High Efficiency Monolithic Synchronous Step-Down Regulator; Package: MSOP; Pins: 8; Temperature Range: -40°C to 85°C | LTC3404EMS8#PBF vs LTC3404IMS8#PBF |
LTC3404EMS8#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LTC3404EMS8 is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.
-
To ensure the stability of the output voltage, it's essential to use a minimum output capacitance of 10uF, and to keep the output voltage within the recommended range of 0.8V to 5.5V.
-
The maximum output current that the LTC3404EMS8 can deliver is 1.5A, but it's recommended to keep it below 1A for optimal performance and to prevent overheating.
-
To reduce the noise and ripple in the output voltage, it's recommended to use a low-ESR output capacitor, and to add a noise-reducing capacitor (e.g., 10nF) between the VOUT and GND pins.
-
The thermal shutdown temperature of the LTC3404EMS8 is 150°C, and it will automatically shut down if the junction temperature exceeds this value.
