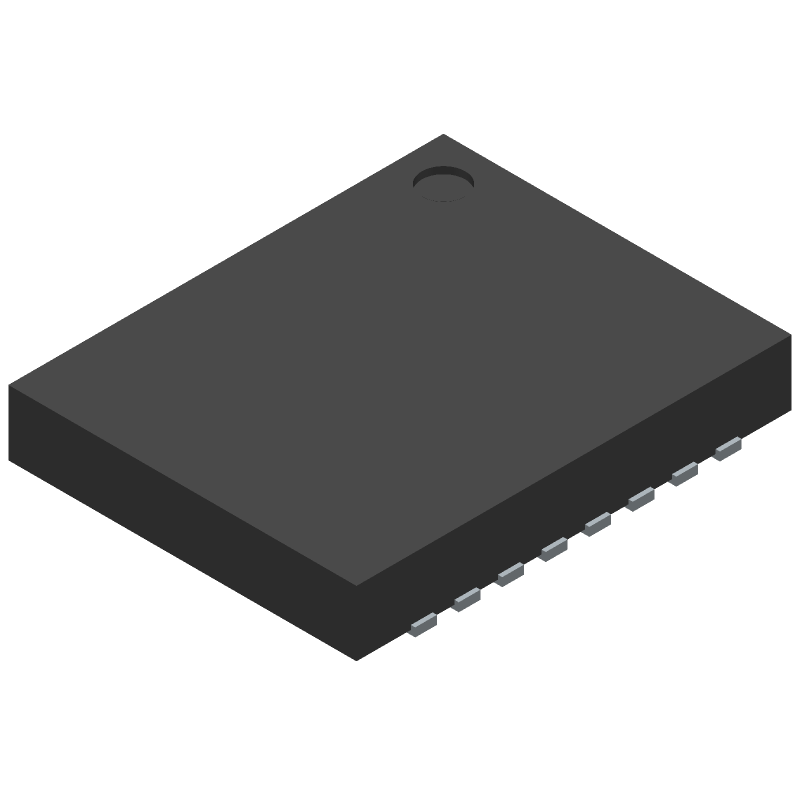

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC3115IDHD-1#WTRPBF by Analog Devices Inc
Results Overview of LTC3115IDHD-1#WTRPBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
LTC3115IDHD-1#WTRPBF Information
LTC3115IDHD-1#WTRPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3115IDHD-1#WTRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
161-LTC3115IDHD-1#WTRPBFTR-ND
|
DigiKey | IC REG BUCK BST ADJ 1A/2A 16DFN Min Qty: 2500 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$9.0250 | Buy Now |
|
DISTI #
584-TC3115IDHD1WTRPB
|
Mouser Electronics | Switching Voltage Regulators 40V, 2A Sync Buck-Boost DC/DC Conv RoHS: Compliant | 0 |
|
$9.0200 | Order Now |
|
|
Analog Devices Inc | 40V, 2A Sync Buck-Boost DC/DC Min Qty: 2500 Package Multiple: 2500 | 0 |
|
$7.2200 / $11.4200 | Buy Now |
|
DISTI #
LTC3115I1WTRPBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 2500 | 0 |
|
$9.3200 / $9.6900 | Buy Now |
|
|
Vyrian | Peripheral ICs | 327 |
|
RFQ |
Part Details for LTC3115IDHD-1#WTRPBF
LTC3115IDHD-1#WTRPBF CAD Models
LTC3115IDHD-1#WTRPBF Part Data Attributes
|
|
LTC3115IDHD-1#WTRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3115IDHD-1#WTRPBF
Analog Devices Inc
40V, 2A Synchronous Buck-Boost DC/DC Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | DFN-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1707 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 40 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PDSO-N16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 3.7 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC16,.16,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 2000 kHz | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Width | 4 mm |
LTC3115IDHD-1#WTRPBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the VIN pin is 40V, but it's recommended to keep it below 36V for reliable operation.
-
To optimize inductor selection, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current at least 1.5 times the peak current, and a DC resistance less than 100mΩ.
-
To minimize EMI and noise, keep the switching node (SW pin) away from sensitive analog nodes, use a solid ground plane, and place the input and output capacitors close to the IC. Also, use a shielded inductor and orient it to minimize radiation.
-
To configure the LTC3115 for a specific output voltage, use the FB pin and a resistive divider to set the output voltage. The resistive divider should be connected between the output voltage and ground, with the FB pin connected to the center tap of the divider.
-
The maximum ambient temperature range for the LTC3115 is -40°C to 125°C, but the junction temperature should not exceed 150°C for reliable operation.
