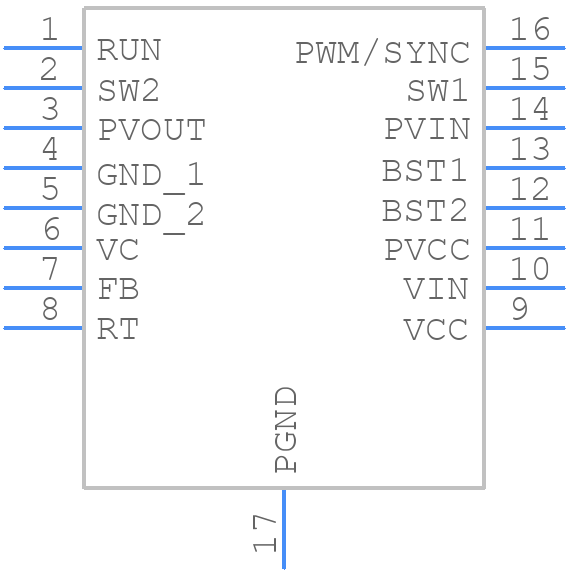

Part Symbol
-
Footprint
-

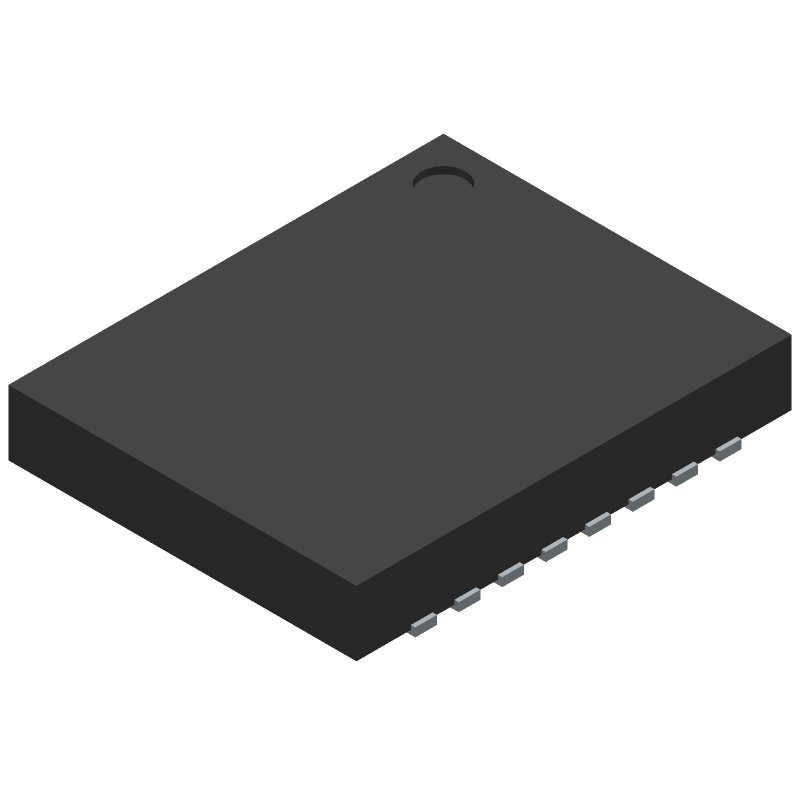

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC3115EDHD-2#PBF by Analog Devices Inc
Results Overview of LTC3115EDHD-2#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
LTC3115EDHD-2#PBF Information
LTC3115EDHD-2#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3115EDHD-2#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2805
|
Newark | Dc/Dc Conv, Sync Buck-Boost, 2Mhz, No. Of Outputs:1Outputs, Topology:Synchronous Buck-Boost, Input Voltage Min:2.7V, Input Voltage Max:40V, Max Output Current:2A, Ic Case/Package:Dfn-Ep, No. Of Pins:16Pins, Output Voltage - Nom:- Rohs Compliant: Yes |Analog Devices LTC3115EDHD-2#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 31 |
|
$7.9600 / $15.1500 | Buy Now |
|
DISTI #
505-LTC3115EDHD-2#PBF-ND
|
DigiKey | IC REG BUCK BOOST ADJ 16DFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
327 In Stock |
|
$7.9625 / $15.1500 | Buy Now |
|
DISTI #
584-LTC3115EDHD-2PBF
|
Mouser Electronics | Switching Voltage Regulators 40V, 2A Sync Buck-Boost DC/DC Conv RoHS: Compliant | 147 |
|
$8.3600 / $13.9700 | Buy Now |
|
|
Analog Devices Inc | 40V, 2A Sync Buck-Boost DC/DC Package Multiple: 73 | 66 |
|
$6.3700 / $15.1500 | Buy Now |
|
|
Bristol Electronics | 30 |
|
RFQ | ||
|
DISTI #
LTC3115EDHD-2PB
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 73 | 0 |
|
$8.2200 / $9.5600 | Buy Now |
|
|
Cytech Systems Limited | IC REG BCK BST ADJ 0.8A/2A 16DFN | 73 |
|
RFQ |
Part Details for LTC3115EDHD-2#PBF
LTC3115EDHD-2#PBF CAD Models
LTC3115EDHD-2#PBF Part Data Attributes
|
|
LTC3115EDHD-2#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3115EDHD-2#PBF
Analog Devices Inc
40V, 2A Synchronous Buck-Boost DC/DC Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 5 X 4 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WJGD-2, DFN-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1707 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO OPERATES IN ADJUSTABLE MODE FROM 2.7V TO 40V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 40 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PDSO-N16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 40 V | |
| Output Voltage-Min | 2.7 V | |
| Output Voltage-Nom | 4.45 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC16,.16,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 2000 kHz | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
Alternate Parts for LTC3115EDHD-2#PBF
This table gives cross-reference parts and alternative options found for LTC3115EDHD-2#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC3115EDHD-2#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC3115HFE-1#PBF | Analog Devices Inc | $9.6230 | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-2#PBF vs LTC3115HFE-1#PBF |
| LTC3115HFE-2#TRPBF | Analog Devices Inc | Check for Price | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-2#PBF vs LTC3115HFE-2#TRPBF |
| LTC3115HFE-1#TRPBF | Analog Devices Inc | Check for Price | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-2#PBF vs LTC3115HFE-1#TRPBF |
| LTC3115IDHD-2#TRPBF | Analog Devices Inc | Check for Price | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-2#PBF vs LTC3115IDHD-2#TRPBF |
| LTC3115IDHD-2#TRPBF | Linear Technology | Check for Price | LTC3115-2 - 40V, 2A Synchronous Buck-Boost DC/DC Converter; Package: DFN; Pins: 16; Temperature Range: -40°C to 85°C | LTC3115EDHD-2#PBF vs LTC3115IDHD-2#TRPBF |
| LTC3115IFE-2#TRPBF | Analog Devices Inc | Check for Price | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-2#PBF vs LTC3115IFE-2#TRPBF |
| LTC3115EDHD-2#TRPBF | Linear Technology | Check for Price | LTC3115-2 - 40V, 2A Synchronous Buck-Boost DC/DC Converter; Package: DFN; Pins: 16; Temperature Range: -40°C to 85°C | LTC3115EDHD-2#PBF vs LTC3115EDHD-2#TRPBF |
| LTC3115IDHD-2#PBF | Linear Technology | Check for Price | LTC3115-2 - 40V, 2A Synchronous Buck-Boost DC/DC Converter; Package: DFN; Pins: 16; Temperature Range: -40°C to 85°C | LTC3115EDHD-2#PBF vs LTC3115IDHD-2#PBF |
| LTC3115MPFE-2#TRPBF | Analog Devices Inc | Check for Price | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-2#PBF vs LTC3115MPFE-2#TRPBF |
| LTC3115EFE-2#TRPBF | Analog Devices Inc | Check for Price | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-2#PBF vs LTC3115EFE-2#TRPBF |
LTC3115EDHD-2#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the VIN pin is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
-
To optimize the inductor selection, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating above the peak current of the converter, and a DC resistance that minimizes losses.
-
For optimal performance, keep the power components (inductor, capacitors, and IC) close together, and use a solid ground plane to reduce noise and EMI. Keep the feedback network (FB, VOUT, and GND) away from the power components and use a separate analog ground plane.
-
The output voltage can be adjusted by changing the resistor divider ratio (R1 and R2) connected to the FB pin. Use the formula: VOUT = 0.8V x (1 + R2/R1) to calculate the desired output voltage.
-
The maximum output current capability of the LTC3115 is 2A, but it's recommended to derate the output current based on the input voltage, output voltage, and ambient temperature to ensure reliable operation.
