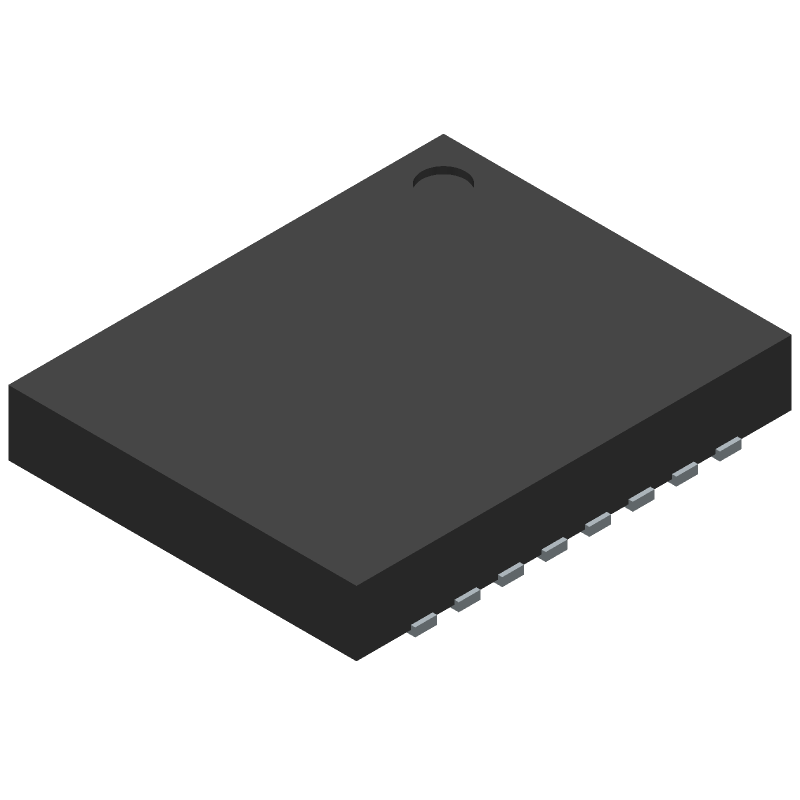

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC3115EDHD-1#PBF by Analog Devices Inc
Results Overview of LTC3115EDHD-1#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
LTC3115EDHD-1#PBF Information
LTC3115EDHD-1#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3115EDHD-1#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6755
|
Newark | Dc/Dc Conv, Sync Buck-Boost, 2Mhz, No. Of Outputs:1Outputs, Topology:Synchronous Buck-Boost, Input Voltage Min:2.7V, Input Voltage Max:40V, Max Output Current:2A, Ic Case/Package:Dfn-Ep, No. Of Pins:16Pins, Output Voltage - Nom:- Rohs Compliant: Yes |Analog Devices LTC3115EDHD-1#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 18 |
|
$8.0800 / $15.1500 | Buy Now |
|
DISTI #
505-LTC3115EDHD-1#PBF-ND
|
DigiKey | IC REG BUCK BST ADJ 1A/2A 16DFN Min Qty: 1 Lead time: 33 Weeks Container: Tube |
100 In Stock |
|
$7.9625 / $15.1500 | Buy Now |
|
DISTI #
584-LTC3115EDHD-1PBF
|
Mouser Electronics | Switching Voltage Regulators 40V, 2A Sync Buck-Boost DC/DC Conv RoHS: Compliant | 17 |
|
$8.2700 / $15.4200 | Buy Now |
|
|
Analog Devices Inc | 40V, 2A Sync Buck-Boost DC/DC Package Multiple: 73 | 0 |
|
$6.3700 / $15.1500 | Buy Now |
|
|
Bristol Electronics | 56 |
|
RFQ | ||
|
|
NexGen Digital | 2 |
|
RFQ | ||
|
DISTI #
LTC3115EDHD-1PB
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 73 | 0 |
|
$8.2200 / $9.5600 | Buy Now |
Part Details for LTC3115EDHD-1#PBF
LTC3115EDHD-1#PBF CAD Models
LTC3115EDHD-1#PBF Part Data Attributes
|
|
LTC3115EDHD-1#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3115EDHD-1#PBF
Analog Devices Inc
40V, 2A Synchronous Buck-Boost DC/DC Converter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | DFN-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1707 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO OPERATES AS LDO REGULATOR | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 40 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-PDSO-N16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 3.7 A | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC16,.16,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 2000 kHz | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
Alternate Parts for LTC3115EDHD-1#PBF
This table gives cross-reference parts and alternative options found for LTC3115EDHD-1#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC3115EDHD-1#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC3115EFE-1#PBF | Analog Devices Inc | $9.1804 | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-1#PBF vs LTC3115EFE-1#PBF |
| LTC3115EDHD-1#TRPBF | Analog Devices Inc | $9.2360 | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-1#PBF vs LTC3115EDHD-1#TRPBF |
| LTC3115IDHD-1#PBF | Analog Devices Inc | $9.3651 | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-1#PBF vs LTC3115IDHD-1#PBF |
| LTC3115IDHD-1#WPBF | Analog Devices Inc | $9.5021 | 40V, 2A Synchronous Buck-Boost DC/DC Converter | LTC3115EDHD-1#PBF vs LTC3115IDHD-1#WPBF |
| LTC3115IDHD-1#WTRMPBF | Analog Devices Inc | Check for Price | Switching Regulator | LTC3115EDHD-1#PBF vs LTC3115IDHD-1#WTRMPBF |
| TPSM63603RDHR | Texas Instruments | Check for Price | High-density, 3-V to 36-V input, 1-V to 16-V output, 3-A power module 30-B0QFN -40 to 125 | LTC3115EDHD-1#PBF vs TPSM63603RDHR |
| TPSM63603SRDHR | Texas Instruments | Check for Price | High-density, 3-V to 36-V input, 1-V to 16-V output, 3-A power module 30-B0QFN -40 to 125 | LTC3115EDHD-1#PBF vs TPSM63603SRDHR |
LTC3115EDHD-1#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the VIN pin is 40V, but it's recommended to keep it below 36V for reliable operation.
-
To optimize the inductor selection, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating above the peak current of the converter, and a DC resistance that minimizes losses.
-
The RUN pin is an active-high enable input that allows the user to turn the converter on and off. To use it, simply tie the RUN pin to VIN through a resistor (e.g., 10kΩ) to enable the converter, or tie it to GND to disable it.
-
To configure the LTC3115 for a specific output voltage, use the FB pin and a resistive divider to set the output voltage. The FB pin is the feedback input, and the resistive divider sets the output voltage based on the internal 0.8V reference voltage.
-
The maximum output current that the LTC3115 can deliver depends on the input voltage and the inductor selection. However, the typical output current rating is 2A, and the peak current rating is 4A.
