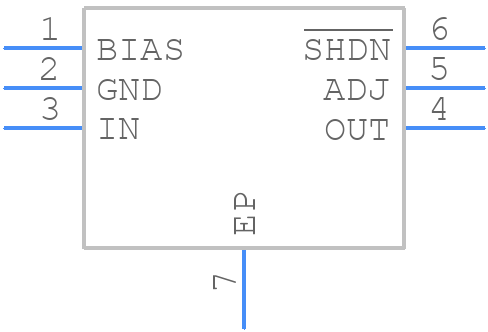

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC3025EDC#TRPBF by Analog Devices Inc
Results Overview of LTC3025EDC#TRPBF by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTC3025EDC#TRPBF Information
LTC3025EDC#TRPBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3025EDC#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2767
|
Newark | Ldo, Adj, 0.3A, Dfn-Ep, -40 To 125Deg C, Output Type:Adjustable, Input Voltage Min:900Mv, Input Voltage Max:5.5V, No. Of Outputs:-, Output Voltage Min:400Mv, Output Voltage Max:3.6V, Polarity:-, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices LTC3025EDC#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1745 |
|
$1.9900 | Buy Now |
|
DISTI #
LTC3025EDC#TRPBFCT-ND
|
DigiKey | IC REG LIN POS ADJ 300MA 6-DFN Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4975 In Stock |
|
$2.0750 / $5.5900 | Buy Now |
|
DISTI #
584-LTC3025EDC#TRPBF
|
Mouser Electronics | LDO Voltage Regulators 300mA uP VLDO Lin Reg RoHS: Compliant | 10345 |
|
$2.1500 / $4.1400 | Buy Now |
|
DISTI #
V72:2272_06468174
|
Arrow Electronics | LDO Regulator Pos 0.4V to 3.6V 0.3A 6-Pin DFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2449 Container: Cut Strips | Americas - 56 |
|
$2.1290 / $4.0870 | Buy Now |
|
|
Analog Devices Inc | 300mA uP VLDO Lin Reg Min Qty: 1 Package Multiple: 2500 | 1008 |
|
$2.0750 / $5.5900 | Buy Now |
|
|
Bristol Electronics | Min Qty: 2 | 14 |
|
$2.5480 / $3.9200 | Buy Now |
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,+0.4V TO +3.6V,CMOS,LLCC,6PIN,PLASTIC, TandR, LEAD FREE | 11 |
|
$2.6250 / $5.2500 | Buy Now |
|
DISTI #
LTC3025EDCTRPBF
|
Richardson RFPD | VOLTAGE REGULATOR RoHS: Compliant Min Qty: 2500 | 0 |
|
$2.1400 / $2.2200 | Buy Now |
Part Details for LTC3025EDC#TRPBF
LTC3025EDC#TRPBF CAD Models
LTC3025EDC#TRPBF Part Data Attributes
|
|
LTC3025EDC#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3025EDC#TRPBF
Analog Devices Inc
300mA Micropower VLDO Linear Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 2 X 2 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WCCD-2, DFN-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | 05-08-1703 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Dropout Voltage1-Max | 0.1 V | |
| JESD-30 Code | S-PDSO-N6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Voltage1-Max | 3.6 V | |
| Output Voltage1-Min | 0.4 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
Alternate Parts for LTC3025EDC#TRPBF
This table gives cross-reference parts and alternative options found for LTC3025EDC#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC3025EDC#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC3025EDC#TRMPBF | Analog Devices Inc | $2.7324 | 300mA Micropower VLDO Linear Regulator | LTC3025EDC#TRPBF vs LTC3025EDC#TRMPBF |
| LTC3025IDC#TRMPBF | Analog Devices Inc | $3.1355 | 300mA Micropower VLDO Linear Regulator | LTC3025EDC#TRPBF vs LTC3025IDC#TRMPBF |
| LTC3025IDC | Analog Devices Inc | Check for Price | Adjustable Positive LDO Regulator, 0.4V Min, 3.6V Max, 0.1V Dropout, CMOS, PDSO6 | LTC3025EDC#TRPBF vs LTC3025IDC |
| LTC3025IDC#PBF | Linear Technology | Check for Price | LTC3025 - 300mA Micropower VLDO Linear Regulator; Package: DFN; Pins: 6; Temperature Range: -40°C to 85°C | LTC3025EDC#TRPBF vs LTC3025IDC#PBF |
| LTC3025EDC#TR | Linear Technology | Check for Price | LTC3025 - 300mA Micropower VLDO Linear Regulator; Package: DFN; Pins: 6; Temperature Range: -40°C to 85°C | LTC3025EDC#TRPBF vs LTC3025EDC#TR |
| LTC3025EDC#PBF | Linear Technology | Check for Price | LTC3025 - 300mA Micropower VLDO Linear Regulator; Package: DFN; Pins: 6; Temperature Range: -40°C to 85°C | LTC3025EDC#TRPBF vs LTC3025EDC#PBF |
| LTC3025IDC#TRM | Analog Devices Inc | Check for Price | Adjustable Positive LDO Regulator, 0.4V Min, 3.6V Max, 0.1V Dropout, CMOS, PDSO6 | LTC3025EDC#TRPBF vs LTC3025IDC#TRM |
| LTC3025IDC#TRMPBF | Linear Technology | Check for Price | LTC3025 - 300mA Micropower VLDO Linear Regulator; Package: DFN; Pins: 6; Temperature Range: -40°C to 85°C | LTC3025EDC#TRPBF vs LTC3025IDC#TRMPBF |
| LTC3025EDC#TRMPBF | Linear Technology | Check for Price | LTC3025 - 300mA Micropower VLDO Linear Regulator; Package: DFN; Pins: 6; Temperature Range: -40°C to 85°C | LTC3025EDC#TRPBF vs LTC3025EDC#TRMPBF |
| LTC3025EDC | Linear Technology | Check for Price | LTC3025 - 300mA Micropower VLDO Linear Regulator; Package: DFN; Pins: 6; Temperature Range: -40°C to 85°C | LTC3025EDC#TRPBF vs LTC3025EDC |
LTC3025EDC#TRPBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance.
-
To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, use a low-ESR capacitor for the input capacitor (CIN).
-
The minimum input voltage required for the device to operate is 2.5V, but it's recommended to keep it above 3V for optimal performance.
-
Yes, the device can operate in a high-temperature environment, but the junction temperature should not exceed 125°C. Also, the device's performance may degrade at high temperatures, so it's recommended to derate the output current accordingly.
-
The output voltage of the device can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
