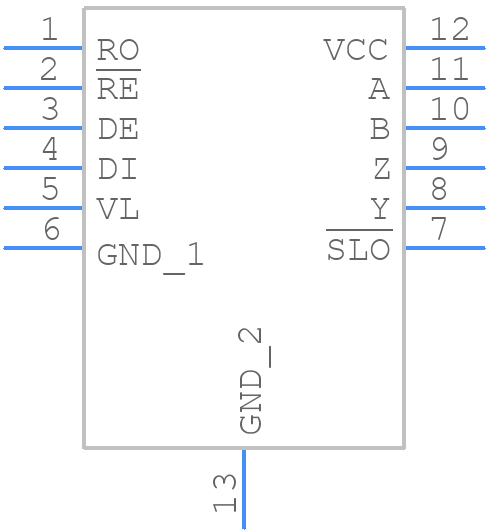

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC2865HMSE#TRPBF by Analog Devices Inc
Results Overview of LTC2865HMSE#TRPBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Automotive
Robotics and Drones
LTC2865HMSE#TRPBF Information
LTC2865HMSE#TRPBF by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LTC2865HMSE#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
03AM2397
|
Newark | Rs422/Rs485 Tx Rx, 20Mbps, Msop-Ep-12, Ic Type:Rs422/Rs485 Transceiver, No. Of Receivers:1Receivers, No. Of Transmitters:1, Communication Mode:Full Duplex, Data Rate Max:20Mbps, Supply Voltage Min:3V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices LTC2865HMSE#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$2.5300 / $6.4500 | Buy Now |
|
DISTI #
584-LTC2865HMSETRPBF
|
Mouser Electronics | RS-422/RS-485 Interface IC 60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers RoHS: Compliant | 0 |
|
$2.5200 / $5.3400 | Order Now |
|
|
Analog Devices Inc | ±60V Fault Protected 3V to 5.5 Min Qty: 1 Package Multiple: 2500 | 1398 |
|
$2.5250 / $6.4500 | Buy Now |
|
DISTI #
LTC2865HMSETRPB
|
Richardson RFPD | INTERFACE - TRANSCEIVER RoHS: Compliant Min Qty: 2500 | 0 |
|
$2.6100 / $2.7100 | Buy Now |
|
|
Win Source Electronics | IC TRANSCEIVER FULL 1/1 12MSOP | 413 |
|
$3.7376 / $5.6064 | Buy Now |
Part Details for LTC2865HMSE#TRPBF
LTC2865HMSE#TRPBF CAD Models
LTC2865HMSE#TRPBF Part Data Attributes
|
|
LTC2865HMSE#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2865HMSE#TRPBF
Analog Devices Inc
±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LEAD FREE, PLASTIC, MSOP-12 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 05-08-1666 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-422; EIA-485 | |
| JESD-30 Code | R-PDSO-G12 | |
| JESD-609 Code | e3 | |
| Length | 4.039 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Receive Delay-Max | 65 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 1500 ns | |
| Width | 3 mm |
Alternate Parts for LTC2865HMSE#TRPBF
This table gives cross-reference parts and alternative options found for LTC2865HMSE#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2865HMSE#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2865IMSE#PBF | Analog Devices Inc | $2.8640 | ±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers | LTC2865HMSE#TRPBF vs LTC2865IMSE#PBF |
| LTC2865IMSE#PBF | Linear Technology | Check for Price | LTC2865 - ±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers; Package: MSOP; Pins: 12; Temperature Range: -40°C to 85°C | LTC2865HMSE#TRPBF vs LTC2865IMSE#PBF |
| LTC2865CMSE#PBF | Linear Technology | Check for Price | LTC2865 - ±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers; Package: MSOP; Pins: 12; Temperature Range: 0°C to 70°C | LTC2865HMSE#TRPBF vs LTC2865CMSE#PBF |
LTC2865HMSE#TRPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC2865HMSE involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the input and output capacitors close to the IC. A 4-layer PCB with a dedicated ground plane is recommended.
-
To optimize the performance of the LTC2865HMSE in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the input lines, and use a shielded cable for the input signal. Additionally, consider using a separate analog ground plane and a quiet power supply.
-
The maximum operating temperature range for the LTC2865HMSE is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
-
Yes, the LTC2865HMSE is suitable for high-reliability and aerospace applications. It is manufactured using a high-reliability process, and Analog Devices Inc provides a radiation-hardened version of the device for aerospace applications.
-
To troubleshoot issues with the LTC2865HMSE, start by checking the power supply voltage, input signal, and output voltage. Use an oscilloscope to check for noise, oscillations, or other anomalies. Check the PCB layout and ensure that it meets the recommended layout guidelines. If the issue persists, consult the datasheet and application notes or contact Analog Devices Inc's technical support.
