LTC2855HDE#TRPBF by:

3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination

Part Details for LTC2855HDE#TRPBF by Analog Devices Inc

Results Overview of LTC2855HDE#TRPBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

LTC2855HDE#TRPBF Information

LTC2855HDE#TRPBF by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for LTC2855HDE#TRPBF

Part # Distributor Description Stock Price Buy
DISTI # LTC2855HDE#TRPBFCT-ND
DigiKey IC TRANSCEIVER FULL 1/1 12DFN Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 353
In Stock
  • 1 $8.0000
  • 10 $5.3560
  • 25 $4.6676
  • 100 $3.8885
  • 250 $3.5061
  • 500 $3.3875
  • 2,500 $3.3875
$3.3875 / $8.0000 Buy Now
DISTI # 584-LTC2855HDE#TRPBF
Mouser Electronics RS-422/RS-485 Interface IC 3.3V 20Mbps RS485/RS422 Tran w/ Int Swit RoHS: Compliant 2751
  • 1 $6.4400
  • 10 $4.9500
  • 25 $4.5800
  • 100 $4.1700
  • 250 $3.9800
  • 500 $3.8600
  • 1,000 $3.7300
  • 2,500 $3.7300
$3.7300 / $6.4400 Buy Now
Analog Devices Inc 3.3V 20Mbps RS485/RS422 Tran w Min Qty: 1 Package Multiple: 2500 285
  • 1 $8.0000
  • 10 $5.3560
  • 25 $4.6676
  • 100 $3.8885
  • 250 $3.5061
  • 500 $3.3875
  • 1,000 $2.7100
  • 2,500 $3.3875
$2.7100 / $8.0000 Buy Now
DISTI # LTC2855HDETRPBF
Richardson RFPD INTERFACE - TRANSCEIVER RoHS: Compliant Min Qty: 2500 0
  • 2,500 $3.6400
  • 5,000 $3.5000
$3.5000 / $3.6400 Buy Now
Cytech Systems Limited IC TRANSCEIVER FULL 1/1 12DFN 40
RFQ

Part Details for LTC2855HDE#TRPBF

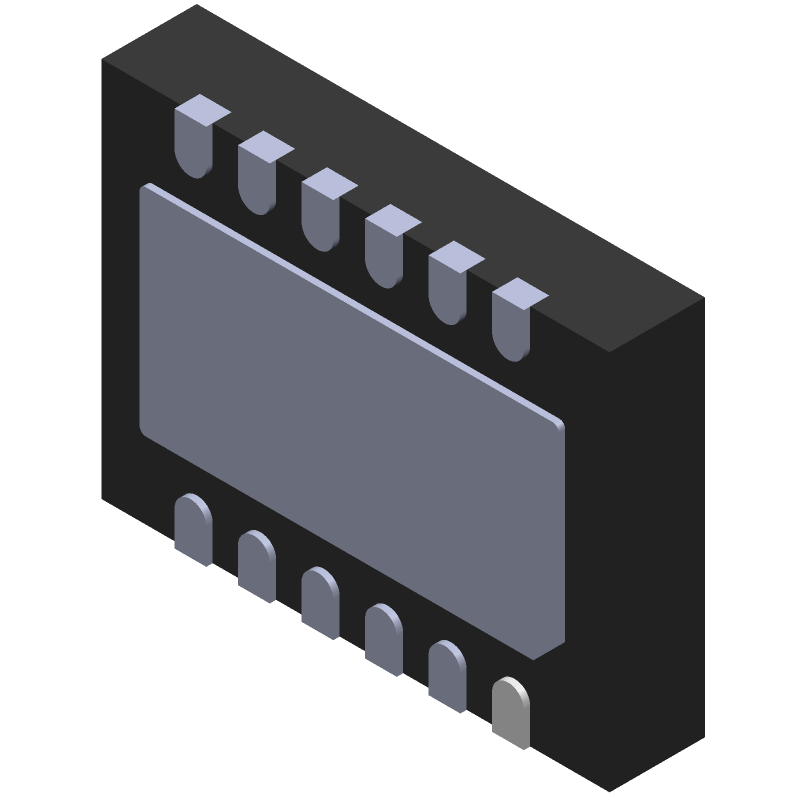

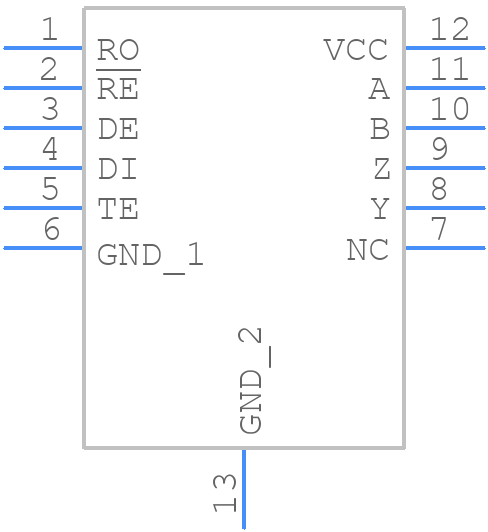

LTC2855HDE#TRPBF CAD Models

LTC2855HDE#TRPBF Part Data Attributes

LTC2855HDE#TRPBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LTC2855HDE#TRPBF Analog Devices Inc 3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description 4 X 3 MM, LEAD FREE, PLASTIC, M0-229WGED, DFN-12
Pin Count 12
Manufacturer Package Code 05-08-1695
Reach Compliance Code compliant
Samacsys Manufacturer Analog Devices
Differential Output YES
Driver Number of Bits 1
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-485-A; TIA-485-A
JESD-30 Code R-PDSO-N12
JESD-609 Code e3
Length 4 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 12
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC12,.12,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Receive Delay-Max 70 ns
Receiver Number of Bits 1
Seated Height-Max 0.8 mm
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transmit Delay-Max 50 ns
Width 3 mm

Alternate Parts for LTC2855HDE#TRPBF

This table gives cross-reference parts and alternative options found for LTC2855HDE#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2855HDE#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LTC2855IDE#TRPBF Analog Devices Inc $3.3202 3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination LTC2855HDE#TRPBF vs LTC2855IDE#TRPBF
LTC2855IDE#TR Analog Devices Inc Check for Price Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, PDSO12 LTC2855HDE#TRPBF vs LTC2855IDE#TR
LTC2855IDE#TR Linear Technology Check for Price IC LINE TRANSCEIVER, PDSO12, 4 X 3 MM, PLASTIC, M0-229WGED, DFN-12, Line Driver or Receiver LTC2855HDE#TRPBF vs LTC2855IDE#TR
LTC2855CDE#TRPBF Linear Technology Check for Price LTC2855 - 3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination; Package: DFN; Pins: 12; Temperature Range: 0°C to 70°C LTC2855HDE#TRPBF vs LTC2855CDE#TRPBF
LTC2855CDE Analog Devices Inc Check for Price Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, PDSO12 LTC2855HDE#TRPBF vs LTC2855CDE
Part Number Manufacturer Composite Price Description Compare
LTC2855HDE#PBF Analog Devices Inc $2.9637 3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination LTC2855HDE#TRPBF vs LTC2855HDE#PBF
LTC2855CDE#PBF Analog Devices Inc $3.0280 3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination LTC2855HDE#TRPBF vs LTC2855CDE#PBF
LTC2855CDE#TRPBF Analog Devices Inc $3.2662 3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination LTC2855HDE#TRPBF vs LTC2855CDE#TRPBF
LTC2855IDE#PBF Analog Devices Inc $3.5837 3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination LTC2855HDE#TRPBF vs LTC2855IDE#PBF
LTC2855HDE#TR Linear Technology Check for Price LTC2855 - 3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination; Package: DFN; Pins: 12; Temperature Range: -40°C to 125°C LTC2855HDE#TRPBF vs LTC2855HDE#TR
LTC2855HDE Linear Technology Check for Price LTC2855 - 3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination; Package: DFN; Pins: 12; Temperature Range: -40°C to 125°C LTC2855HDE#TRPBF vs LTC2855HDE
LTC2855CDE#TR Linear Technology Check for Price IC LINE TRANSCEIVER, PDSO12, 4 X 3 MM, PLASTIC, M0-229WGED, DFN-12, Line Driver or Receiver LTC2855HDE#TRPBF vs LTC2855CDE#TR
LTC2855IDE#PBF Linear Technology Check for Price LTC2855 - 3.3V 20Mbps RS485/RS422 Transceiver with Integrated Switchable Termination; Package: DFN; Pins: 12; Temperature Range: -40°C to 85°C LTC2855HDE#TRPBF vs LTC2855IDE#PBF
LTC2855IDE Analog Devices Inc Check for Price Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, PDSO12 LTC2855HDE#TRPBF vs LTC2855IDE
LTC2855CDE Linear Technology Check for Price IC LINE TRANSCEIVER, PDSO12, 4 X 3 MM, PLASTIC, M0-229WGED, DFN-12, Line Driver or Receiver LTC2855HDE#TRPBF vs LTC2855CDE

LTC2855HDE#TRPBF Related Parts

LTC2855HDE#TRPBF Frequently Asked Questions (FAQ)

  • A good PCB layout for the LTC2855HDE involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.

  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the feedback resistors should be chosen to ensure a stable gain margin.

  • The LTC2855HDE is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.

  • Yes, the LTC2855HDE is suitable for high-reliability and aerospace applications. However, it is essential to follow the recommended design and manufacturing guidelines to ensure the required level of reliability and performance.

  • To troubleshoot issues with the LTC2855HDE, start by checking the power supply voltage, input and output voltages, and the feedback loop. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the component values and PCB layout meet the recommended guidelines.
