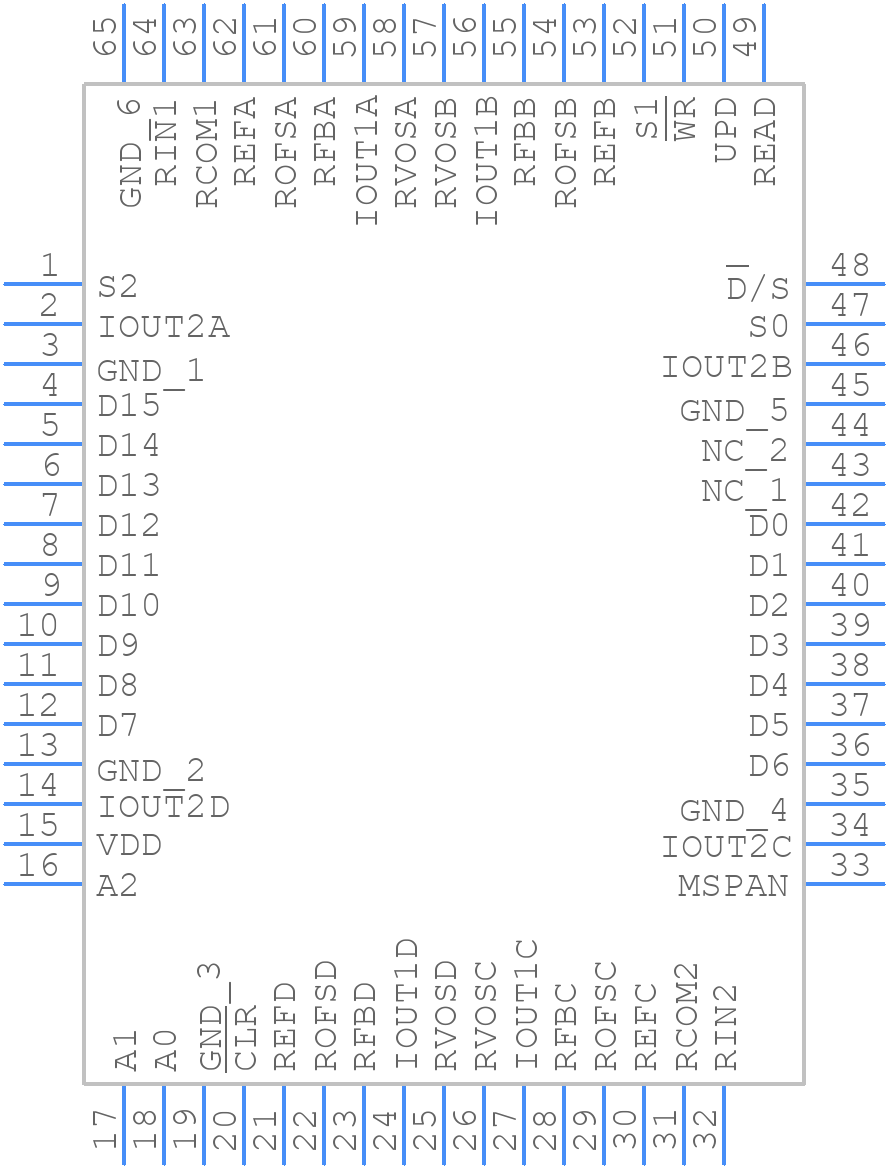

Part Symbol
-
Footprint
-

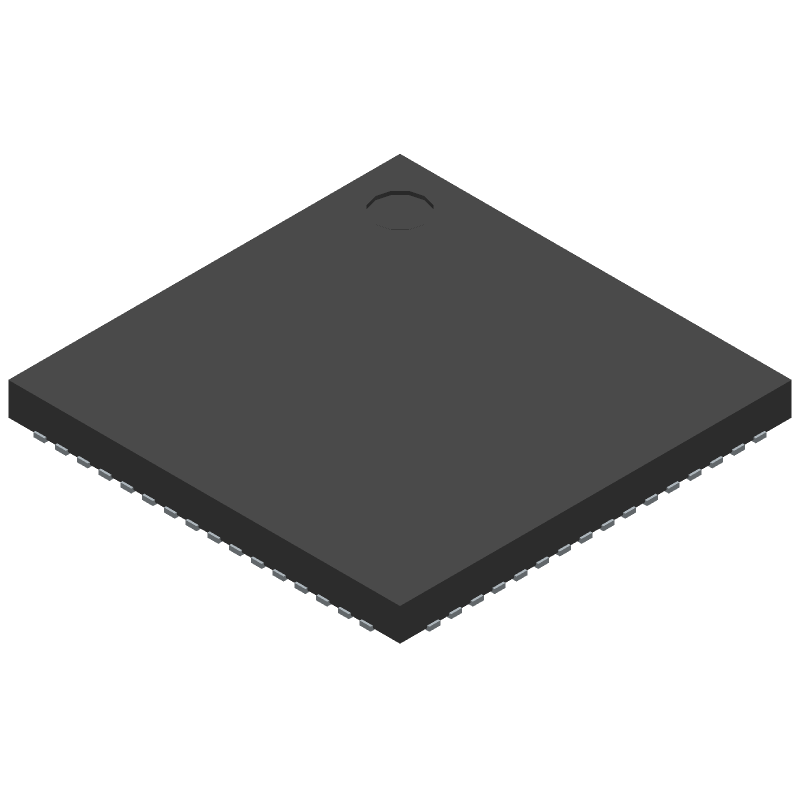

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC2755AIUP-16#PBF by Analog Devices Inc
Results Overview of LTC2755AIUP-16#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LTC2755AIUP-16#PBF Information
LTC2755AIUP-16#PBF by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2755AIUP-16#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4388038
|
Farnell | D/A CONVERTER, 16BIT, -40 TO 85DEG C RoHS: Compliant Min Qty: 1 Lead time: 40 Weeks, 1 Days Container: Each | 38 |
|
$41.9920 / $59.0999 | Buy Now |
|
DISTI #
505-LTC2755AIUP-16#PBF-ND
|
DigiKey | IC DAC 16BIT A-OUT 64QFN Min Qty: 1 Lead time: 39 Weeks Container: Tube |
14 In Stock |
|
$34.8625 / $47.8900 | Buy Now |
|
DISTI #
584-C2755AIUP-16PBF
|
Mouser Electronics | Digital to Analog Converters - DAC 4x C Out 12-/14-/16-B SoftSpan DACs w/ RoHS: Compliant | 6 |
|
$39.2700 / $54.1700 | Buy Now |
|
|
Analog Devices Inc | 4x C Out 12-/14-/16-B SoftSpa Package Multiple: 40 | 3 |
|
$27.8900 / $47.8900 | Buy Now |
|
DISTI #
LTC2755AIUP-16P
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 40 | 0 |
|
$36.0100 / $41.8300 | Buy Now |
Part Details for LTC2755AIUP-16#PBF
LTC2755AIUP-16#PBF CAD Models
LTC2755AIUP-16#PBF Part Data Attributes
|
|
LTC2755AIUP-16#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2755AIUP-16#PBF
Analog Devices Inc
Quad Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 9 X 9 MM, LEAD FREE, PLASTIC, MO-220WNJR-5, QFN-64 | |
| Pin Count | 64 | |
| Manufacturer Package Code | 05-08-1705 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 10 V | |
| Analog Output Voltage-Min | -10 V | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | PARALLEL, WORD | |
| JESD-30 Code | S-PQCC-N64 | |
| JESD-609 Code | e3 | |
| Length | 9 mm | |
| Linearity Error-Max (EL) | 0.0015% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC64,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Settling Time-Nom (tstl) | 2 µs | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 mm |
Alternate Parts for LTC2755AIUP-16#PBF
This table gives cross-reference parts and alternative options found for LTC2755AIUP-16#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2755AIUP-16#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2755ACUP-16#PBF | Analog Devices Inc | Check for Price | Quad Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O | LTC2755AIUP-16#PBF vs LTC2755ACUP-16#PBF |
| LTC2755ACUP-16#PBF | Linear Technology | Check for Price | LTC2755 - Quad Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O; Package: QFN; Pins: 64; Temperature Range: 0°C to 70°C | LTC2755AIUP-16#PBF vs LTC2755ACUP-16#PBF |
| LTC2755ACUP-16#TRPBF | Analog Devices Inc | Check for Price | Quad Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O | LTC2755AIUP-16#PBF vs LTC2755ACUP-16#TRPBF |
| LTC2755ACUP-16#TRPBF | Linear Technology | Check for Price | LTC2755 - Quad Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O; Package: QFN; Pins: 64; Temperature Range: 0°C to 70°C | LTC2755AIUP-16#PBF vs LTC2755ACUP-16#TRPBF |
| LTC2755AIUP-16#PBF | Linear Technology | Check for Price | LTC2755 - Quad Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O; Package: QFN; Pins: 64; Temperature Range: -40°C to 85°C | LTC2755AIUP-16#PBF vs LTC2755AIUP-16#PBF |
| LTC2755AIUP-16#TRPBF | Analog Devices Inc | Check for Price | Quad Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O | LTC2755AIUP-16#PBF vs LTC2755AIUP-16#TRPBF |
| LTC2755AIUP-16#TRPBF | Linear Technology | Check for Price | LTC2755 - Quad Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O; Package: QFN; Pins: 64; Temperature Range: -40°C to 85°C | LTC2755AIUP-16#PBF vs LTC2755AIUP-16#TRPBF |
LTC2755AIUP-16#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC2755 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure proper power-up and power-down, the LTC2755 requires a controlled voltage ramp-up and ramp-down. A soft-start circuit can be used to limit the inrush current and prevent voltage overshoots.
-
The LTC2755 can drive capacitive loads up to 10nF. However, it's recommended to limit the capacitive load to 1nF or less to ensure stability and prevent oscillations.
-
To troubleshoot oscillations or instability issues, check the PCB layout, ensure proper decoupling, and verify that the input and output capacitors are properly selected. Also, check for any noise or interference on the power supply lines.
-
The LTC2755 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's specifications and ensure proper thermal management.
