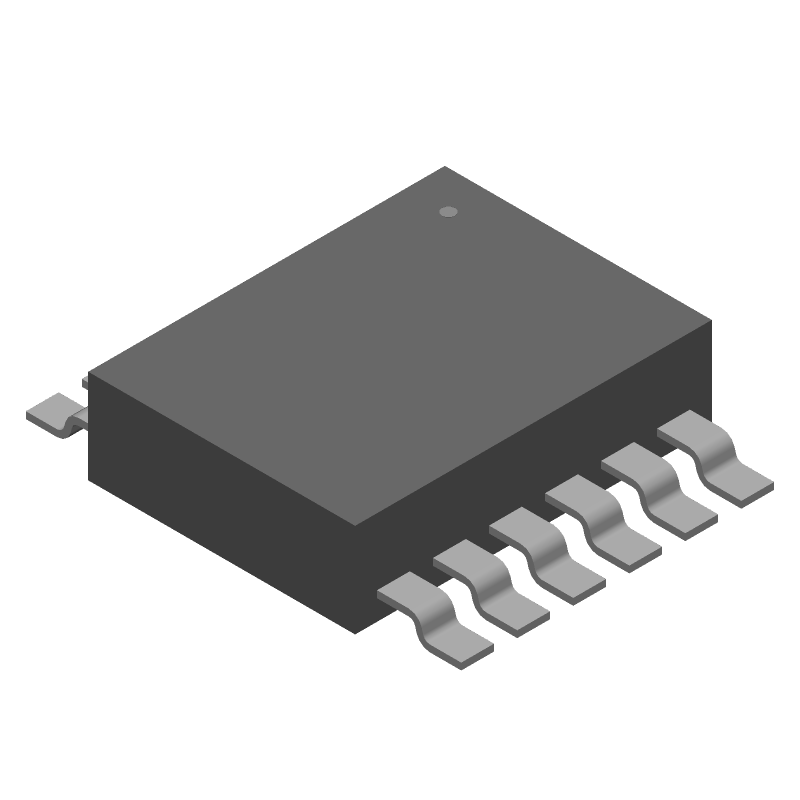

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC2644IMS-L12#PBF by Analog Devices Inc
Results Overview of LTC2644IMS-L12#PBF by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
LTC2644IMS-L12#PBF Information
LTC2644IMS-L12#PBF by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2644IMS-L12#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6588
|
Newark | Dac, 12Bit, Msop-12, -40 To 85Deg C, Resolution (Bits):12Bit, Sampling Rate:-, Data Interface:-, Supply Voltage Range:2.7V To 5.5V, Adc/Dac Case Style:Msop, No. Of Pins:12Pins, Input Channel Type:Single Ended, Msl:Msl 1 - Unlimitedrohs Compliant: Yes |Analog Devices LTC2644IMS-L12#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 134 |
|
$5.0500 / $8.0700 | Buy Now |
|
DISTI #
505-LTC2644IMS-L12#PBF-ND
|
DigiKey | IC DAC 12BIT V-OUT 12MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
61 In Stock |
|
$4.3500 / $9.6200 | Buy Now |
|
DISTI #
584-C2644IMS-L12PBF
|
Mouser Electronics | Digital to Analog Converters - DAC Dual 12-/10-/8-Bit PWM to VOUT DACs with 10ppm/ C Reference RoHS: Compliant | 2451 |
|
$4.3500 / $8.0700 | Buy Now |
|
DISTI #
V99:2348_06458481
|
Arrow Electronics | DAC 2-CH 12-bit 12-Pin MSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2314 | Americas - 3 |
|
$2.3410 / $4.4760 | Buy Now |
|
|
Analog Devices Inc | 2x 12-/10-/8-B PWM to VOUT DAC Package Multiple: 37 | 1789 |
|
$3.4800 / $9.6200 | Buy Now |
|
DISTI #
35215547
|
Verical | DAC 2-CH 12-bit 12-Pin MSOP Tube RoHS: Compliant Min Qty: 111 Package Multiple: 111 | Americas - 1776 |
|
$4.3043 | Buy Now |
|
DISTI #
68403530
|
Verical | DAC 2-CH 12-bit 12-Pin MSOP Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2314 | Americas - 3 |
|
$4.1300 | Buy Now |
|
DISTI #
LTC2644IMS-L12P
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 111 | 0 |
|
$4.5000 / $4.9300 | Buy Now |
|
|
Vyrian | Converters | 331 |
|
RFQ | |
|
|
Win Source Electronics | 4600 |
|
$9.3844 / $14.0771 | Buy Now |
Part Details for LTC2644IMS-L12#PBF
LTC2644IMS-L12#PBF CAD Models
LTC2644IMS-L12#PBF Part Data Attributes
|
|
LTC2644IMS-L12#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2644IMS-L12#PBF
Analog Devices Inc
Dual 12-/10-/8-Bit PWM to VOUT DACs with 10ppm/°C Reference
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | MSOP-12 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 05-08-1668 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G12 | |
| JESD-609 Code | e3 | |
| Length | 4.039 mm | |
| Linearity Error-Max (EL) | 0.061% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP12,.19 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Settling Time-Nom (tstl) | 7.8 µs | |
| Supply Current-Max | 6 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
LTC2644IMS-L12#PBF Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the LTC2644 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a solid ground plane is recommended.
-
To optimize the performance of the LTC2644, ensure that the input and output capacitors are of high quality and have low ESR, use a low impedance power source, and minimize the noise on the input voltage. Additionally, ensure that the device is operated within its recommended operating conditions.
-
The maximum allowed voltage on the input pins of the LTC2644 is 6V. Exceeding this voltage can cause damage to the device.
-
To ensure the LTC2644 is stable and does not oscillate, ensure that the output capacitor is of sufficient value and has low ESR, the input capacitor is of sufficient value, and the device is operated within its recommended operating conditions.
-
The maximum output current of the LTC2644 is 4A. Exceeding this current can cause damage to the device.
