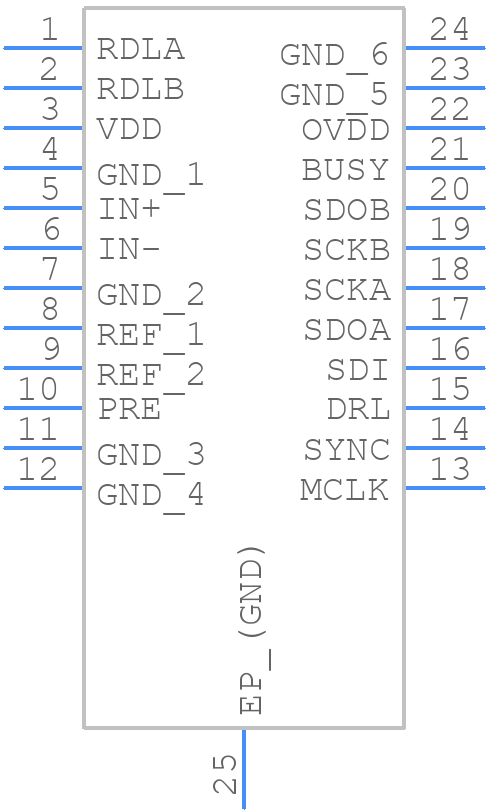

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC2500CDKD-32#PBF by Analog Devices Inc
Results Overview of LTC2500CDKD-32#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC2500CDKD-32#PBF Information
LTC2500CDKD-32#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2500CDKD-32#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2423
|
Newark | Adc, 32Bit, 1Msps, Dfn-24, Resolution (Bits):32Bit, Sampling Rate:1Msps, Input Channel Type:Differential, Single Ended, Data Interface:Spi, Supply Voltage Type:Single, Supply Voltage Min:2.375V, Supply Voltage Max:2.625V Rohs Compliant: Yes |Analog Devices LTC2500CDKD-32#PBF RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 60 |
|
$54.0500 / $67.1600 | Buy Now |
|
DISTI #
505-LTC2500CDKD-32#PBF-ND
|
DigiKey | IC ADC 32BIT SAR 24DFN Min Qty: 1 Lead time: 13 Weeks Container: Tube |
220 In Stock |
|
$52.9750 / $67.1600 | Buy Now |
|
DISTI #
584-2500CDKD32PBF
|
Mouser Electronics | Analog to Digital Converters - ADC 32-B Over-Smpl ADC w/ Config Dig Filt RoHS: Compliant | 36 |
|
$55.9400 / $72.8000 | Buy Now |
|
|
Analog Devices Inc | 32-B Over-Smpl ADC w/ Config D Package Multiple: 52 | 304 |
|
$42.3800 / $67.1600 | Buy Now |
|
DISTI #
50980527
|
Verical | 1-Channel Single ADC SAR 1Msps 32-bit Serial 24-Pin DFN EP Tube RoHS: Compliant Min Qty: 52 Package Multiple: 52 | Americas - 260 |
|
$53.3082 | Buy Now |
|
DISTI #
LTC2500CDKD-32P
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 52 | 0 |
|
$54.7200 / $63.5700 | Buy Now |
Part Details for LTC2500CDKD-32#PBF
LTC2500CDKD-32#PBF CAD Models
LTC2500CDKD-32#PBF Part Data Attributes
|
|
LTC2500CDKD-32#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2500CDKD-32#PBF
Analog Devices Inc
32-Bit Over-Sampling ADC with Configurable Digital Filter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | DFN-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | 05-08-1864 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 5.1 V | |
| Analog Input Voltage-Min | -2.5 V | |
| Conversion Time-Max | 0.66 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-N24 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Linearity Error-Max (EL) | 0.0002% | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 32 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Sample Rate | 1 MHz | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Width | 4 mm |
Alternate Parts for LTC2500CDKD-32#PBF
This table gives cross-reference parts and alternative options found for LTC2500CDKD-32#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2500CDKD-32#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2500CDKD-32#PBF | Linear Technology | Check for Price | LTC2500-32 - 32-Bit Over-Sampling ADC with Configurable Digital Filter; Package: DFN; Pins: 24; Temperature Range: 0°C to 70°C | LTC2500CDKD-32#PBF vs LTC2500CDKD-32#PBF |
LTC2500CDKD-32#PBF Frequently Asked Questions (FAQ)
-
It is recommended to separate the analog and digital signals on the PCB, using separate ground planes and power supplies if possible. The analog signals should be routed away from the digital signals to minimize noise coupling. Additionally, the datasheet recommends using a 4-layer PCB with a solid ground plane to reduce noise and improve performance.
-
To optimize the performance of the ADC, ensure that the input signals are properly filtered and buffered, and that the ADC's reference voltage is stable and noise-free. Additionally, the datasheet recommends using a low-noise, low-impedance power supply, and minimizing digital noise coupling to the analog signals.
-
The maximum clock frequency that can be used with the LTC2500 is 50 MHz. However, the datasheet recommends using a clock frequency of 20-30 MHz for optimal performance.
-
The LTC2500 can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or parallel interface. The datasheet provides detailed information on the interface timing and protocol requirements.
-
The power consumption of the LTC2500 depends on the operating mode and clock frequency. The datasheet provides detailed information on the power consumption in different modes. To minimize power consumption, the datasheet recommends using the lowest possible clock frequency, disabling unused features, and using a low-power mode when possible.
