Part Symbol
-

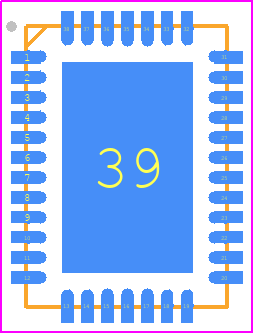

Footprint
-

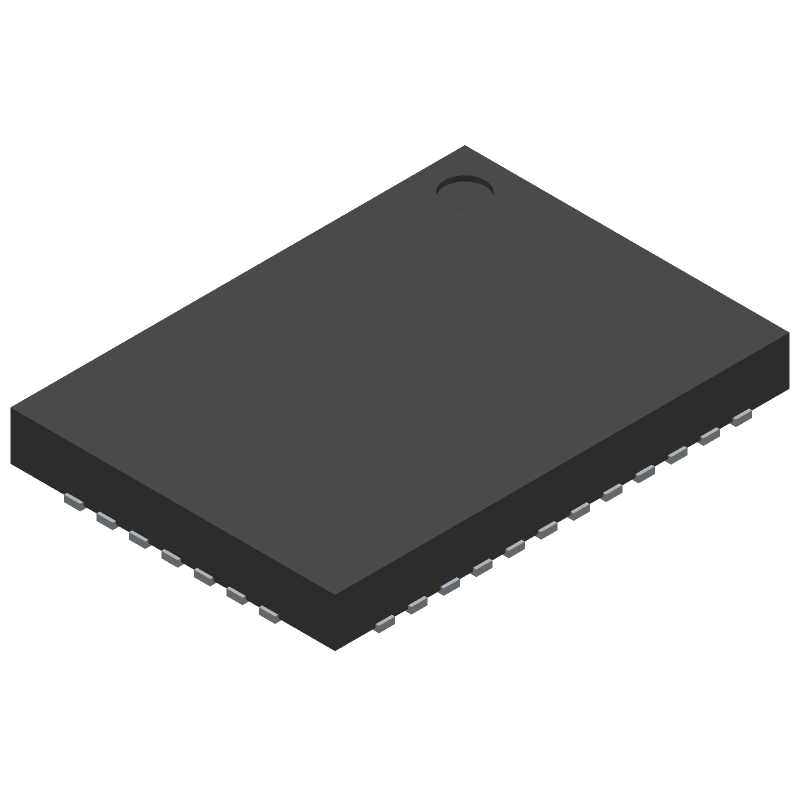

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC2497CUHF#TRPBF by Analog Devices Inc
Results Overview of LTC2497CUHF#TRPBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
LTC2497CUHF#TRPBF Information
LTC2497CUHF#TRPBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2497CUHF#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79AK7093
|
Newark | Adc, 16Bit, 7.5Sps, 0 To 70Deg C Rohs Compliant: Yes |Analog Devices LTC2497CUHF#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2041 |
|
$4.0900 / $8.4500 | Buy Now |
|
DISTI #
LTC2497CUHF#TRPBFCT-ND
|
DigiKey | IC ADC 16BIT SIGMA-DELTA 38QFN Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1961 In Stock |
|
$3.9875 / $9.0200 | Buy Now |
|
DISTI #
584-LTC2497CUHFTRPBF
|
Mouser Electronics | Analog to Digital Converters - ADC 16-B 8-/16-Ch DS ADC w/ Easy Drv In C Ca RoHS: Compliant | 62 |
|
$4.1100 / $7.4600 | Buy Now |
|
|
Analog Devices Inc | 16-B 8-/16-Ch DS ADC w/ Easy D Min Qty: 1 Package Multiple: 2500 | 2893 |
|
$3.1900 / $9.0200 | Buy Now |
|
DISTI #
80569136
|
Verical | 16-Channel Single ADC Delta-Sigma 7.5sps 16-bit Serial 38-Pin QFN EP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 2500 |
|
$4.0126 | Buy Now |
|
DISTI #
LTC2497CUHFTRPB
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 2500 | 0 |
|
$4.1200 / $4.2800 | Buy Now |
|
|
Cytech Systems Limited | IC ADC 16BIT SIGMA-DELTA 38QFN | 2500 |
|
RFQ |
Part Details for LTC2497CUHF#TRPBF
LTC2497CUHF#TRPBF CAD Models
LTC2497CUHF#TRPBF Part Data Attributes
|
|
LTC2497CUHF#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2497CUHF#TRPBF
Analog Devices Inc
16-Bit 8-/16-Channel ΔΣ ADC with Easy Drive Input Current Cancellation and I<sup>2</sup>C Interface
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 5 X 7 MM, LEAD FREE, PLASTIC, MO-220WHKD, QFN-38 | |
| Pin Count | 38 | |
| Manufacturer Package Code | 05-08-1701 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 149900 µs | |
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | R-PQCC-N38 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 16 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 38 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC38,.2X.28,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
Alternate Parts for LTC2497CUHF#TRPBF
This table gives cross-reference parts and alternative options found for LTC2497CUHF#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2497CUHF#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2497IUHF#TR | Linear Technology | Check for Price | LTC2497 - 16-Bit 8-/16-Channel Delta Sigma ADC with Easy Drive Input Current Cancellation and I2C Interface; Package: QFN; Pins: 38; Temperature Range: -40°C to 85°C | LTC2497CUHF#TRPBF vs LTC2497IUHF#TR |
| LTC2497CUHF#TR | Analog Devices Inc | Check for Price | ADC, Delta-Sigma, 16-Bit, 1 Func, 16 Channel, Serial Access, PQCC38 | LTC2497CUHF#TRPBF vs LTC2497CUHF#TR |
LTC2497CUHF#TRPBF Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the LTC2497CUHF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To optimize the performance of the LTC2497CUHF in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter or a differential amplifier to reject common-mode noise.
-
The maximum sampling rate of the LTC2497CUHF is 15ksps (kilo-samples per second) for the 18-bit mode and 30ksps for the 16-bit mode.
-
The LTC2497CUHF has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence, which takes approximately 100ms to complete.
-
The power consumption of the LTC2497CUHF is typically 35mW at 3.3V supply voltage and 15ksps sampling rate.
