LTC2378IMS-20#PBF by:

20-Bit, 1Msps, Low Power SAR ADC with 0.5ppm INL

Part Details for LTC2378IMS-20#PBF by Analog Devices Inc

Results Overview of LTC2378IMS-20#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

LTC2378IMS-20#PBF Information

LTC2378IMS-20#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for LTC2378IMS-20#PBF

Part # Distributor Description Stock Price Buy
DISTI # 50AK2374
Newark Adc, 20Bit, 1Msps, Msop-16, Resolution (Bits):20Bit, Sampling Rate:1Msps, Input Channel Type:Differential, Data Interface:Spi, Supply Voltage Type:Single, Supply Voltage Min:2.375V, Supply Voltage Max:2.625V, No. Of Pins:16Pins Rohs Compliant: Yes |Analog Devices LTC2378IMS-20#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 18
  • 1 $64.0800
  • 5 $57.0500
  • 10 $50.3100
$50.3100 / $64.0800 Buy Now
DISTI # 505-LTC2378IMS-20#PBF-ND
DigiKey IC ADC 20BIT SAR 16MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube 75
In Stock
  • 1 $64.0800
  • 10 $50.0120
$50.0120 / $64.0800 Buy Now
DISTI # 584-LTC2378IMS-20PBF
Mouser Electronics Analog to Digital Converters - ADC 20-B, 1Msps, L Pwr SAR ADC w/ 0.5ppm INL RoHS: Compliant 159
  • 1 $67.0600
  • 10 $57.0900
  • 37 $57.0800
$57.0800 / $67.0600 Buy Now
DISTI # V99:2348_06450994
Arrow Electronics 1-Channel Single ADC SAR 1Msps 20-bit Serial 16-Pin MSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2303 Americas - 27
  • 1 $54.2300
  • 10 $50.7800
$50.7800 / $54.2300 Buy Now
Analog Devices Inc 20-B, 1Msps, L Pwr SAR ADC w/ Package Multiple: 37 11115
  • 1 $64.0800
  • 10 $50.0120
  • 1,000 $40.0100
$40.0100 / $64.0800 Buy Now
DISTI # 42660389
Verical 1-Channel Single ADC SAR 1Msps 20-bit Serial 16-Pin MSOP Tube RoHS: Compliant Min Qty: 37 Package Multiple: 37 Americas - 11100
  • 37 $49.4867
$49.4867 Buy Now
DISTI # LTC2378IMS-20PB
Richardson RFPD CONVERTER - ADC RoHS: Compliant Min Qty: 37 0
  • 37 $60.0200
  • 100 $56.6800
  • 500 $55.1500
  • 1,000 $53.6900
  • 5,000 $51.6600
$51.6600 / $60.0200 Buy Now

Part Details for LTC2378IMS-20#PBF

LTC2378IMS-20#PBF CAD Models

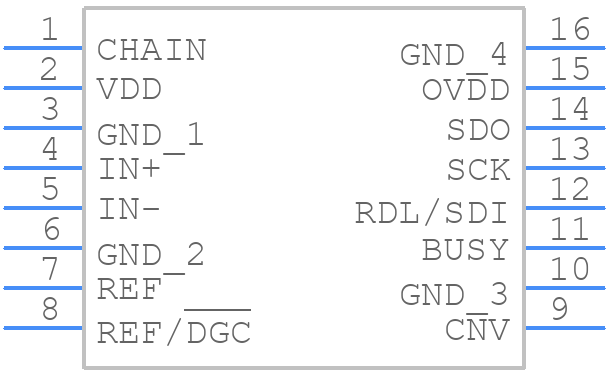

  • Part Symbol
