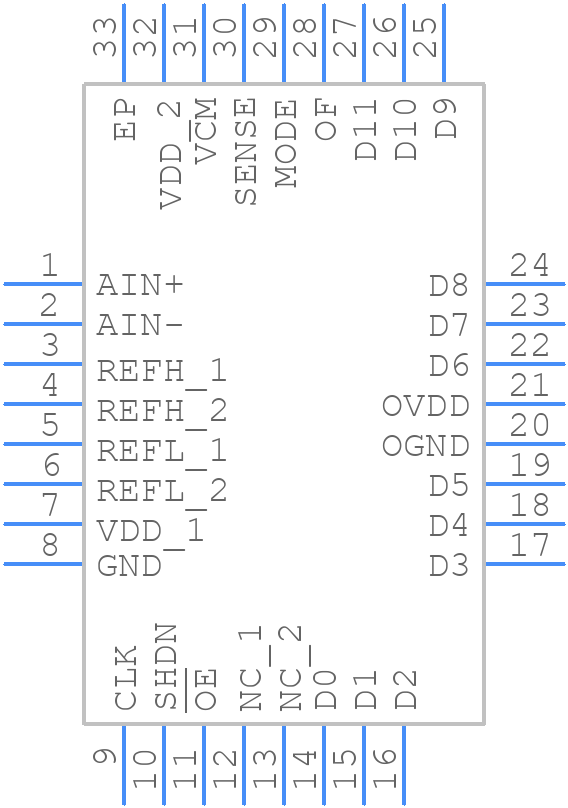

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC2252IUH#PBF by Analog Devices Inc
Results Overview of LTC2252IUH#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC2252IUH#PBF Information
LTC2252IUH#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2252IUH#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6438
|
Newark | Adc, 12Bit, 105Msps, Qfn-32, Resolution (Bits):12Bit, Sampling Rate:105Msps, Input Channel Type:Differential, Single Ended, Data Interface:Parallel, Supply Voltage Type:Single, Supply Voltage Min:2.85V, Supply Voltage Max:3.4V Rohs Compliant: Yes |Analog Devices LTC2252IUH#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2 |
|
$44.7200 / $58.2500 | Buy Now |
|
DISTI #
505-LTC2252IUH#PBF-ND
|
DigiKey | IC ADC 12BIT PIPELINED 32QFN Min Qty: 1 Lead time: 13 Weeks Container: Tube |
63 In Stock |
|
$44.4620 / $58.2500 | Buy Now |
|
DISTI #
584-LTC2252IUH#PBF
|
Mouser Electronics | Analog to Digital Converters - ADC 12-B, 105Msps L Pwr 3V ADCs RoHS: Compliant | 0 |
|
$50.4200 / $62.5300 | Order Now |
|
|
Analog Devices Inc | 12-B, 105Msps L Pwr 3V ADCs Package Multiple: 73 | 4247 |
|
$35.5700 / $45.5800 | Buy Now |
|
DISTI #
35215013
|
Verical | 1-Channel Single ADC Pipelined 105Msps 12-bit Parallel 32-Pin QFN EP Tube RoHS: Compliant Min Qty: 73 Package Multiple: 73 | Americas - 4234 |
|
$43.9951 | Buy Now |
|
DISTI #
LTC2252IUH#PBF
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 73 | 0 |
|
$45.9300 / $53.3600 | Buy Now |
Part Details for LTC2252IUH#PBF
LTC2252IUH#PBF CAD Models
LTC2252IUH#PBF Part Data Attributes
|
|
LTC2252IUH#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2252IUH#PBF
Analog Devices Inc
12-Bit, 105Msps Low Power 3V ADCs
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 32 | |
| Manufacturer Package Code | 05-08-1693 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 1 V | |
| Analog Input Voltage-Min | -1 V | |
| Converter Type | ADC, PROPRIETARY METHOD | |
| JESD-30 Code | S-PQCC-N32 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0366% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 105 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
Alternate Parts for LTC2252IUH#PBF
This table gives cross-reference parts and alternative options found for LTC2252IUH#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2252IUH#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2252CUH#PBF | Analog Devices Inc | $41.9175 | 12-Bit, 105Msps Low Power 3V ADCs | LTC2252IUH#PBF vs LTC2252CUH#PBF |
| LTC2252CUH | Analog Devices Inc | Check for Price | ADC, Proprietary Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PQCC32 | LTC2252IUH#PBF vs LTC2252CUH |
| LTC2252CUH#TRPBF | Linear Technology | Check for Price | LTC2252 - 12-Bit, 105Msps Low Power 3V ADCs; Package: QFN; Pins: 32; Temperature Range: 0°C to 70°C | LTC2252IUH#PBF vs LTC2252CUH#TRPBF |
| LTC2252IUH | Linear Technology | Check for Price | LTC2252 - 12-Bit, 105Msps Low Power 3V ADCs; Package: QFN; Pins: 32; Temperature Range: -40°C to 85°C | LTC2252IUH#PBF vs LTC2252IUH |
| LTC2252IUH#TR | Linear Technology | Check for Price | LTC2252 - 12-Bit, 105Msps Low Power 3V ADCs; Package: QFN; Pins: 32; Temperature Range: -40°C to 85°C | LTC2252IUH#PBF vs LTC2252IUH#TR |
| LTC2252CUH#TR | Linear Technology | Check for Price | LTC2252 - 12-Bit, 105Msps Low Power 3V ADCs; Package: QFN; Pins: 32; Temperature Range: 0°C to 70°C | LTC2252IUH#PBF vs LTC2252CUH#TR |
| LTC2252CUH#PBF | Linear Technology | Check for Price | LTC2252 - 12-Bit, 105Msps Low Power 3V ADCs; Package: QFN; Pins: 32; Temperature Range: 0°C to 70°C | LTC2252IUH#PBF vs LTC2252CUH#PBF |
| LTC2252CUH#TRPBF | Analog Devices Inc | Check for Price | 12-Bit, 105Msps Low Power 3V ADCs | LTC2252IUH#PBF vs LTC2252CUH#TRPBF |
| LTC2252CUH#TR | Analog Devices Inc | Check for Price | ADC, Proprietary Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PQCC32 | LTC2252IUH#PBF vs LTC2252CUH#TR |
| LTC2252IUH#PBF | Linear Technology | Check for Price | LTC2252 - 12-Bit, 105Msps Low Power 3V ADCs; Package: QFN; Pins: 32; Temperature Range: -40°C to 85°C | LTC2252IUH#PBF vs LTC2252IUH#PBF |
LTC2252IUH#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC2252IUH involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
The LTC2252IUH requires a clean and stable power supply. Use a high-quality voltage regulator and decouple the power pins with 0.1uF and 10uF capacitors. Add a 10uF capacitor between the analog and digital power pins for additional noise reduction.
-
The maximum clock frequency for the LTC2252IUH is 100 MSPS. However, the actual achievable clock frequency may be limited by the system's noise floor, signal integrity, and PCB layout.
-
To optimize the LTC2252IUH for low-power applications, use the lowest possible clock frequency, reduce the analog supply voltage, and use the power-down mode when not in use. Additionally, consider using a lower-power variant of the device, such as the LTC2252IUHL.
-
The recommended input signal range for the LTC2252IUH is 0.5V to 2.5V, with a maximum differential input voltage of 5V. Exceeding this range may result in reduced accuracy or damage to the device.
