LTC2240IUP-10#PBF by:

10-Bit, 170Msps ADC

Part Details for LTC2240IUP-10#PBF by Analog Devices Inc

Results Overview of LTC2240IUP-10#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation

LTC2240IUP-10#PBF Information

LTC2240IUP-10#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for LTC2240IUP-10#PBF

Part # Distributor Description Stock Price Buy
DISTI # LTC2240IUP-10#PBF-ND
DigiKey IC ADC 10BIT PIPELINED 64QFN Min Qty: 1 Lead time: 26 Weeks Container: Tube 33
In Stock
  • 1 $58.0700
  • 10 $44.2880
$44.2880 / $58.0700 Buy Now
DISTI # 584-LTC2240IUP-10PBF
Mouser Electronics Analog to Digital Converters - ADC 10-B, 170Msps ADC RoHS: Compliant 0
  • 40 $56.0000
$56.0000 Order Now
DISTI # V36:1790_17771957
Arrow Electronics 1-Channel Single ADC Pipelined 170Msps 10-bit Parallel 64-Pin QFN EP Tube RoHS: Compliant Min Qty: 40 Package Multiple: 40 Lead time: 13 Weeks Date Code: 0625 Americas - 5
  • 40 $29.0900
$29.0900 Buy Now
Analog Devices Inc 10-B, 170Msps ADC Package Multiple: 40 7
  • 1 $58.0700
  • 10 $44.2880
  • 1,000 $35.4300
$35.4300 / $58.0700 Buy Now
DISTI # LTC2240IUP-10PB
Richardson RFPD CONVERTER - ADC RoHS: Compliant Min Qty: 40 0
  • 40 $53.1400
  • 100 $50.1900
  • 500 $48.8400
  • 1,000 $47.5500
  • 5,000 $45.7500
$45.7500 / $53.1400 Buy Now

Part Details for LTC2240IUP-10#PBF

LTC2240IUP-10#PBF CAD Models

  • Part Symbol

    Part Symbol

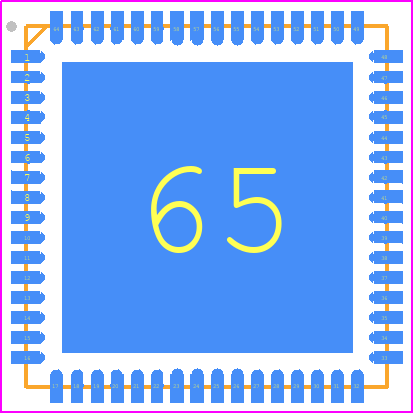

  • Footprint

    footprint

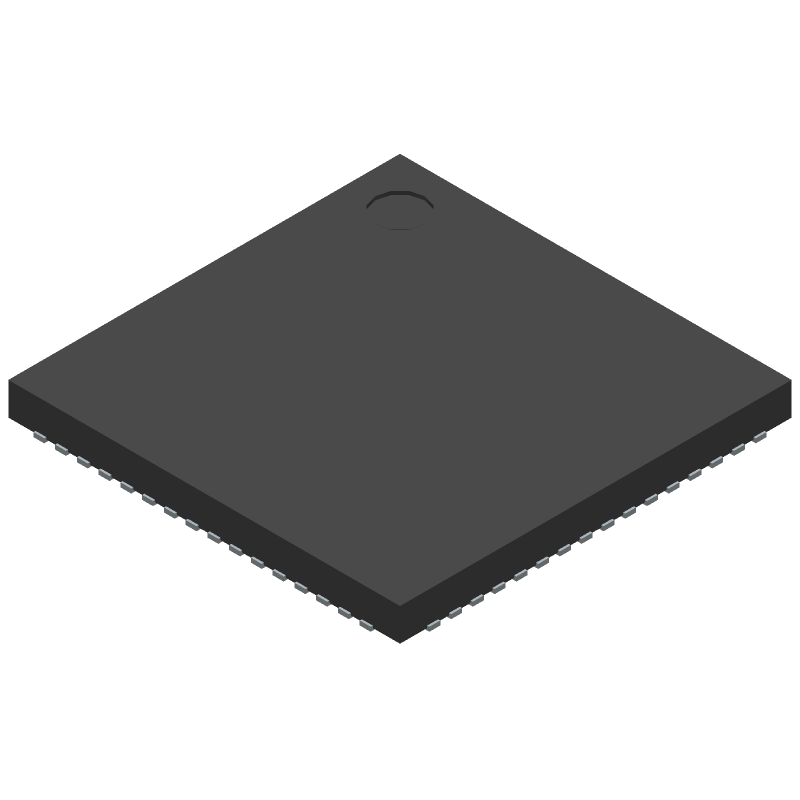

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LTC2240IUP-10#PBF Part Data Attributes

Parametric Data
LTC2240IUP-10#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LTC2240IUP-10#PBF Analog Devices Inc 10-Bit, 170Msps ADC
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description 9 X 9 MM, LEAD FREE, PLASTIC, MO-220, QFN-64
Pin Count 64
Manufacturer Package Code 05-08-1705
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Analog Input Voltage-Max 1 V
Analog Input Voltage-Min -1 V
Converter Type ADC, PROPRIETARY METHOD
JESD-30 Code S-PQCC-N64
JESD-609 Code e3
Length 9 mm
Linearity Error-Max (EL) 0.0977%
Moisture Sensitivity Level 3
Number of Analog In Channels 1
Number of Bits 10
Number of Functions 1
Number of Terminals 64
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Bit Code OFFSET BINARY, 2'S COMPLEMENT BINARY
Output Format PARALLEL, WORD
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC64,.35SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Sample Rate 170 MHz
Sample and Hold / Track and Hold SAMPLE
Seated Height-Max 0.8 mm
Supply Voltage-Nom 2.5 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 9 mm

Alternate Parts for LTC2240IUP-10#PBF

This table gives cross-reference parts and alternative options found for LTC2240IUP-10#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2240IUP-10#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LTC2240IUP-10#TR Analog Devices Inc Check for Price ADC, Proprietary Method, 10-Bit, 1 Func, 1 Channel, Parallel, Word Access, PQCC64 LTC2240IUP-10#PBF vs LTC2240IUP-10#TR
LTC2240IUP-10#TRPBF Linear Technology Check for Price LTC2240-10 - 10-Bit, 170Msps ADC; Package: QFN; Pins: 64; Temperature Range: -40°C to 85°C LTC2240IUP-10#PBF vs LTC2240IUP-10#TRPBF
LTC2240IUP-10 Analog Devices Inc Check for Price ADC, Proprietary Method, 10-Bit, 1 Func, 1 Channel, Parallel, Word Access, PQCC64 LTC2240IUP-10#PBF vs LTC2240IUP-10
LTC2240CUP-10 Analog Devices Inc Check for Price ADC, Proprietary Method, 10-Bit, 1 Func, 1 Channel, Parallel, Word Access, PQCC64 LTC2240IUP-10#PBF vs LTC2240CUP-10
LTC2240IUP-10 Linear Technology Check for Price LTC2240-10 - 10-Bit, 170Msps ADC; Package: QFN; Pins: 64; Temperature Range: -40°C to 85°C LTC2240IUP-10#PBF vs LTC2240IUP-10
LTC2240CUP-10#PBF Analog Devices Inc Check for Price 10-Bit, 170Msps ADC LTC2240IUP-10#PBF vs LTC2240CUP-10#PBF
LTC2240CUP-10 Linear Technology Check for Price LTC2240-10 - 10-Bit, 170Msps ADC; Package: QFN; Pins: 64; Temperature Range: 0°C to 70°C LTC2240IUP-10#PBF vs LTC2240CUP-10
LTC2240IUP-10#TR Linear Technology Check for Price LTC2240-10 - 10-Bit, 170Msps ADC; Package: QFN; Pins: 64; Temperature Range: -40°C to 85°C LTC2240IUP-10#PBF vs LTC2240IUP-10#TR
LTC2240CUP-10#TR Linear Technology Check for Price LTC2240-10 - 10-Bit, 170Msps ADC; Package: QFN; Pins: 64; Temperature Range: 0°C to 70°C LTC2240IUP-10#PBF vs LTC2240CUP-10#TR
Part Number Manufacturer Composite Price Description Compare
LTC2240IUP-10#PBF Linear Technology Check for Price LTC2240-10 - 10-Bit, 170Msps ADC; Package: QFN; Pins: 64; Temperature Range: -40°C to 85°C LTC2240IUP-10#PBF vs LTC2240IUP-10#PBF
LTC2221CUP#TR Analog Devices Inc Check for Price ADC, Proprietary Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PQCC64 LTC2240IUP-10#PBF vs LTC2221CUP#TR
LTC2242CUP-10#PBF Analog Devices Inc Check for Price 10-Bit, 250Msps ADC LTC2240IUP-10#PBF vs LTC2242CUP-10#PBF
LTC2230CUP Analog Devices Inc Check for Price ADC, Proprietary Method, 10-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PQCC64 LTC2240IUP-10#PBF vs LTC2230CUP
LTC2220CUP-1#TR Linear Technology Check for Price LTC2220-1 - 12-Bit, 185Msps ADC; Package: QFN; Pins: 64; Temperature Range: 0°C to 70°C LTC2240IUP-10#PBF vs LTC2220CUP-1#TR
LTC2241IUP-10#TRPBF Analog Devices Inc Check for Price 10-Bit, 210Msps ADC LTC2240IUP-10#PBF vs LTC2241IUP-10#TRPBF
LTC2241IUP-12#TR Linear Technology Check for Price LTC2241-12 - 12-Bit, 210Msps ADC; Package: QFN; Pins: 64; Temperature Range: -40°C to 85°C LTC2240IUP-10#PBF vs LTC2241IUP-12#TR
LTC2230IUP#TR Analog Devices Inc Check for Price ADC, Proprietary Method, 10-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PQCC64 LTC2240IUP-10#PBF vs LTC2230IUP#TR
LTC2241CUP-12 Analog Devices Inc Check for Price ADC, Proprietary Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, PQCC64 LTC2240IUP-10#PBF vs LTC2241CUP-12
LTC2231IUP#PBF Linear Technology Check for Price LTC2231 - 10-Bit, 135Msps ADCs; Package: QFN; Pins: 64; Temperature Range: -40°C to 85°C LTC2240IUP-10#PBF vs LTC2231IUP#PBF
