LTC2063ISC6#TRMPBF Information
LTC2063ISC6#TRMPBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LTC2063ISC6#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2272
|
Newark | Op-Amp, 20Khz, -40 To 85Deg C, Sc-70-6, No. Of Channels:1Channels, Gain Bandwidth Product:20Khz, Supply Voltage Range:1.7V To 5.25V, Ic Case/Package:Sc-70, No. Of Pins:6Pins, Amplifier Type:Zero Drift, Input Offset Voltage:1Μv Rohs Compliant: Yes |Analog Devices LTC2063ISC6#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 539 |
|
$1.6100 / $3.3000 | Buy Now |
|
DISTI #
505-LTC2063ISC6#TRMPBFCT-ND
|
DigiKey | IC OPAMP ZERO-DRIFT 1CIRC SC70-6 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
21848 In Stock |
|
$1.6125 / $4.6600 | Buy Now |
|
DISTI #
584-2063ISC6TRMPBF
|
Mouser Electronics | Operational Amplifiers - Op Amps 2 A Supply Current, Low IB, Zero-Drift Operational Amplifiers RoHS: Compliant | 6689 |
|
$1.6100 / $3.3000 | Buy Now |
|
|
Analog Devices Inc | 2µA S C, L IB, Zero-Drift Op A Package Multiple: 500 | 7870 |
|
$1.2900 / $4.6600 | Buy Now |
|
DISTI #
35218082
|
Verical | Op Amp Single Auto Zero/Chopper R-R I/O 5.25V Medical 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 3500 |
|
$1.5955 | Buy Now |
|
DISTI #
LTC2063ISC6TRMP
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 500 | 0 |
|
$1.6600 / $1.7700 | Buy Now |
Part Details for LTC2063ISC6#TRMPBF

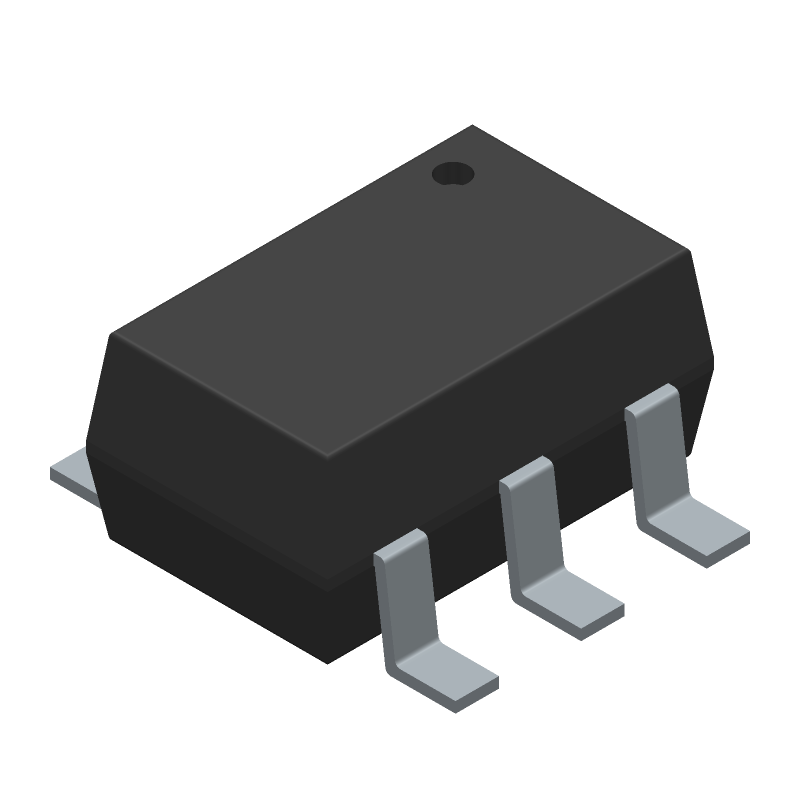

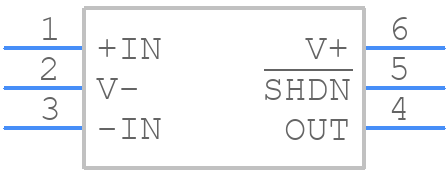

LTC2063ISC6#TRMPBF CAD Models
LTC2063ISC6#TRMPBF Part Data Attributes
|
|
LTC2063ISC6#TRMPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2063ISC6#TRMPBF
Analog Devices Inc
2µA Supply Current, Low IB, Zero-Drift Operational Amplifiers
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | SC-70, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | 05-08-1638 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Common-mode Reject Ratio-Min | 103 dB | |
| Common-mode Reject Ratio-Nom | 130 dB | |
| Frequency Compensation | NO | |
| Input Offset Voltage-Max | 10 µV | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Low-Bias | YES | |
| Low-Offset | YES | |
| Micropower | YES | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programmable Power | NO | |
| Seated Height-Max | 1 mm | |
| Slew Rate-Nom | 3500 V/us | |
| Supply Current-Max | 0.25 mA | |
| Supply Voltage Limit-Max | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 20 | |
| Wideband | NO | |
| Width | 1.25 mm |
