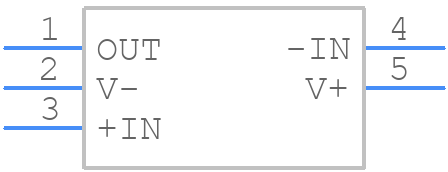

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC2050HVIS5#TRMPBF by Analog Devices Inc
Results Overview of LTC2050HVIS5#TRMPBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC2050HVIS5#TRMPBF Information
LTC2050HVIS5#TRMPBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LTC2050HVIS5#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2235
|
Newark | Op-Amp, 3Mhz, -40 To 85Deg C, Tsot-23-5, No. Of Channels:1Channels, Gain Bandwidth Product:3Mhz, Supply Voltage Range:2.7V To ± 5.5V, Ic Case/Package:Tsot-23, No. Of Pins:5Pins, Amplifier Type:Zero Drift, Input Offset Voltage:0.5Μvrohs Compliant: Yes |Analog Devices LTC2050HVIS5#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 527 |
|
$2.5700 / $5.3900 | Buy Now |
|
DISTI #
505-LTC2050HVIS5#TRMPBFCT-ND
|
DigiKey | IC OPAMP ZER-DRIFT 1CIR TSOT23-5 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
10349 In Stock |
|
$2.2500 / $5.9300 | Buy Now |
|
DISTI #
584-C2050HVIS5TRMPBF
|
Mouser Electronics | Precision Amplifiers Zero-Drift Op Amps in SOT-23 RoHS: Compliant | 1463 |
|
$2.3200 / $4.4500 | Buy Now |
|
|
Analog Devices Inc | Zero-Drift Op Amps in SOT-23 Package Multiple: 500 | 2070 |
|
$2.2500 / $5.9300 | Buy Now |
|
DISTI #
LTC2050HVIS5TRMPBF
|
TME | IC: operational amplifier, 3MHz, Ch: 1, TSOT23, IB: 4nA, Iio: 1nA Min Qty: 1 | 0 |
|
$3.1100 / $4.3500 | RFQ |
|
DISTI #
LTC2050HVIS5TRM
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 500 | 0 |
|
$2.3300 / $2.4800 | Buy Now |
Part Details for LTC2050HVIS5#TRMPBF
LTC2050HVIS5#TRMPBF CAD Models
LTC2050HVIS5#TRMPBF Part Data Attributes
|
|
LTC2050HVIS5#TRMPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2050HVIS5#TRMPBF
Analog Devices Inc
High Voltage Zero-Drift Operational Amplifier in SOT-23 with Extended Temperature Range
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LEAD FREE, PLASTIC, MO-193, TSOT-23, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | 05-08-1635 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.0003 µA | |
| Common-mode Reject Ratio-Nom | 130 dB | |
| Input Offset Voltage-Max | 3 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Slew Rate-Nom | 2 V/us | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 3000 | |
| Width | 1.625 mm |
Alternate Parts for LTC2050HVIS5#TRMPBF
This table gives cross-reference parts and alternative options found for LTC2050HVIS5#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2050HVIS5#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2050HVCS5#TRMPBF | Analog Devices Inc | $2.4862 | High Voltage Zero-Drift Operational Amplifier in SOT-23 with Extended Temperature Range | LTC2050HVIS5#TRMPBF vs LTC2050HVCS5#TRMPBF |
| LTC2050HVIS5#TRM | Linear Technology | Check for Price | LTC2050 - Zero-Drift Operational Amplifiers in SOT-23; Package: SOT; Pins: 5; Temperature Range: -40°C to 85°C | LTC2050HVIS5#TRMPBF vs LTC2050HVIS5#TRM |
| LTC2050HVIS5#TRMPBF | Linear Technology | Check for Price | LTC2050 - Zero-Drift Operational Amplifiers in SOT-23; Package: SOT; Pins: 5; Temperature Range: -40°C to 85°C | LTC2050HVIS5#TRMPBF vs LTC2050HVIS5#TRMPBF |
| LTC2050HVCS5#TRMPBF | Linear Technology | Check for Price | LTC2050 - Zero-Drift Operational Amplifiers in SOT-23; Package: SOT; Pins: 5; Temperature Range: 0°C to 70°C | LTC2050HVIS5#TRMPBF vs LTC2050HVCS5#TRMPBF |
LTC2050HVIS5#TRMPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC2050 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g., 10Ω) in series with the output can help dampen oscillations.
-
The LTC2050 can handle input voltages up to 36V, but it's recommended to limit the input voltage to 30V or less to ensure reliable operation and to prevent damage to the device.
-
The LTC2050 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's performance and ensure proper heat sinking to prevent overheating.
-
To troubleshoot issues with the LTC2050, start by checking the input voltage, output voltage, and current draw. Use an oscilloscope to check for oscillations or noise on the output. Verify that the component values and PCB layout match the recommended design. If issues persist, consult the datasheet and application notes or contact Analog Devices' support team.
