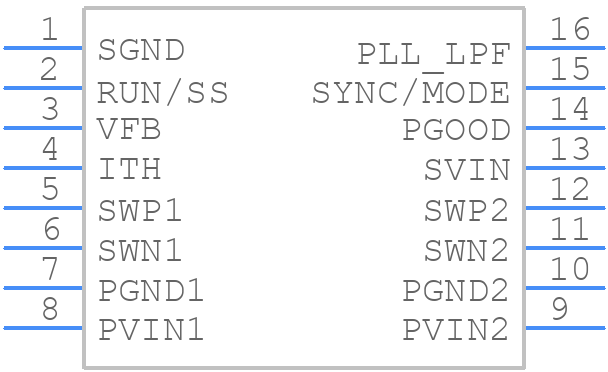

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1875EGN#PBF by Analog Devices Inc
Results Overview of LTC1875EGN#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTC1875EGN#PBF Information
LTC1875EGN#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC1875EGN#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6342
|
Newark | Dc/Dc Conv, Sync Buck, 550Khz, 85Deg C, No. Of Outputs:1Outputs, Topology:Synchronous Buck (Step Down), Input Voltage Min:2.65V, Input Voltage Max:6V, Max Output Current:1.5A, Ic Case/Package:Nssop, No. Of Pins:16Pins Rohs Compliant: Yes |Analog Devices LTC1875EGN#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 74 |
|
$5.4400 / $9.0000 | Buy Now |
|
DISTI #
LTC1875EGN#PBF-ND
|
DigiKey | IC REG BUCK ADJ 1.5A 16SSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
99 In Stock |
|
$5.2375 / $11.0500 | Buy Now |
|
DISTI #
584-LTC1875EGN#PBF
|
Mouser Electronics | Switching Voltage Regulators 15 A Quiescent Current 1.5A Monolithic Synchronous Step-Down Regulator RoHS: Compliant | 2587 |
|
$5.2300 / $9.0000 | Buy Now |
|
DISTI #
V36:1790_06442371
|
Arrow Electronics | Conv DC-DC 2.65V to 6V Synchronous Step Down Single-Out 0.8V to 6V 1.5A 16-Pin SSOP N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2108 | Americas - 25 |
|
$5.0560 / $5.0620 | Buy Now |
|
|
Analog Devices Inc | 15µA Q C 1.5A Mono Sync Buck R Package Multiple: 100 | 320 |
|
$4.1900 / $11.0500 | Buy Now |
|
DISTI #
LTC1875EGNPBF
|
TME | PMIC, DC/DC converter, Uin: 2.65÷6VDC, Uout: 0.8÷6VDC, 2.15A, SMD Min Qty: 1 | 0 |
|
$6.4800 / $8.8000 | RFQ |
|
DISTI #
LTC1875EGN#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 100 | 0 |
|
$5.4100 / $5.9400 | Buy Now |
Part Details for LTC1875EGN#PBF
LTC1875EGN#PBF CAD Models
LTC1875EGN#PBF Part Data Attributes
|
|
LTC1875EGN#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1875EGN#PBF
Analog Devices Inc
15µA Quiescent Current 1.5A Monolithic Synchronous Step-Down Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, PLASTIC, SSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1641 (GN16) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 2.65 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 605 kHz | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9116 mm |
Alternate Parts for LTC1875EGN#PBF
This table gives cross-reference parts and alternative options found for LTC1875EGN#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1875EGN#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1875EGN#TR | Linear Technology | Check for Price | LTC1875 - 15µA Quiescent Current 1.5A Monolithic Synchronous Step-Down Regulator; Package: SSOP; Pins: 16; Temperature Range: -40°C to 85°C | LTC1875EGN#PBF vs LTC1875EGN#TR |
LTC1875EGN#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LTC1875EGN is 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 60V for optimal performance and reliability.
-
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the feedback resistor.
-
The maximum output current that the LTC1875EGN can deliver is 3A, but it's recommended to operate within the specified output current range of 0A to 2.5A for optimal performance and reliability.
-
To protect the LTC1875EGN from overcurrent and overheating, it's recommended to add overcurrent protection circuitry, such as a current sense resistor and a comparator, and to ensure proper thermal design and heat sinking.
-
Yes, the LTC1875EGN can be used in high-temperature applications, but it's essential to follow the recommended operating temperature range of -40°C to 125°C and to ensure proper thermal design and heat sinking to prevent overheating.
