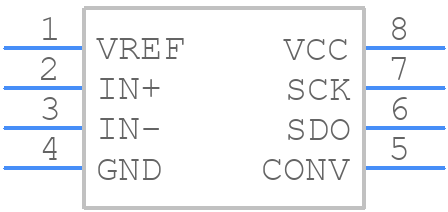

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1860IMS8#PBF by Analog Devices Inc
Results Overview of LTC1860IMS8#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC1860IMS8#PBF Information
LTC1860IMS8#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC1860IMS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6305
|
Newark | Adc, 12Bit, 250Ksps, Msop-8, Resolution (Bits):12Bit, Sampling Rate:250Ksps, Input Channel Type:Differential, Data Interface:3 Wire, Microwire, Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:4.75V, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices LTC1860IMS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 153 |
|
$4.6300 / $8.1300 | Buy Now |
|
DISTI #
LTC1860IMS8#PBF-ND
|
DigiKey | IC ADC 12BIT SAR 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
563 In Stock |
|
$4.3875 / $9.6800 | Buy Now |
|
DISTI #
584-LTC1860IMS8#PBF
|
Mouser Electronics | Analog to Digital Converters - ADC Power, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP RoHS: Compliant | 116 |
|
$4.5600 / $8.1300 | Buy Now |
|
DISTI #
V36:1790_06442949
|
Arrow Electronics | 1-Channel Single ADC SAR 250ksps 12-bit Serial 8-Pin MSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2320 | Americas - 195 |
|
$4.8804 | Buy Now |
|
|
Analog Devices Inc | µPwr, 12-B, 250ksps 1- & 2-Ch Package Multiple: 50 | 913 |
|
$3.5100 / $9.6800 | Buy Now |
|
DISTI #
LTC1860IMS8#PBF
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 100 | 0 |
|
$4.5300 / $4.9800 | Buy Now |
Part Details for LTC1860IMS8#PBF
LTC1860IMS8#PBF CAD Models
LTC1860IMS8#PBF Part Data Attributes
|
|
LTC1860IMS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1860IMS8#PBF
Analog Devices Inc
µPower, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1660 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 3.2 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.25 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LTC1860IMS8#PBF
This table gives cross-reference parts and alternative options found for LTC1860IMS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1860IMS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1860HMS8#TRPBF | Analog Devices Inc | Check for Price | µPower, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP | LTC1860IMS8#PBF vs LTC1860HMS8#TRPBF |
| LTC1860IMS8 | Linear Technology | Check for Price | LTC1860 - µPower, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP; Package: MSOP; Pins: 8; Temperature Range: -40°C to 85°C | LTC1860IMS8#PBF vs LTC1860IMS8 |
| LTC1860HMS8#PBF | Analog Devices Inc | Check for Price | µPower, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP | LTC1860IMS8#PBF vs LTC1860HMS8#PBF |
| LTC1860IMS8#TRPBF | Linear Technology | Check for Price | LTC1860 - µPower, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP; Package: MSOP; Pins: 8; Temperature Range: -40°C to 85°C | LTC1860IMS8#PBF vs LTC1860IMS8#TRPBF |
| LTC1860CMS8#TRPBF | Linear Technology | Check for Price | LTC1860 - µPower, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP; Package: MSOP; Pins: 8; Temperature Range: 0°C to 70°C | LTC1860IMS8#PBF vs LTC1860CMS8#TRPBF |
| LTC1860HMS8#PBF | Linear Technology | Check for Price | LTC1860 - µPower, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP; Package: MSOP; Pins: 8; Temperature Range: -40°C to 125°C | LTC1860IMS8#PBF vs LTC1860HMS8#PBF |
| LTC1860CMS8 | Linear Technology | Check for Price | LTC1860 - µPower, 12-Bit, 250ksps 1- and 2-Channel ADCs in MSOP; Package: MSOP; Pins: 8; Temperature Range: 0°C to 70°C | LTC1860IMS8#PBF vs LTC1860CMS8 |
LTC1860IMS8#PBF Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the LTC1860IMS8#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog power supply. Additionally, it's recommended to keep the input and output traces short and away from digital signals.
-
To ensure the LTC1860IMS8#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. The device's thermal pad should be connected to a solid ground plane to dissipate heat efficiently.
-
Potential sources of noise and interference that can affect the LTC1860IMS8#PBF's performance include digital clock noise, switching power supply noise, electromagnetic interference (EMI), and radio-frequency interference (RFI). Proper layout, grounding, and shielding can help minimize these effects.
-
To troubleshoot issues with the LTC1860IMS8#PBF, start by verifying the input voltage, output voltage, and feedback resistors. Check for proper grounding, decoupling, and layout. Use an oscilloscope to inspect the output waveform and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
-
When selecting output capacitors and resistors for the LTC1860IMS8#PBF, consider the output voltage, output current, and desired stability. Choose capacitors with low equivalent series resistance (ESR) and a high ripple current rating. Select resistors with low tolerance and temperature coefficient to ensure accurate voltage regulation.
