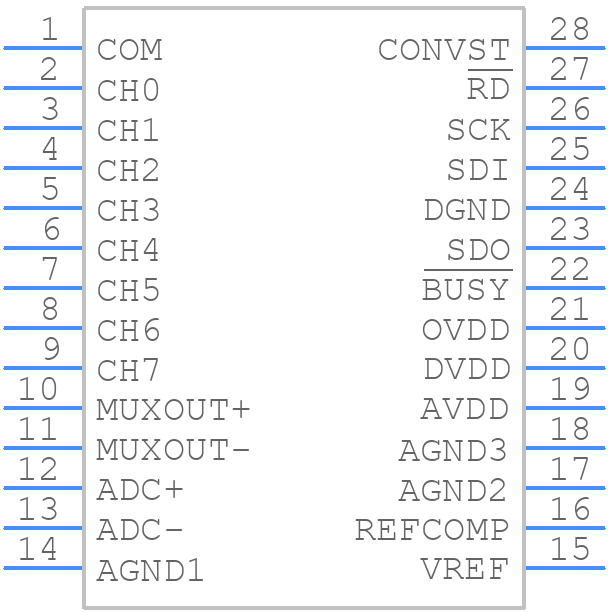

Part Symbol
-

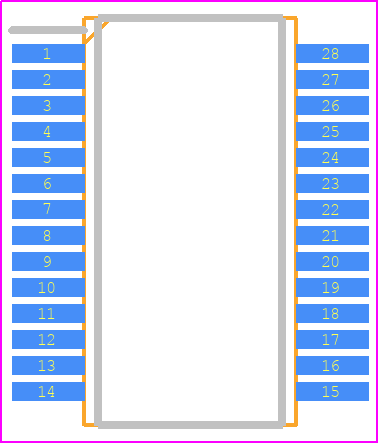

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1859CG#TRPBF by Analog Devices Inc
Results Overview of LTC1859CG#TRPBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC1859CG#TRPBF Information
LTC1859CG#TRPBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC1859CG#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-LTC1859CG#TRPBFTR-ND
|
DigiKey | IC ADC 16BIT SAR 28SSOP Min Qty: 2000 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$29.2250 | Buy Now |
|
DISTI #
584-LTC1859CG#TRPBF
|
Mouser Electronics | Analog to Digital Converters - ADC 8-Ch, 16-B, 100ksps SoftSpan A/D Convs w RoHS: Compliant | 0 |
|
$29.2200 | Order Now |
|
|
Analog Devices Inc | 8-Ch, 16-B, 100ksps SoftSpan A Min Qty: 2000 Package Multiple: 2000 | 2000 |
|
$23.3800 / $45.7800 | Buy Now |
|
DISTI #
LTC1859CG#TRPBF
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 2000 | 0 |
|
$30.1800 / $31.3800 | Buy Now |
|
|
Win Source Electronics | IC ADC 16BIT SAR 28SSOP / 16 Bit Analog to Digital Converter 8 Input 1 SAR 28-SSOP | 1898 |
|
$80.3487 / $97.0870 | Buy Now |
Part Details for LTC1859CG#TRPBF
LTC1859CG#TRPBF CAD Models
LTC1859CG#TRPBF Part Data Attributes
|
|
LTC1859CG#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1859CG#TRPBF
Analog Devices Inc
8-Channel, 16-Bit, 100ksps SoftSpan A/D Converters with Shutdown
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 05-08-1640 (G28) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 10 V | |
| Analog Input Voltage-Min | -10 V | |
| Conversion Time-Max | 5 µs | |
| Converter Type | ADC, PROPRIETARY METHOD | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 10.2 mm | |
| Linearity Error-Max (EL) | 0.0046% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.1 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
Alternate Parts for LTC1859CG#TRPBF
This table gives cross-reference parts and alternative options found for LTC1859CG#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1859CG#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1859CG#PBF | Analog Devices Inc | $36.0581 | 8-Channel, 16-Bit, 100ksps SoftSpan A/D Converters with Shutdown | LTC1859CG#TRPBF vs LTC1859CG#PBF |
| LTC1859CG | Linear Technology | Check for Price | LTC1859 - 8-Channel, 16-Bit, 100ksps SoftSpan A/D Converters with Shutdown; Package: SSOP; Pins: 28; Temperature Range: 0°C to 70°C | LTC1859CG#TRPBF vs LTC1859CG |
| LTC1859IG#TRPBF | Linear Technology | Check for Price | LTC1859 - 8-Channel, 16-Bit, 100ksps SoftSpan A/D Converters with Shutdown; Package: SSOP; Pins: 28; Temperature Range: -40°C to 85°C | LTC1859CG#TRPBF vs LTC1859IG#TRPBF |
| LTC1859CG#TR | Analog Devices Inc | Check for Price | ADC, Proprietary Method, 16-Bit, 1 Func, 8 Channel, Serial Access, PDSO28 | LTC1859CG#TRPBF vs LTC1859CG#TR |
| LTC1859IG | Analog Devices Inc | Check for Price | ADC, Proprietary Method, 16-Bit, 1 Func, 8 Channel, Serial Access, PDSO28 | LTC1859CG#TRPBF vs LTC1859IG |
| LTC1859IG | Linear Technology | Check for Price | LTC1859 - 8-Channel, 16-Bit, 100ksps SoftSpan A/D Converters with Shutdown; Package: SSOP; Pins: 28; Temperature Range: -40°C to 85°C | LTC1859CG#TRPBF vs LTC1859IG |
| LTC1859CG#TRPBF | Linear Technology | Check for Price | LTC1859 - 8-Channel, 16-Bit, 100ksps SoftSpan A/D Converters with Shutdown; Package: SSOP; Pins: 28; Temperature Range: 0°C to 70°C | LTC1859CG#TRPBF vs LTC1859CG#TRPBF |
LTC1859CG#TRPBF Frequently Asked Questions (FAQ)
-
A good layout and routing is critical for the LTC1859CG. It's recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane to minimize noise and radiation. Additionally, keep the input and output traces short and away from each other to minimize crosstalk.
-
To optimize the performance of the LTC1859CG, it's essential to understand the specific requirements of your application. Consider factors such as input voltage range, output voltage range, and desired accuracy. Then, adjust the gain resistors, input capacitors, and output capacitors accordingly. You may also need to add external filters or buffers to achieve the desired performance.
-
The LTC1859CG is a high-performance ADC, and as such, it can generate heat. Ensure good airflow around the device, and consider using a heat sink if you're operating in a high-temperature environment. Also, be mindful of the thermal resistance of the package and the PCB to ensure reliable operation.
-
When troubleshooting issues with the LTC1859CG, start by verifying the power supply voltage, clock frequency, and input signal integrity. Check for noise, crosstalk, and electromagnetic interference (EMI). Use an oscilloscope to visualize the signals and identify any anomalies. Consult the datasheet and application notes for guidance on specific troubleshooting techniques.
-
Yes, the LTC1859CG is a high-frequency device, and as such, it's essential to consider EMI/EMC in your design. Use shielding, filtering, and grounding techniques to minimize radiation and susceptibility. Ensure that your PCB layout and component selection are EMI/EMC compliant, and follow the guidelines outlined in the datasheet and application notes.
