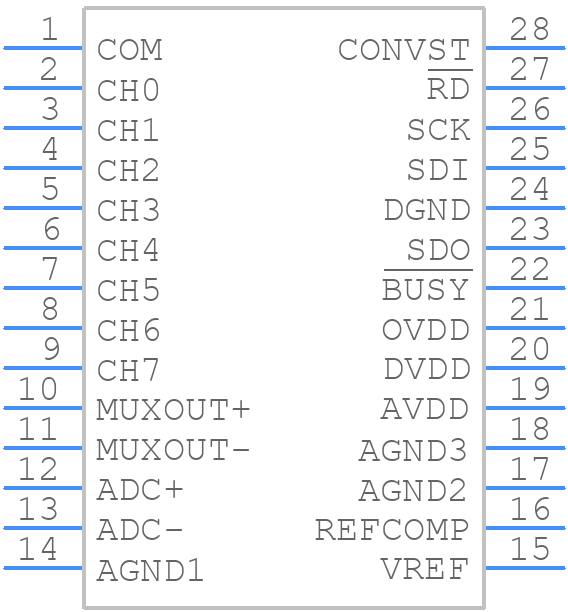

Part Symbol
-

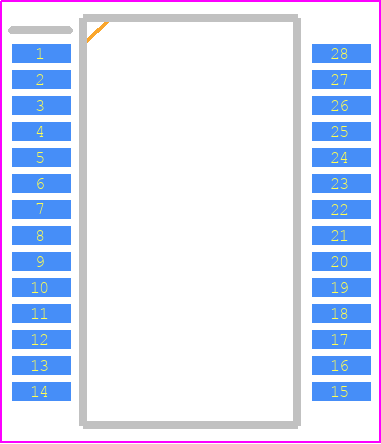

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1858CG#PBF by Analog Devices Inc
Results Overview of LTC1858CG#PBF by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC1858CG#PBF Information
LTC1858CG#PBF by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC1858CG#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4017332
|
Farnell | ADC, 14BIT, 100KSPS, SSOP-28 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 52 |
|
$22.8005 / $36.0964 | Buy Now |
|
DISTI #
505-LTC1858CG#PBF-ND
|
DigiKey | IC ADC 14BIT SAR 28SSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
204 In Stock |
|
$21.1375 / $32.1900 | Buy Now |
|
DISTI #
584-LTC1858CG#PBF
|
Mouser Electronics | Analog to Digital Converters - ADC 8-Ch, 14-B, 100ksps SoftSpan A/D Convs w RoHS: Compliant | 198 |
|
$21.9900 / $33.0600 | Buy Now |
|
DISTI #
V36:1790_06442923
|
Arrow Electronics | 8-Channel Single ADC SAR 100ksps 14-bit Serial 28-Pin SSOP Tube RoHS: Compliant Min Qty: 47 Package Multiple: 47 Lead time: 10 Weeks Date Code: 2406 | Americas - 47 |
|
$20.2200 | Buy Now |
|
|
Analog Devices Inc | 8-Ch, 14-B, 100ksps SoftSpan A Package Multiple: 47 | 1349 |
|
$16.9100 / $32.1900 | Buy Now |
|
DISTI #
83687546
|
Verical | 8-Channel Single ADC SAR 100ksps 14-bit Serial 28-Pin SSOP Tube RoHS: Compliant Min Qty: 47 Package Multiple: 47 | Americas - 1269 |
|
$21.2704 | Buy Now |
|
DISTI #
81017625
|
Verical | 8-Channel Single ADC SAR 100ksps 14-bit Serial 28-Pin SSOP Tube RoHS: Compliant Min Qty: 47 Package Multiple: 47 Date Code: 2406 | Americas - 47 |
|
$20.2200 | Buy Now |
|
DISTI #
LTC1858CG#PBF
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 47 | 0 |
|
$21.8400 / $25.3700 | Buy Now |
Part Details for LTC1858CG#PBF
LTC1858CG#PBF CAD Models
LTC1858CG#PBF Part Data Attributes
|
|
LTC1858CG#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1858CG#PBF
Analog Devices Inc
8-Channel, 14-Bit, 100ksps SoftSpan A/D Converters with Shutdown
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 05-08-1640 (G28) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 10 V | |
| Analog Input Voltage-Min | -10 V | |
| Conversion Time-Max | 5 µs | |
| Converter Type | ADC, PROPRIETARY METHOD | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 10.2 mm | |
| Linearity Error-Max (EL) | 0.0092% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.1 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
Alternate Parts for LTC1858CG#PBF
This table gives cross-reference parts and alternative options found for LTC1858CG#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1858CG#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1858CG | Analog Devices Inc | Check for Price | ADC, Proprietary Method, 14-Bit, 1 Func, 8 Channel, Serial Access, PDSO28 | LTC1858CG#PBF vs LTC1858CG |
LTC1858CG#PBF Frequently Asked Questions (FAQ)
-
A good layout and routing for the LTC1858CG involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
-
To optimize the performance of the LTC1858CG in noisy environments, use a low-pass filter on the input signals, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
-
The maximum operating temperature range for the LTC1858CG is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance.
-
Yes, the LTC1858CG can be used with a single 5V power supply. However, the device's analog-to-digital converter (ADC) performance may be affected at lower supply voltages. It's recommended to use a 5V power supply with a low noise and low ripple to ensure optimal performance.
-
The LTC1858CG does not require calibration. It has an internal calibration circuit that calibrates the device during power-up. However, the device's performance may be affected by external factors such as temperature and power supply noise. It's recommended to use a precision voltage reference and a low-noise power supply to ensure optimal performance.
