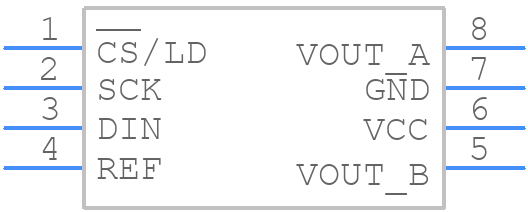

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1661CMS8#TRPBF by Analog Devices Inc
Results Overview of LTC1661CMS8#TRPBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC1661CMS8#TRPBF Information
LTC1661CMS8#TRPBF by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC1661CMS8#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4018022RL
|
Farnell | DAC, 10BIT, MSOP-8, 0 TO 70DEG C RoHS: Compliant Min Qty: 10 Lead time: 14 Weeks, 1 Days Container: Reel | 1788 |
|
$3.8056 / $4.9006 | Buy Now |
|
DISTI #
4018022
|
Farnell | DAC, 10BIT, MSOP-8, 0 TO 70DEG C RoHS: Compliant Min Qty: 1 Lead time: 14 Weeks, 1 Days Container: Cut Tape | 1788 |
|
$3.8056 / $6.3828 | Buy Now |
|
DISTI #
LTC1661CMS8#TRPBFCT-ND
|
DigiKey | IC DAC 10BIT V-OUT 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
15430 In Stock |
|
$3.0375 / $7.3800 | Buy Now |
|
DISTI #
584-LTC1661CMS8TRPBF
|
Mouser Electronics | Digital to Analog Converters - DAC uP 2x 10-B DAC in MS RoHS: Compliant | 2879 |
|
$3.2600 / $5.8300 | Buy Now |
|
DISTI #
V72:2272_06442068
|
Arrow Electronics | DAC 2-CH 10-bit 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2317 Container: Cut Strips | Americas - 1988 |
|
$3.1160 / $3.7850 | Buy Now |
|
|
Analog Devices Inc | uP 2x 10-B DAC in MS Min Qty: 1 Package Multiple: 2500 | 3086 |
|
$2.4300 / $7.3800 | Buy Now |
|
DISTI #
LTC1661CMS8TRPB
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 2500 | 0 |
|
$3.1400 / $3.2600 | Buy Now |
Part Details for LTC1661CMS8#TRPBF
LTC1661CMS8#TRPBF CAD Models
LTC1661CMS8#TRPBF Part Data Attributes
|
|
LTC1661CMS8#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1661CMS8#TRPBF
Analog Devices Inc
Micropower Dual 10-Bit DAC in MSOP
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1660 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Linearity Error-Max (EL) | 0.1953% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 10 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Settling Time-Nom (tstl) | 30 µs | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LTC1661CMS8#TRPBF
This table gives cross-reference parts and alternative options found for LTC1661CMS8#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1661CMS8#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1661IMS8#TRPBF | Analog Devices Inc | $3.7944 | Micropower Dual 10-Bit DAC in MSOP | LTC1661CMS8#TRPBF vs LTC1661IMS8#TRPBF |
| LTC1661IMS8#PBF | Analog Devices Inc | $4.3787 | Micropower Dual 10-Bit DAC in MSOP | LTC1661CMS8#TRPBF vs LTC1661IMS8#PBF |
| LTC1661CMS8 | Analog Devices Inc | Check for Price | D/A Converter, 1 Func, Serial Input Loading, 30us Settling Time, PDSO8 | LTC1661CMS8#TRPBF vs LTC1661CMS8 |
| LTC1661CMS8#TRPBF | Linear Technology | Check for Price | LTC1661 - Micropower Dual 10-Bit DAC in MSOP; Package: MSOP; Pins: 8; Temperature Range: 0°C to 70°C | LTC1661CMS8#TRPBF vs LTC1661CMS8#TRPBF |
| LTC1661IMS8#TR | Analog Devices Inc | Check for Price | D/A Converter, 1 Func, Serial Input Loading, 30us Settling Time, PDSO8 | LTC1661CMS8#TRPBF vs LTC1661IMS8#TR |
| LTC1661IMS8 | Linear Technology | Check for Price | LTC1661 - Micropower Dual 10-Bit DAC in MSOP; Package: MSOP; Pins: 8; Temperature Range: -40°C to 85°C | LTC1661CMS8#TRPBF vs LTC1661IMS8 |
| LTC1661CMS8#TR | Linear Technology | Check for Price | LTC1661 - Micropower Dual 10-Bit DAC in MSOP; Package: MSOP; Pins: 8; Temperature Range: 0°C to 70°C | LTC1661CMS8#TRPBF vs LTC1661CMS8#TR |
| LTC1661CMS8 | Linear Technology | Check for Price | LTC1661 - Micropower Dual 10-Bit DAC in MSOP; Package: MSOP; Pins: 8; Temperature Range: 0°C to 70°C | LTC1661CMS8#TRPBF vs LTC1661CMS8 |
| LTC1661IMS8#PBF | Linear Technology | Check for Price | LTC1661 - Micropower Dual 10-Bit DAC in MSOP; Package: MSOP; Pins: 8; Temperature Range: -40°C to 85°C | LTC1661CMS8#TRPBF vs LTC1661IMS8#PBF |
| LTC1661IMS8#TR | Linear Technology | Check for Price | LTC1661 - Micropower Dual 10-Bit DAC in MSOP; Package: MSOP; Pins: 8; Temperature Range: -40°C to 85°C | LTC1661CMS8#TRPBF vs LTC1661IMS8#TR |
