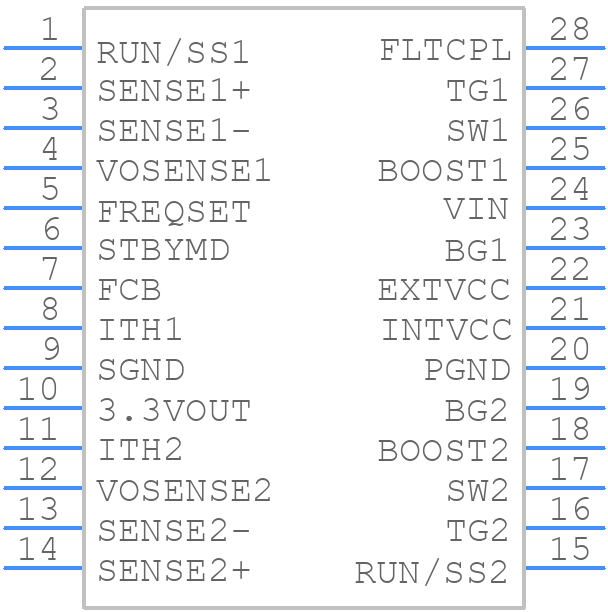

Part Symbol
-

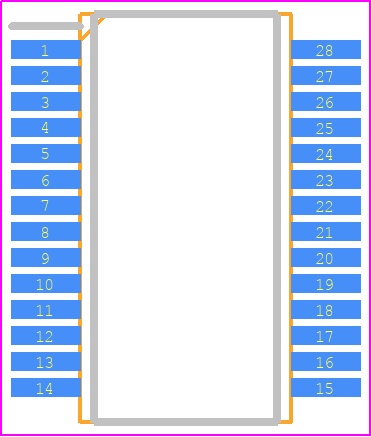

Footprint
-

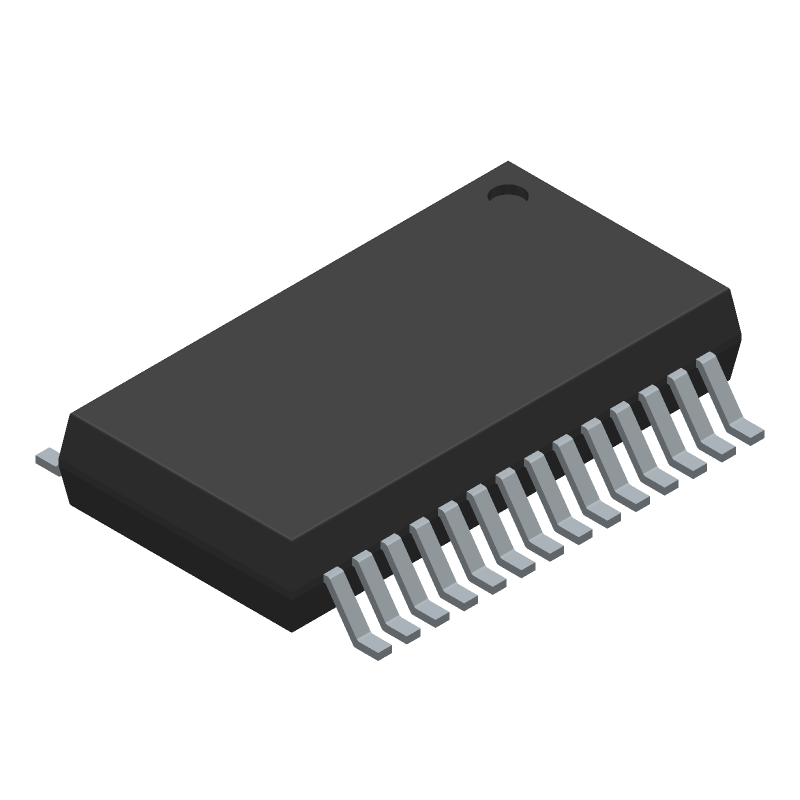

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1628CG#PBF by Analog Devices Inc
Results Overview of LTC1628CG#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTC1628CG#PBF Information
LTC1628CG#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC1628CG#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6221
|
Newark | Dc/Dc Ctrl, Sync Buck, 310Khz, 70Deg C, Control Mode:Current Mode Control, Supply Voltage Min:3.5V, Supply Voltage Max:36V, No. Of Outputs:2Outputs, Duty Cycle (%):99.4%, Ic Case/Package:Ssop, No. Of Pins:28Pins, Product Range:- Rohs Compliant: Yes |Analog Devices LTC1628CG#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 25 |
|
$7.3000 / $12.4200 | Buy Now |
|
DISTI #
LTC1628CG#PBF-ND
|
DigiKey | IC REG CTRLR BUCK 28SSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
113 In Stock |
|
$7.0000 / $13.7400 | Buy Now |
|
DISTI #
584-LTC1628CG#PBF
|
Mouser Electronics | Switching Voltage Regulators Hi Eff, 2-PhSync Buck Sw Reg RoHS: Compliant | 49 |
|
$7.1700 / $12.4200 | Buy Now |
|
DISTI #
V36:1790_06441925
|
Arrow Electronics | DC/DC Cntrlr Dual-OUT Step Down 3A/3A 360kHz 28-Pin SSOP Tube RoHS: Compliant Min Qty: 47 Package Multiple: 47 Lead time: 10 Weeks Date Code: 2129 | Americas - 16 |
|
$6.5380 | Buy Now |
|
|
Analog Devices Inc | Hi Eff, 2-PhSync Buck Sw Reg Package Multiple: 47 | 10598 |
|
$5.6000 / $13.7400 | Buy Now |
|
DISTI #
LTC1628CGPBF
|
TME | PMIC, DC/DC converter, Uin: 3.5÷30VDC, Uout: 36VDC, 3A, SSOP28, SMD Min Qty: 1 | 0 |
|
$8.5000 / $10.3000 | RFQ |
|
DISTI #
LTC1628CG#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 47 | 0 |
|
$7.2300 / $8.4000 | Buy Now |
Part Details for LTC1628CG#PBF
LTC1628CG#PBF CAD Models
LTC1628CG#PBF Part Data Attributes
|
|
LTC1628CG#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1628CG#PBF
Analog Devices Inc
High Efficiency, 2-Phase Synchronous Step-Down Switching Regulator
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.209 INCH, PLASTIC, SSOP-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 05-08-1640 (G28) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 3.5 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 10.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 mm | |
| Surface Mount | YES | |
| Switcher Configuration | PUSH-PULL | |
| Switching Frequency-Max | 310 kHz | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
Alternate Parts for LTC1628CG#PBF
This table gives cross-reference parts and alternative options found for LTC1628CG#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1628CG#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1628CG#TRPBF | Linear Technology | Check for Price | LTC1628 - High Efficiency, 2-Phase Synchronous Step-Down Switching Regulator; Package: SSOP; Pins: 28; Temperature Range: 0°C to 70°C | LTC1628CG#PBF vs LTC1628CG#TRPBF |
| LTC1628IG-SYNC#TRPBF | Analog Devices Inc | Check for Price | High Efficiency, 2-Phase Synchronous Step-Down Switching Regulator | LTC1628CG#PBF vs LTC1628IG-SYNC#TRPBF |
| LTC1628CG-SYNC#PBF | Linear Technology | Check for Price | LTC1628-SYNC - High Efficiency, 2-Phase Synchronous Step-Down Switching Regulator; Package: SSOP; Pins: 28; Temperature Range: 0°C to 70°C | LTC1628CG#PBF vs LTC1628CG-SYNC#PBF |
| LTC1628CG#TR | Analog Devices Inc | Check for Price | Switching Controller, Current-mode, 3A, 360kHz Switching Freq-Max, CMOS, PDSO28 | LTC1628CG#PBF vs LTC1628CG#TR |
| LTC1628CG-SYNC#TR | Linear Technology | Check for Price | LTC1628-SYNC - High Efficiency, 2-Phase Synchronous Step-Down Switching Regulator; Package: SSOP; Pins: 28; Temperature Range: 0°C to 70°C | LTC1628CG#PBF vs LTC1628CG-SYNC#TR |
LTC1628CG#PBF Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the LTC1628CG involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI.
-
To optimize the performance of the LTC1628CG in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the input lines, and use a shielded enclosure to reduce electromagnetic interference.
-
The maximum allowed voltage on the input pins of the LTC1628CG is 7V, exceeding which may cause damage to the IC.
-
Yes, the LTC1628CG can be used with a different voltage regulator or LDO, but ensure that the output voltage and current rating of the regulator/LDO are compatible with the LTC1628CG's requirements.
-
To troubleshoot issues with the LTC1628CG, check the input and output voltage levels, ensure proper decoupling and bypassing, and verify that the layout and component selection meet the recommended guidelines.
