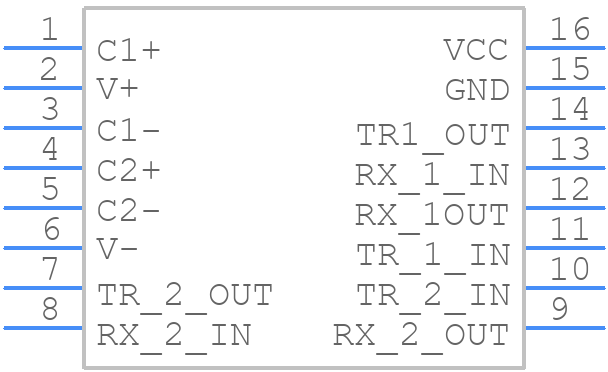

Part Symbol
-

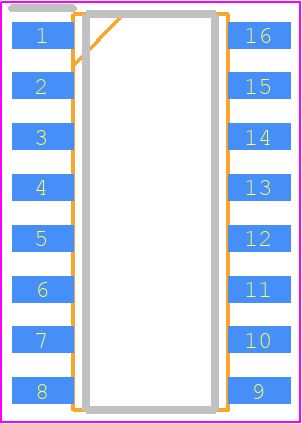

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1386IS#PBF by Analog Devices Inc
Results Overview of LTC1386IS#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Telecommunications
Automotive
LTC1386IS#PBF Information
LTC1386IS#PBF by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LTC1386IS#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2022
|
Newark | Eia/Tia 562 Transceiver, -40 To 85Deg C, Ic Type:Rs562 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:-, Data Rate Max:120Kbps, Supply Voltage Min:3.3V, Supply Voltage Max:5V, No. Of Pins:16Pins Rohs Compliant: Yes |Analog Devices LTC1386IS#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 68 |
|
$6.3900 / $12.8200 | Buy Now |
|
DISTI #
LTC1386IS#PBF-ND
|
DigiKey | IC TRANSCEIVER FULL 2/2 16SO Min Qty: 1 Lead time: 10 Weeks Container: Tube |
122 In Stock |
|
$6.3875 / $12.8200 | Buy Now |
|
DISTI #
584-LTC1386IS#PBF
|
Mouser Electronics | RS-232 Interface IC 3.3V L Pwr EIA/TIA562 Tran RoHS: Compliant | 150 |
|
$6.5700 / $11.4300 | Buy Now |
|
DISTI #
V36:1790_06436489
|
Arrow Electronics | Dual Transmitter/Receiver RS-562 16-Pin SOIC N Tube RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2245 | Americas - 600 |
|
$12.0170 / $12.6340 | Buy Now |
|
|
Analog Devices Inc | 3.3V L Pwr EIA/TIA562 Tran Package Multiple: 50 | 4525 |
|
$5.1100 / $12.8200 | Buy Now |
|
DISTI #
LTC1386IS#PBF
|
Richardson RFPD | INTERFACE - TRANSCEIVER RoHS: Compliant Min Qty: 50 | 0 |
|
$6.6000 / $7.6600 | Buy Now |
Part Details for LTC1386IS#PBF
LTC1386IS#PBF CAD Models
LTC1386IS#PBF Part Data Attributes
|
|
LTC1386IS#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1386IS#PBF
Analog Devices Inc
3.3V Low Power EIA/TIA562 Transceiver
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.150 INCH, PLASTIC, SO-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1610 (S16) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | EXTERNAL CHARGE PUMP | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-562; TIA-562 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 9.906 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 800 ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.752 mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 3500 ns | |
| Width | 3.899 mm |
Alternate Parts for LTC1386IS#PBF
This table gives cross-reference parts and alternative options found for LTC1386IS#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1386IS#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1386IS | Linear Technology | $1.3328 | LTC1386 - 3.3V Low Power EIA/TIA562 Transceiver; Package: SO; Pins: 16; Temperature Range: -40°C to 85°C | LTC1386IS#PBF vs LTC1386IS |
| LTC1386CS#TRPBF | Analog Devices Inc | $6.5491 | 3.3V Low Power EIA/TIA562 Transceiver | LTC1386IS#PBF vs LTC1386CS#TRPBF |
| LTC1386IS#TR | Analog Devices Inc | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16 | LTC1386IS#PBF vs LTC1386IS#TR |
| LTC1386CS | Analog Devices Inc | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16 | LTC1386IS#PBF vs LTC1386CS |
| LTC1386IS#TR | Linear Technology | Check for Price | LTC1386 - 3.3V Low Power EIA/TIA562 Transceiver; Package: SO; Pins: 16; Temperature Range: -40°C to 85°C | LTC1386IS#PBF vs LTC1386IS#TR |
LTC1386IS#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC1386IS#PBF involves separating the analog and digital grounds, using a solid ground plane, and keeping the input and output traces short and away from each other. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to place the capacitor close to the VCC pin.
-
To ensure the LTC1386IS#PBF operates within its recommended operating conditions, verify that the input voltage is within the specified range (4.5V to 18V), the output current is within the specified range (up to 100mA), and the operating temperature is within the specified range (-40°C to 85°C).
-
The recommended input capacitor value for the LTC1386IS#PBF is 1uF to 10uF, with a low-ESR ceramic or film capacitor being a good choice. The capacitor should be placed close to the VIN pin to minimize noise and ensure stable operation.
-
To troubleshoot issues with the LTC1386IS#PBF, start by verifying the input voltage and output current are within the specified ranges. Check the PCB layout for noise and oscillation issues, and ensure the input and output capacitors are properly sized and placed. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance.
-
The LTC1386IS#PBF is a commercial-grade part, but it can be used in high-reliability or high-temperature applications with proper derating and design considerations. Consult the datasheet and application notes for guidance on operating the part at high temperatures or in high-reliability applications.
