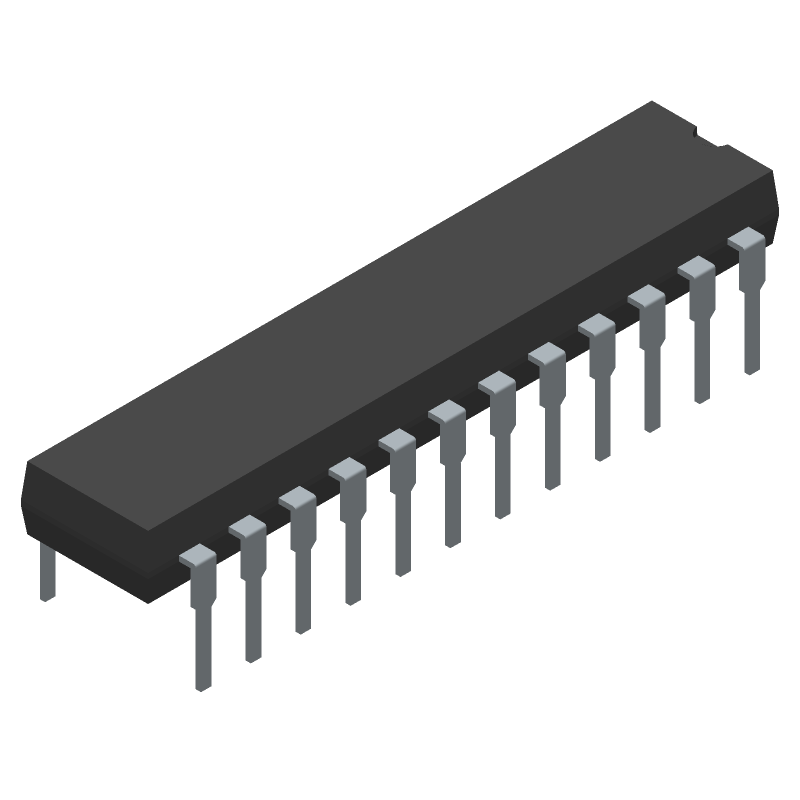

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1321CN#PBF by Analog Devices Inc
Results Overview of LTC1321CN#PBF by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LTC1321CN#PBF Information
LTC1321CN#PBF by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LTC1321CN#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTC1321CN#PBF-ND
|
DigiKey | IC TRANSCEIVER FULL 4/4 24PDIP Min Qty: 60 Lead time: 10 Weeks Container: Tube | Temporarily Out of Stock |
|
$8.9268 | Buy Now |
|
DISTI #
584-LTC1321CN#PBF
|
Mouser Electronics | RS-422/RS-485 Interface IC RS232/EIA562/RS485 Trans RoHS: Compliant | 108 |
|
$9.1000 / $16.8700 | Buy Now |
|
|
Analog Devices Inc | RS232/EIA562/RS485 Trans Package Multiple: 15 | 0 |
|
$6.7900 / $8.6400 | Buy Now |
|
DISTI #
LTC1321CN#PBF
|
Richardson RFPD | INTERFACE - TRANSCEIVER RoHS: Compliant Min Qty: 60 | 0 |
|
$8.7600 / $10.1900 | Buy Now |
Part Details for LTC1321CN#PBF
LTC1321CN#PBF CAD Models
LTC1321CN#PBF Part Data Attributes
|
|
LTC1321CN#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1321CN#PBF
Analog Devices Inc
RS232/EIA562/RS485 Transceivers
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | PLASTIC, DIP-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | 05-08-1510 (N24) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | CONFIGURABLE INTERFACE STANDARDS; LOOP BACK; INDIVIDUAL DRIVER ENABLES | |
| Differential Output | YES | |
| Driver Number of Bits | 2 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232; EIA-485; EIA-562 | |
| JESD-30 Code | R-PDIP-T24 | |
| JESD-609 Code | e3 | |
| Length | 32.131 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Characteristics | 3-STATE | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP24,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 140 ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 3.81 mm | |
| Supply Current-Max | 2 mA | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 10 V | |
| Supply Voltage1-Min | 6.5 V | |
| Supply Voltage1-Nom | 9 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 70 ns | |
| Width | 7.62 mm |
Alternate Parts for LTC1321CN#PBF
This table gives cross-reference parts and alternative options found for LTC1321CN#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1321CN#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1322CN | Analog Devices Inc | Check for Price | Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDIP24 | LTC1321CN#PBF vs LTC1322CN |
| LTC1321IS | Linear Technology | Check for Price | IC LINE TRANSCEIVER, PDSO24, PLASTIC, SOL-24, Line Driver or Receiver | LTC1321CN#PBF vs LTC1321IS |
| LTC1322IS | Linear Technology | Check for Price | IC LINE TRANSCEIVER, PDSO24, PLASTIC, SOL-24, Line Driver or Receiver | LTC1321CN#PBF vs LTC1322IS |
| LTC1321CN | Analog Devices Inc | Check for Price | Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDIP24 | LTC1321CN#PBF vs LTC1321CN |
