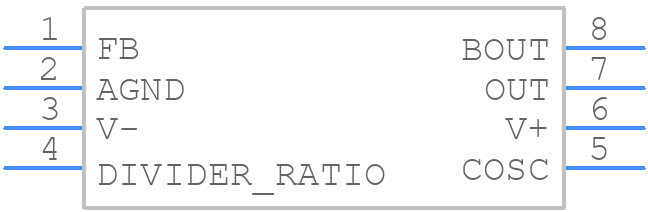

Part Symbol
-

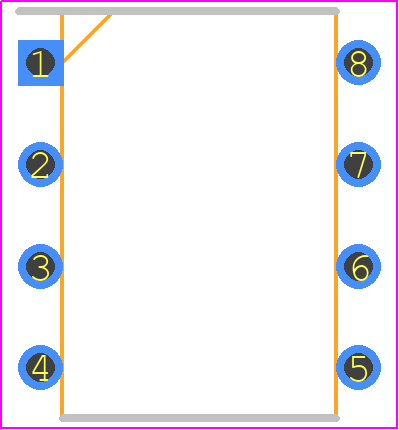

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1062CN8#PBF by Analog Devices Inc
Results Overview of LTC1062CN8#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC1062CN8#PBF Information
LTC1062CN8#PBF by Analog Devices Inc is an Active Filter.
Active Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for LTC1062CN8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6026
|
Newark | Filter, Lowpass, 20Khz, Ndip, Ic Filter Type:Lowpass, Filter Order:5Th, No. Of Filters:1, Supply Voltage Min:-, Supply Voltage Max:16V, Filter Ic Case Style:Ndip, No. Of Pins:8Pins, Cutoff Frequency:20Khz, Product Range:- Rohs Compliant: Yes |Analog Devices LTC1062CN8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 150 |
|
$6.1200 / $9.7300 | Buy Now |
|
DISTI #
584-LTC1062CN8#PBF
|
Mouser Electronics | Active Filters 5th Order Lpass Filt RoHS: Compliant | 0 |
|
$5.3500 / $10.4300 | Order Now |
|
DISTI #
V99:2348_06436103
|
Arrow Electronics | Active Filter Single SW-CAP Low Pass 5th Order 20kHz 8-Pin PDIP N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2142 | Americas - 15 |
|
$5.4320 / $9.6340 | Buy Now |
|
|
Analog Devices Inc | 5th Order Lpass Filt Package Multiple: 50 | 68 |
|
$4.2800 / $11.2300 | Buy Now |
|
DISTI #
LTC1062CN8PBF
|
TME | Filter: digital, lowpass, DIP8, 4MHz Min Qty: 1 | 0 |
|
$4.5200 / $6.3000 | RFQ |
Part Details for LTC1062CN8#PBF
LTC1062CN8#PBF CAD Models
LTC1062CN8#PBF Part Data Attributes
|
|
LTC1062CN8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1062CN8#PBF
Analog Devices Inc
5th Order Lowpass Filter
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1510 (N8) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Active Filter Type | SWITCHED CAPACITOR FILTER | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -9 V | |
| Neg Supply Voltage-Min (Vsup) | -2.5 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Poles and Zeros | 5 AND 0 | |
| Qualification Status | Not Qualified | |
| Response | LOWPASS | |
| Seated Height-Max | 3.937 mm | |
| Supply Voltage-Max (Vsup) | 9 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transfer Characteristics | BUTTERWORTH | |
| Width | 7.62 mm |
Alternate Parts for LTC1062CN8#PBF
This table gives cross-reference parts and alternative options found for LTC1062CN8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1062CN8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MXL1062CN8+ | Maxim Integrated Products | Check for Price | Switched Capacitor Filter, 1 Func, Butterworth/bessel, Lowpass, CMOS, PDIP8, PLASTIC, DIP-8 | LTC1062CN8#PBF vs MXL1062CN8+ |
| 5962-9159501MPA | Linear Technology | Check for Price | IC SWITCHED CAPACITOR FILTER, BUTTERWORTH, LOWPASS, CDIP8, CERAMIC, DIP-8, Active Filter | LTC1062CN8#PBF vs 5962-9159501MPA |
| LTC1062CN8#PBF | Linear Technology | Check for Price | LTC1062 - 5th Order Lowpass Filter; Package: PDIP; Pins: 8; Temperature Range: 0°C to 70°C | LTC1062CN8#PBF vs LTC1062CN8#PBF |
| LTC1062MJ8/883 | Linear Technology | Check for Price | IC SWITCHED CAPACITOR FILTER, BUTTERWORTH, LOWPASS, CDIP8, HERMETIC SEALED, CERDIP-8, Active Filter | LTC1062CN8#PBF vs LTC1062MJ8/883 |
| 5962-9159501MPX | Linear Technology | Check for Price | IC SWITCHED CAPACITOR FILTER, BUTTERWORTH, LOWPASS, CDIP8, CERAMIC, DIP-8, Active Filter | LTC1062CN8#PBF vs 5962-9159501MPX |
| MXL1062CN8 | Maxim Integrated Products | Check for Price | Switched Capacitor Filter, 1 Func, Butterworth/bessel, Lowpass, CMOS, PDIP8, PLASTIC, DIP-8 | LTC1062CN8#PBF vs MXL1062CN8 |
| LTC1062CN8 | Analog Devices Inc | Check for Price | Switched Capacitor Filter, 1 Func, Butterworth, Lowpass, CMOS, PDIP8 | LTC1062CN8#PBF vs LTC1062CN8 |
| MXL1062CJ8 | Maxim Integrated Products | Check for Price | Switched Capacitor Filter, 1 Func, Butterworth/bessel, Lowpass, CMOS, CDIP8, CERDIP-8 | LTC1062CN8#PBF vs MXL1062CJ8 |
| MXL1062MJ8 | Maxim Integrated Products | Check for Price | Switched Capacitor Filter, 1 Func, Butterworth/bessel, Lowpass, CMOS, CDIP8, CERDIP-8 | LTC1062CN8#PBF vs MXL1062MJ8 |
| LTC1062MJ8 | Maxim Integrated Products | Check for Price | Switched Capacitor Filter, 1 Func, Butterworth, Lowpass, CMOS, CDIP8, CERDIP-8 | LTC1062CN8#PBF vs LTC1062MJ8 |
LTC1062CN8#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC1062CN8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
The choice of external components such as resistors, capacitors, and inductors depends on the specific application and desired performance. Refer to the datasheet and application notes for guidance on selecting the right components for your design.
-
The maximum power dissipation of the LTC1062CN8 is dependent on the operating conditions and package type. For the CN8 package, the maximum power dissipation is approximately 1.4W. However, this value can be derated based on the ambient temperature and other factors.
-
Yes, the LTC1062CN8 can be used in switching regulator applications. However, it is essential to ensure that the device is properly bypassed and that the input and output capacitors are selected to handle the high-frequency switching currents.
-
Common issues with the LTC1062CN8 include oscillation, instability, and overheating. To troubleshoot these issues, check the PCB layout, ensure proper bypassing, and verify that the external components are correctly selected and installed.
