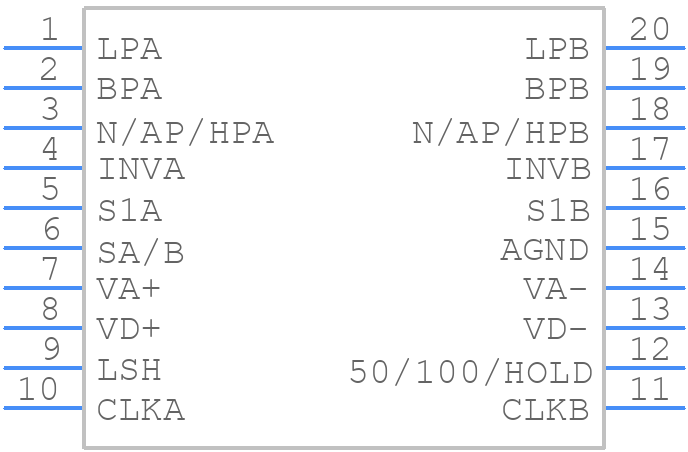

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC1060CSW#PBF by Analog Devices Inc
Results Overview of LTC1060CSW#PBF by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC1060CSW#PBF Information
LTC1060CSW#PBF by Analog Devices Inc is an Active Filter.
Active Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for LTC1060CSW#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6025
|
Newark | Dual Filter, Universal, 20Khz, Wsoic, Ic Filter Type:Universal, Filter Order:4Th, No. Of Filters:2, Supply Voltage Min:-2.37V, Supply Voltage Max:8V, Filter Ic Case Style:Wsoic, No. Of Pins:20Pins, Cutoff Frequency:20Khz Rohs Compliant: Yes |Analog Devices LTC1060CSW#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 16 |
|
$6.9400 / $13.6500 | Buy Now |
|
DISTI #
LTC1060CSW#PBF-ND
|
DigiKey | IC FILTER 30KHZ SWITCHED 20SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
595 In Stock |
|
$6.9375 / $13.6500 | Buy Now |
|
DISTI #
584-LTC1060CSW#PBF
|
Mouser Electronics | Active Filters Universal 2x Filt Building Block RoHS: Compliant | 2172 |
|
$7.7200 / $12.3200 | Buy Now |
|
DISTI #
V36:1790_06436097
|
Arrow Electronics | Active Filter Dual SW-CAP UNIV 4th Order 20kHz 20-Pin SOIC W Tube RoHS: Compliant Min Qty: 76 Package Multiple: 38 Lead time: 10 Weeks Date Code: 2341 | Americas - 45 |
|
$6.6360 / $7.4790 | Buy Now |
|
|
Analog Devices Inc | Universal 2x Filt Building Blo Package Multiple: 38 | 97 |
|
$5.5500 / $13.6500 | Buy Now |
|
DISTI #
LTC1060CSWPBF
|
TME | Filter: digital, switched capacitor, universal, SO20, 0.03MHz Min Qty: 1 | 0 |
|
$18.2000 / $24.6000 | RFQ |
|
DISTI #
LTC1060CSWPBFSD
|
Richardson RFPD | CUSTOM FILTER RoHS: Compliant Min Qty: 1 | 0 |
|
RFQ | |
|
DISTI #
LTC1060CSW#PBF
|
Richardson RFPD | CUSTOM FILTER RoHS: Compliant Min Qty: 76 | 0 |
|
$7.2600 / $7.7500 | Buy Now |
Part Details for LTC1060CSW#PBF
LTC1060CSW#PBF CAD Models
LTC1060CSW#PBF Part Data Attributes
|
|
LTC1060CSW#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1060CSW#PBF
Analog Devices Inc
Universal Dual Filter Building Block
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.300 INCH, PLASTIC, SO-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 05-08-1620 (SW20) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Active Filter Type | SWITCHED CAPACITOR FILTER | |
| Center or Cutoff Freq Rng-Max | 20 kHz | |
| Center or Cutoff Freq Rng-Min | 0.1 kHz | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 12.8015 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -8 V | |
| Neg Supply Voltage-Min (Vsup) | -2.37 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Poles and Zeros | 2 AND 0 | |
| Qualification Status | Not Qualified | |
| Response | UNIVERSAL | |
| Seated Height-Max | 2.642 mm | |
| Supply Voltage-Max (Vsup) | 8 V | |
| Supply Voltage-Min (Vsup) | 2.37 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transfer Characteristics | BUTTERWORTH/BESSEL/CHEBYSHEV | |
| Width | 7.5 mm |
Alternate Parts for LTC1060CSW#PBF
This table gives cross-reference parts and alternative options found for LTC1060CSW#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1060CSW#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MF10CCWM/NOPB | Texas Instruments | $2.4101 | Universal Monolithic Dual Switched Capacitor Filter 20-SOIC 0 to 70 | LTC1060CSW#PBF vs MF10CCWM/NOPB |
| LTC1060CS | Linear Technology | Check for Price | IC DUAL SWITCHED CAPACITOR FILTER, RESISTOR PROGRAMMABLE, UNIVERSAL, PDSO20, PLASTIC, SOL-20, Active Filter | LTC1060CSW#PBF vs LTC1060CS |
| MF10CCWMX | Texas Instruments | Check for Price | Universal Monolithic Dual Switched Capacitor Filter 20-SOIC 0 to 70 | LTC1060CSW#PBF vs MF10CCWMX |
| MF10CWP | Maxim Integrated Products | Check for Price | Switched Capacitor Filter, 2 Func, Butterworth/bessel/elliptic, Universal, CMOS, PDSO20, SO-20 | LTC1060CSW#PBF vs MF10CWP |
LTC1060CSW#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC1060CSW involves keeping the input and output traces short and symmetrical, and using a solid ground plane to reduce noise and radiation. It's also recommended to use a low-ESR capacitor for the output filter.
-
The output filter components (Rout, Cout, and Lout) should be chosen based on the desired cutoff frequency, output impedance, and noise requirements. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements.
-
The maximum power dissipation of the LTC1060CSW is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature, but this can be derated at higher temperatures.
-
Yes, the LTC1060CSW can be used in a switching power supply application, but it's essential to ensure that the device is properly bypassed and decoupled to prevent noise and oscillations. Additionally, the output filter components should be chosen to minimize ringing and ensure stability.
-
To troubleshoot oscillations or instability issues with the LTC1060CSW, check the PCB layout, output filter components, and power supply decoupling. Ensure that the input and output traces are short and symmetrical, and that the output filter components are properly chosen. Also, check for any noise or interference from other components or systems.
