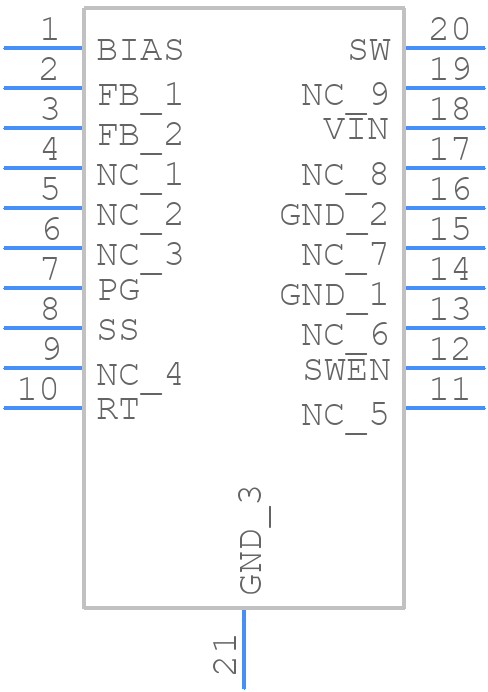

Part Symbol
-

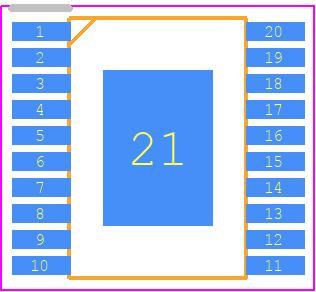

Footprint
-

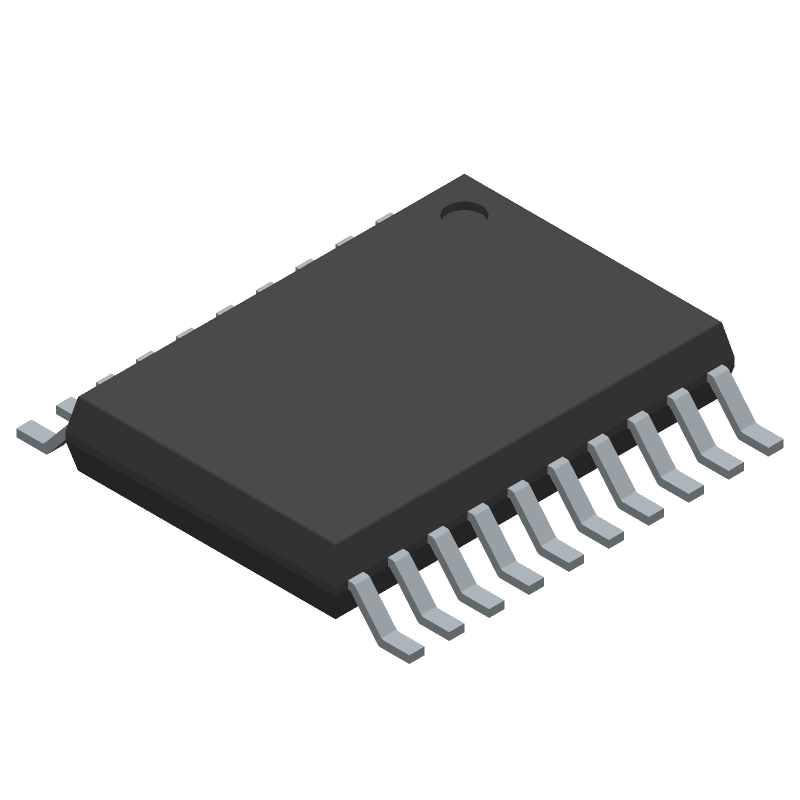

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT8494IFE#PBF by Analog Devices Inc
Results Overview of LT8494IFE#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT8494IFE#PBF Information
LT8494IFE#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT8494IFE#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK9069
|
Newark | Dc/Dc Conv, Boost, 1.5Mhz, 125Deg C, No. Of Outputs:1Outputs, Topology:Boost, Sepic, Input Voltage Min:1V, Input Voltage Max:60V, Max Output Current:2A, Ic Case/Package:Tssop-Ep, No. Of Pins:20Pins, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices LT8494IFE#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 12 |
|
$4.7100 / $10.2100 | Buy Now |
|
DISTI #
LT8494IFE#PBF-ND
|
DigiKey | IC REG BST CHRG PUMP ADJ 20TSSOP Min Qty: 1 Lead time: 20 Weeks Container: Tube |
87 In Stock |
|
$4.7125 / $10.2100 | Buy Now |
|
DISTI #
584-LT8494IFE#PBF
|
Mouser Electronics | Switching Voltage Regulators SEPIC/Boost DC/DC Conv w/ 2A, 70V Switch RoHS: Compliant | 117 |
|
$4.9100 / $8.6700 | Buy Now |
|
|
Analog Devices Inc | SEPIC/Boost DC/DC Conv w/ 2A, Package Multiple: 74 | 166 |
|
$3.7700 / $10.2100 | Buy Now |
|
DISTI #
35243001
|
Verical | Conv DC-DC 1V to 32V Step Up Single-Out 1.202V to 70V 20-Pin TSSOP EP Tube RoHS: Compliant Min Qty: 74 Package Multiple: 74 | Americas - 148 |
|
$4.7421 | Buy Now |
|
DISTI #
LT8494IFE#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 74 | 0 |
|
$4.8700 / $5.6500 | Buy Now |
Part Details for LT8494IFE#PBF
LT8494IFE#PBF CAD Models
LT8494IFE#PBF Part Data Attributes
|
|
LT8494IFE#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT8494IFE#PBF
Analog Devices Inc
SEPIC/Boost DC/DC Converter with 2A, 70V Switch, and 7µA Quiescent Current
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 4.4 MM, LEAD FREE, PLASTIC, TSSOP-21/20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 05-08-1663 (CB) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 32 V | |
| Input Voltage-Min | 2.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2.95 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Seated Height-Max | 1.2 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 1060 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm |
