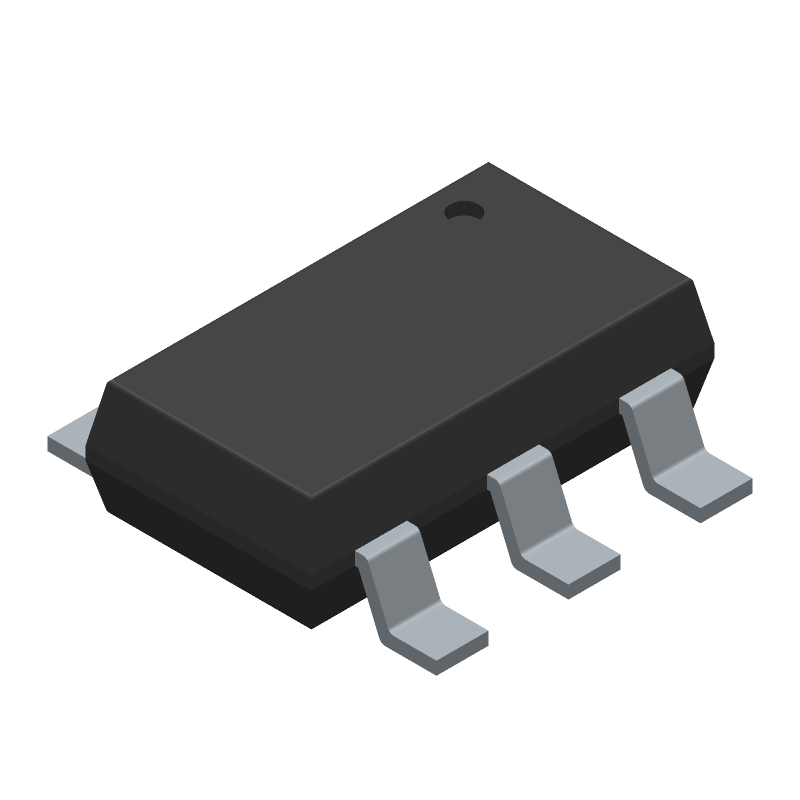

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT6700MPS6-1#TRMPBF by Analog Devices Inc
Results Overview of LT6700MPS6-1#TRMPBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
LT6700MPS6-1#TRMPBF Information
LT6700MPS6-1#TRMPBF by Analog Devices Inc is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT6700MPS6-1#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK6053
|
Newark | Comparator, Tsot-23-6, -55 To 125Deg C, Comparator Type:Micropower, Low Voltage, No. Of Channels:2Channels, Response Time/Propogation Delay:18Μs, Supply Voltage Range:1.4V To 18V, Ic Case/Package:Tsot-23, No. Of Pins:6Pins Rohs Compliant: Yes |Analog Devices LT6700MPS6-1#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 235 |
|
$6.8100 / $13.3700 | Buy Now |
|
DISTI #
LT6700MPS6-1#TRMPBFCT-ND
|
DigiKey | IC COMPARATR 2 W/VOLT REF TSOT23 Min Qty: 1 Lead time: 26 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4264 In Stock |
|
$6.7500 / $13.3700 | Buy Now |
|
DISTI #
584-6700MPS6-1TRMPBF
|
Mouser Electronics | Analog Comparators uP, L V, 2x Comp w/ 400mV Ref RoHS: Compliant | 1967 |
|
$7.0200 / $12.0200 | Buy Now |
|
|
Analog Devices Inc | uP, L V, 2x Comp w/ 400mV Ref Package Multiple: 500 | 853 |
|
$5.4000 / $13.3700 | Buy Now |
|
DISTI #
LT6700MPS6-1TRMPBF
|
TME | IC: comparator, low-power, Cmp: 2, 29us, 1.4÷18V, TSOT23-6 Min Qty: 1 | 0 |
|
$7.6700 / $10.7000 | RFQ |
|
DISTI #
LT6700MPS61TRMP
|
Richardson RFPD | COMPARATOR RoHS: Compliant Min Qty: 500 | 0 |
|
$6.9800 / $7.4500 | Buy Now |
Part Details for LT6700MPS6-1#TRMPBF
LT6700MPS6-1#TRMPBF CAD Models
LT6700MPS6-1#TRMPBF Part Data Attributes
|
|
LT6700MPS6-1#TRMPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT6700MPS6-1#TRMPBF
Analog Devices Inc
Micropower, Low Voltage, Dual Comparator with 400mV Reference
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 6 | |
| Manufacturer Package Code | 05-08-1636 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | COMPARATOR | |
| Average Bias Current-Max (IIB) | 0.05 µA | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Type | OPEN-COLLECTOR | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Response Time-Nom | 29000 ns | |
| Seated Height-Max | 1 mm | |
| Supply Voltage Limit-Max | 18.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.625 mm |
Alternate Parts for LT6700MPS6-1#TRMPBF
This table gives cross-reference parts and alternative options found for LT6700MPS6-1#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT6700MPS6-1#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT6700IS6-1#TRM | Analog Devices Inc | Check for Price | Comparator, 2 Func, 29000ns Response Time, PDSO6 | LT6700MPS6-1#TRMPBF vs LT6700IS6-1#TRM |
| LT6700IS6-1 | Linear Technology | Check for Price | LT6700 - Micropower, Low Voltage, Dual Comparator with 400mV Reference; Package: SOT; Pins: 6; Temperature Range: -40°C to 85°C | LT6700MPS6-1#TRMPBF vs LT6700IS6-1 |
| LT6700IS6-1#PBF | Analog Devices Inc | Check for Price | Micropower, Low Voltage, Dual Comparator with 400mV Reference | LT6700MPS6-1#TRMPBF vs LT6700IS6-1#PBF |
| LT6700MPS6-1#TRPBF | Analog Devices Inc | Check for Price | Micropower, Low Voltage, Dual Comparator with 400mV Reference | LT6700MPS6-1#TRMPBF vs LT6700MPS6-1#TRPBF |
| LT6700HS6-1#TRM | Linear Technology | Check for Price | LT6700 - Micropower, Low Voltage, Dual Comparator with 400mV Reference; Package: SOT; Pins: 6; Temperature Range: -40°C to 125°C | LT6700MPS6-1#TRMPBF vs LT6700HS6-1#TRM |
| LT6700CS6-1 | Linear Technology | Check for Price | LT6700 - Micropower, Low Voltage, Dual Comparator with 400mV Reference; Package: SOT; Pins: 6; Temperature Range: 0°C to 70°C | LT6700MPS6-1#TRMPBF vs LT6700CS6-1 |
| LT6700CS6-1#TR | Analog Devices Inc | Check for Price | Comparator, 2 Func, 29000ns Response Time, PDSO6 | LT6700MPS6-1#TRMPBF vs LT6700CS6-1#TR |
| LT6700HS6-1#TRPBF | Analog Devices Inc | Check for Price | Micropower, Low Voltage, Dual Comparator with 400mV Reference | LT6700MPS6-1#TRMPBF vs LT6700HS6-1#TRPBF |
LT6700MPS6-1#TRMPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT6700MPS6-1 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure stability, it's essential to follow the recommended compensation network and component values, and to ensure that the output capacitor is of high quality and has a low equivalent series resistance (ESR). Additionally, the input and output voltage rails should be well-regulated and decoupled.
-
The maximum ambient temperature range for the LT6700MPS6-1 is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
-
Yes, the LT6700MPS6-1 is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process and is screened to ensure high performance and reliability. However, it's recommended to consult with Analog Devices Inc. for specific requirements and testing protocols.
-
To troubleshoot issues with the LT6700MPS6-1, start by verifying the input and output voltage rails, and checking for any signs of overheating or physical damage. Use an oscilloscope to check the output waveform and ensure it's within the specified range. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. for technical support.
