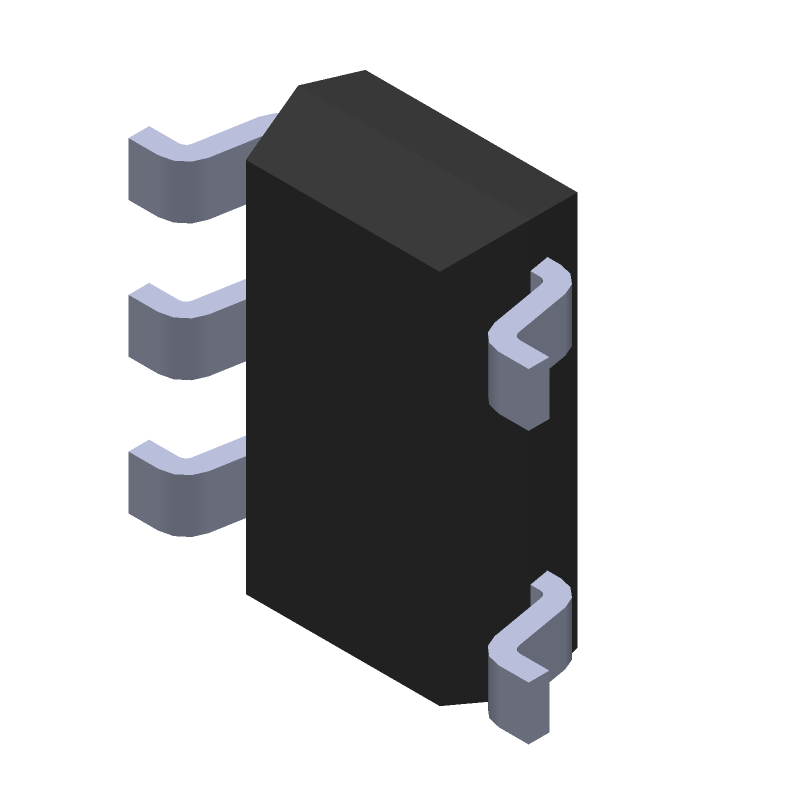

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT6106HS5#WTRPBF by Analog Devices Inc
Results Overview of LT6106HS5#WTRPBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
LT6106HS5#WTRPBF Information
LT6106HS5#WTRPBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT6106HS5#WTRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
161-LT6106HS5#WTRPBFTR-ND
|
DigiKey | IC CURR SENSE 1 CIRCUIT TSOT23-5 Min Qty: 2500 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.7375 | Buy Now |
|
DISTI #
584-LT6106HS5#WTRPBF
|
Mouser Electronics | Current Sense Amplifiers L Cost, 36V Hi Side C Sense Amp RoHS: Compliant | 2500 |
|
$1.8600 / $5.0300 | Buy Now |
|
|
Analog Devices Inc | L Cost, 36V Hi Side C Sense Am Min Qty: 2500 Package Multiple: 2500 | 12500 |
|
$1.3900 / $1.9000 | Buy Now |
|
DISTI #
42664957
|
Verical | SP Amp Current Sense Amp Single 36V Automotive AEC-Q100 5-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 12500 |
|
$1.7192 | Buy Now |
|
DISTI #
LT6106HS5WTRPBF
|
Richardson RFPD | AMPLIFIER - SPECIAL PURPOSE RoHS: Compliant Min Qty: 2500 | 0 |
|
$1.8000 / $1.8700 | Buy Now |
|
|
Vyrian | Amplifiers | 8963 |
|
RFQ | |
|
|
Win Source Electronics | IC CURR SENSE 1 CIRCUIT TSOT23-5 / Current Sense Amplifier 1 Circuit TSOT-23-5 | 20070 |
|
$2.5026 / $3.7539 | Buy Now |
Part Details for LT6106HS5#WTRPBF
LT6106HS5#WTRPBF CAD Models
LT6106HS5#WTRPBF Part Data Attributes
|
|
LT6106HS5#WTRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT6106HS5#WTRPBF
Analog Devices Inc
36V Low Cost High Side Current Sense in a SOT-23
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | TSOT-23, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | 05-08-1635 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.065 µA | |
| Bandwidth (3dB)-Nom | 0.2 MHz | |
| Bias Current-Max (IIB) @25C | 0.04 µA | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 350 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max | 0.13 mA | |
| Supply Voltage Limit-Max | 44 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Wideband | YES | |
| Width | 1.625 mm |
Alternate Parts for LT6106HS5#WTRPBF
This table gives cross-reference parts and alternative options found for LT6106HS5#WTRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT6106HS5#WTRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT6106CS5#TRPBF | Analog Devices Inc | $1.7757 | 36V Low Cost High Side Current Sense in a SOT-23 | LT6106HS5#WTRPBF vs LT6106CS5#TRPBF |
| LT6105IMS8#PBF | Analog Devices Inc | $2.2086 | Precision, Rail-to-Rail Input Current Sense Amplifier | LT6106HS5#WTRPBF vs LT6105IMS8#PBF |
| LT6105IDCB#TRMPBF | Analog Devices Inc | $2.2834 | Precision, Rail-to-Rail Input Current Sense Amplifier | LT6106HS5#WTRPBF vs LT6105IDCB#TRMPBF |
| LT6106CS5#PBF | Analog Devices Inc | Check for Price | Low Cost 36V High Side Current Sense Amplifier | LT6106HS5#WTRPBF vs LT6106CS5#PBF |
| LT6106HS5#PBF | Analog Devices Inc | Check for Price | Low Cost 36V High Side Current Sense Amplifier | LT6106HS5#WTRPBF vs LT6106HS5#PBF |
| LT6107MPS5#TRM | Analog Devices Inc | Check for Price | Analog Circuit, 1 Func, PDSO5 | LT6106HS5#WTRPBF vs LT6107MPS5#TRM |
LT6106HS5#WTRPBF Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the LT6106HS5#WTRPBF is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.
-
To minimize noise and ensure optimal performance, it is recommended to follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, it is recommended to place the LT6106HS5#WTRPBF close to the power supply and use short, direct traces to minimize inductance and resistance.
-
The recommended input capacitance for the LT6106HS5#WTRPBF is 1uF to 10uF, and the recommended output capacitance is 10uF to 100uF. However, the optimal capacitance values may vary depending on the specific application and operating conditions.
-
To ensure stability and prevent oscillation, it is recommended to follow the stability analysis guidelines outlined in the datasheet and application notes. This includes selecting the correct output capacitance, ensuring the output voltage is within the recommended range, and using a stable input voltage source.
-
The maximum input voltage that the LT6106HS5#WTRPBF can handle is 36V. Exceeding this voltage may cause damage to the device.
