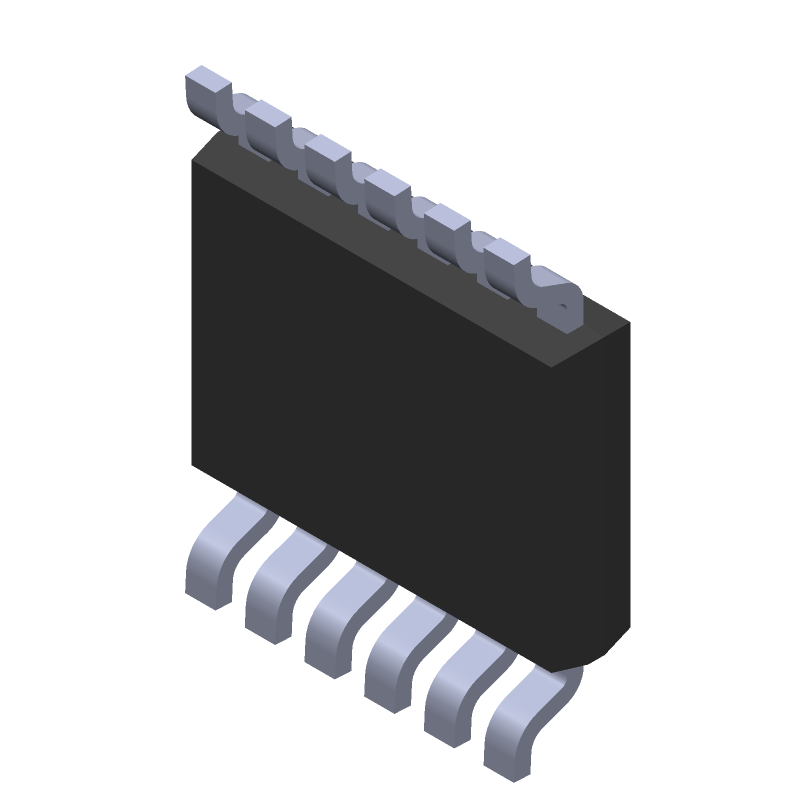

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT4363HMS-2#TRPBF by Analog Devices Inc
Results Overview of LT4363HMS-2#TRPBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT4363HMS-2#TRPBF Information
LT4363HMS-2#TRPBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT4363HMS-2#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK5811
|
Newark | Hot-Swap Ctrl, -40 To 125Deg C, Msop-12, No. Of Channels:-, Supply Voltage Min:4V, Supply Voltage Max:80V, Ic Case/Package:Msop, No. Of Pins:12Pins, Power Switch:-, Ic Mounting:Surface Mount, Ic Function:-, Product Range:- Rohs Compliant: Yes |Analog Devices LT4363HMS-2#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3030 |
|
$5.7600 / $11.5600 | Buy Now |
|
DISTI #
LT4363HMS-2#TRPBFCT-ND
|
DigiKey | IC SURGE STOPPER HV 12-MSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3383 In Stock |
|
$5.5625 / $11.5600 | Buy Now |
|
DISTI #
584-LT4363HMS-2TRPBF
|
Mouser Electronics | Board Mount Surge Protectors Hi V Surge Stopper w/ C Lim RoHS: Compliant | 14935 |
|
$5.7000 / $10.0800 | Buy Now |
|
DISTI #
V36:1790_06430491
|
Arrow Electronics | Surge Stopper 12-Pin MSOP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks Date Code: 2225 | Americas - 7500 |
|
$5.5470 | Buy Now |
|
|
Analog Devices Inc | Hi V Surge Stopper w/ C Lim Min Qty: 1 Package Multiple: 2500 | 23177 |
|
$4.4500 / $11.5600 | Buy Now |
|
DISTI #
LT4363HMS-2TRPB
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 2500 | 0 |
|
$5.7400 / $5.9800 | Buy Now |
|
|
Win Source Electronics | IC SURGE STOPPER HV 12-MSOP | 15600 |
|
$4.0000 / $5.1666 | Buy Now |
Part Details for LT4363HMS-2#TRPBF
LT4363HMS-2#TRPBF CAD Models
LT4363HMS-2#TRPBF Part Data Attributes
|
|
LT4363HMS-2#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT4363HMS-2#TRPBF
Analog Devices Inc
High Voltage Surge Stopper with Current Limit
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | MSOP-12 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 05-08-1668 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | INPUT FAULT PROTECTION CONTROLLER | |
| JESD-30 Code | R-PDSO-G12 | |
| JESD-609 Code | e3 | |
| Length | 4.039 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP12,.19 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max (Isup) | 1.2 mA | |
| Supply Voltage-Max (Vsup) | 80 V | |
| Supply Voltage-Min (Vsup) | 4 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | 1.275 | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
LT4363HMS-2#TRPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT4363HMS-2#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure proper biasing, connect the EN pin to a 1.2V to 5.5V voltage source, and the VIN pin to a voltage source within the recommended operating range. Also, ensure the input and output capacitors are properly sized and placed close to the device.
-
The maximum input voltage that the LT4363HMS-2#TRPBF can handle is 80V. Exceeding this voltage may damage the device.
-
The LT4363HMS-2#TRPBF has a built-in overcurrent protection feature that limits the output current to 2.5A. However, it's recommended to add external overcurrent protection, such as a fuse or a current-sensing resistor, to protect the device and the system from excessive current.
-
The thermal derating curve for the LT4363HMS-2#TRPBF can be found in the datasheet. In general, the device's power dissipation capability decreases as the ambient temperature increases. It's essential to ensure proper thermal management to prevent overheating.
