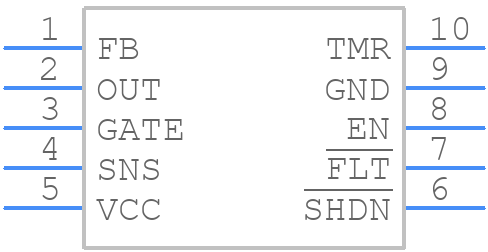

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT4356MPMS-1#PBF by Analog Devices Inc
Results Overview of LT4356MPMS-1#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Electronic Manufacturing
LT4356MPMS-1#PBF Information
LT4356MPMS-1#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT4356MPMS-1#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8925
|
Newark | Hot-Swap Ctrl, -55 To 125Deg C, Msop-10, No. Of Channels:-, Supply Voltage Min:4V, Supply Voltage Max:80V, Ic Case/Package:Msop, No. Of Pins:10Pins, Power Switch:-, Ic Mounting:Surface Mount, Ic Function:-, Product Range:- Rohs Compliant: Yes |Analog Devices LT4356MPMS-1#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 35 |
|
$9.9900 / $15.3400 | Buy Now |
|
DISTI #
LT4356MPMS-1#PBF-ND
|
DigiKey | IC SURGE STOPPER ADJ 10-MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
263 In Stock |
|
$8.8250 / $16.3800 | Buy Now |
|
DISTI #
584-LT4356MPMS-1#PBF
|
Mouser Electronics | Board Mount Surge Protectors Surge Stopper RoHS: Compliant | 783 |
|
$8.8200 / $15.9100 | Buy Now |
|
|
Analog Devices Inc | Surge Stopper Package Multiple: 50 | 20259 |
|
$7.0500 / $16.3800 | Buy Now |
|
DISTI #
35213346
|
Verical | Surge Stopper 10-Pin MSOP Tube RoHS: Compliant Min Qty: 50 Package Multiple: 50 | Americas - 18600 |
|
$8.7322 | Buy Now |
|
|
Rochester Electronics | LT4356MP-1 - Overvoltage Protection Regulator RoHS: Compliant Status: Active Min Qty: 1 | 46 |
|
$7.4300 / $9.2900 | Buy Now |
|
DISTI #
LT4356MPMS-1PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 50 | 0 |
|
$9.1200 / $10.5900 | Buy Now |
Part Details for LT4356MPMS-1#PBF
LT4356MPMS-1#PBF CAD Models
LT4356MPMS-1#PBF Part Data Attributes
|
|
LT4356MPMS-1#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT4356MPMS-1#PBF
Analog Devices Inc
LT4356MPMS-1#PBF
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | MSOP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 05-08-1661 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | INPUT FAULT PROTECTION CONTROLLER | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max (Isup) | 0.04 mA | |
| Supply Voltage-Max (Vsup) | 80 V | |
| Supply Voltage-Min (Vsup) | 4 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
LT4356MPMS-1#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT4356MPMS-1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device's compensation pin (COMP) should be properly connected to the output voltage divider.
-
The LT4356MPMS-1 can handle input voltages up to 80V, but it's recommended to limit the input voltage to 60V or less to ensure reliable operation and to prevent damage to the device.
-
The LT4356MPMS-1 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
-
To troubleshoot issues with the LT4356MPMS-1, start by checking the input and output voltages, and the device's operating frequency. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the device is properly connected and that the PCB layout is correct.
