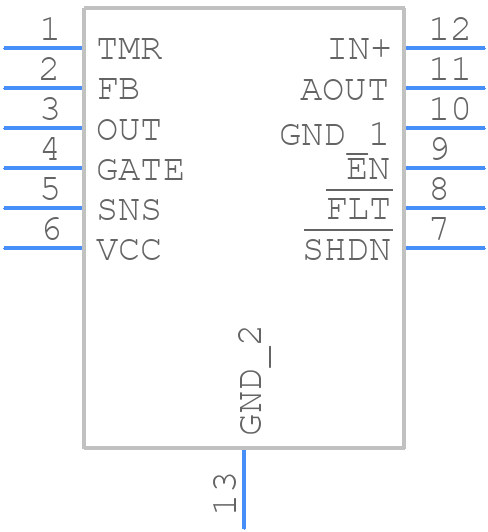

Part Symbol
-
Footprint
-

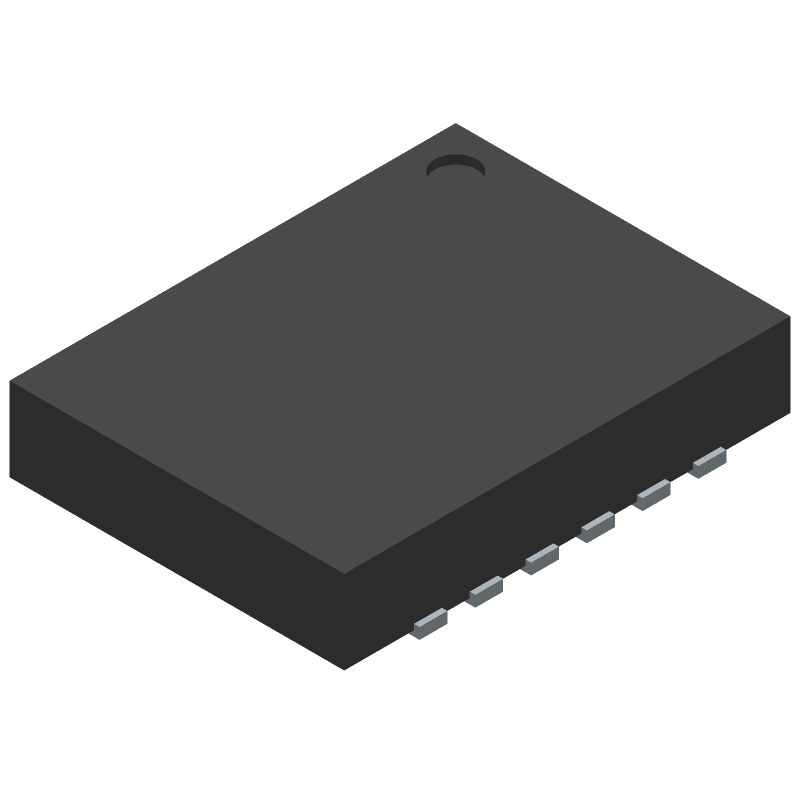

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT4356IDE-1#PBF by Analog Devices Inc
Results Overview of LT4356IDE-1#PBF by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Electronic Manufacturing
LT4356IDE-1#PBF Information
LT4356IDE-1#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT4356IDE-1#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8917
|
Newark | Hot-Swap Ctrl, -40 To 85Deg C, Dfn-12, No. Of Channels:-, Supply Voltage Min:4V, Supply Voltage Max:80V, Ic Case/Package:Dfn, No. Of Pins:12Pins, Power Switch:-, Ic Mounting:Surface Mount, Ic Function:-, Product Range:- Rohs Compliant: Yes |Analog Devices LT4356IDE-1#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 144 |
|
$3.9400 / $6.8900 | Buy Now |
|
DISTI #
505-LT4356IDE-1#PBF-ND
|
DigiKey | IC OVERVOLT PROT REG 12-DFN Min Qty: 1 Lead time: 39 Weeks Container: Tube |
6896 In Stock |
|
$3.6500 / $8.4500 | Buy Now |
|
DISTI #
584-LT4356IDE-1#PBF
|
Mouser Electronics | Board Mount Surge Protectors Surge Stopper RoHS: Compliant | 4212 |
|
$3.6500 / $7.5900 | Buy Now |
|
|
Analog Devices Inc | Surge Stopper Package Multiple: 91 | 1380 |
|
$2.9200 / $8.4500 | Buy Now |
|
DISTI #
LT4356IDE-1PBF
|
TME | IC: driver, surge stopper, DFN12, 4÷80VDC Min Qty: 1 | 0 |
|
$8.0600 / $12.2000 | RFQ |
|
DISTI #
LT4356IDE-1#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 91 | 0 |
|
$3.7700 / $4.3800 | Buy Now |
Part Details for LT4356IDE-1#PBF
LT4356IDE-1#PBF CAD Models
LT4356IDE-1#PBF Part Data Attributes
|
|
LT4356IDE-1#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT4356IDE-1#PBF
Analog Devices Inc
LT4356IDE-1#PBF
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | DFN-12 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 05-08-1695 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | INPUT FAULT PROTECTION CONTROLLER | |
| JESD-30 Code | R-PDSO-N12 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC12,.12,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 80 V | |
| Supply Voltage-Min (Vsup) | 4 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
