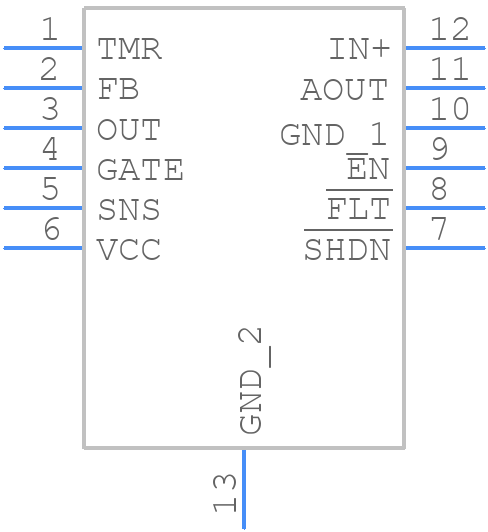

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT4356HDE-1#PBF by Analog Devices Inc
Results Overview of LT4356HDE-1#PBF by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Electronic Manufacturing
LT4356HDE-1#PBF Information
LT4356HDE-1#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT4356HDE-1#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8909
|
Newark | Hot-Swap Ctrl, -40 To 125Deg C, Dfn-12, No. Of Channels:-, Supply Voltage Min:4V, Supply Voltage Max:80V, Ic Case/Package:Dfn, No. Of Pins:12Pins, Power Switch:-, Ic Mounting:Surface Mount, Ic Function:-, Product Range:- Rohs Compliant: Yes |Analog Devices LT4356HDE-1#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 4 |
|
$5.3700 / $8.6300 | Buy Now |
|
DISTI #
505-LT4356HDE-1#PBF-ND
|
DigiKey | IC OVERVOLT PROT REG 12-DFN Min Qty: 1 Lead time: 33 Weeks Container: Tube | Temporarily Out of Stock |
|
$4.6875 / $10.1700 | Buy Now |
|
DISTI #
584-LT4356HDE-1#PBF
|
Mouser Electronics | Board Mount Surge Protectors Surge Stopper RoHS: Compliant | 2053 |
|
$5.2700 / $8.6300 | Buy Now |
|
|
Analog Devices Inc | Surge Stopper Package Multiple: 91 | 0 |
|
$3.7500 / $10.1700 | Buy Now |
|
DISTI #
LT4356HDE-1PBF
|
TME | IC: driver, surge stopper, DFN12, 4÷80VDC Min Qty: 1 | 0 |
|
$4.4500 / $6.6800 | RFQ |
|
DISTI #
LT4356HDE-1#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 91 | 0 |
|
$4.8500 / $5.6200 | Buy Now |
|
|
Dynamic Solutions GmbH | OEM and CM Only | 3000 |
|
RFQ |
Part Details for LT4356HDE-1#PBF
LT4356HDE-1#PBF CAD Models
LT4356HDE-1#PBF Part Data Attributes
|
|
LT4356HDE-1#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT4356HDE-1#PBF
Analog Devices Inc
LT4356HDE-1#PBF
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | DFN-12 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 05-08-1695 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | INPUT FAULT PROTECTION CONTROLLER | |
| JESD-30 Code | R-PDSO-N12 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC12,.12,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 80 V | |
| Supply Voltage-Min (Vsup) | 4 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LT4356HDE-1#PBF
This table gives cross-reference parts and alternative options found for LT4356HDE-1#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT4356HDE-1#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT4356IDE-1#PBF | Analog Devices Inc | $4.6776 | LT4356IDE-1#PBF | LT4356HDE-1#PBF vs LT4356IDE-1#PBF |
| LT4356HDE-1#TRPBF | Analog Devices Inc | $5.1169 | LT4356HDE-1#TRPBF | LT4356HDE-1#PBF vs LT4356HDE-1#TRPBF |
| LT4356HDE-1#PBF | Linear Technology | Check for Price | LT4356-1 and LT4356-2 - Surge Stopper; Package: DFN; Pins: 12; Temperature Range: -40°C to 125°C | LT4356HDE-1#PBF vs LT4356HDE-1#PBF |
| LT4356IDE-1 | Linear Technology | Check for Price | LT4356-1 and LT4356-2 - Surge Stopper; Package: DFN; Pins: 12; Temperature Range: -40°C to 85°C | LT4356HDE-1#PBF vs LT4356IDE-1 |
| LT4356CDE-1 | Linear Technology | Check for Price | LT4356-1 and LT4356-2 - Surge Stopper; Package: DFN; Pins: 12; Temperature Range: 0°C to 70°C | LT4356HDE-1#PBF vs LT4356CDE-1 |
| LT4356HDE-1#TR | Linear Technology | Check for Price | IC 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO12, 4 X 3 MM, PLASTIC, MO-229WGED, DFN-12, Power Management Circuit | LT4356HDE-1#PBF vs LT4356HDE-1#TR |
| LT4356HDE-1#TRPBF | Linear Technology | Check for Price | LT4356-1 and LT4356-2 - Surge Stopper; Package: DFN; Pins: 12; Temperature Range: -40°C to 125°C | LT4356HDE-1#PBF vs LT4356HDE-1#TRPBF |
| LT4356IDE-1#TRPBF | Linear Technology | Check for Price | LT4356-1 and LT4356-2 - Surge Stopper; Package: DFN; Pins: 12; Temperature Range: -40°C to 85°C | LT4356HDE-1#PBF vs LT4356IDE-1#TRPBF |
| LT4356CDE-1#TR | Analog Devices Inc | Check for Price | Power Supply Support Circuit, Adjustable, 1 Channel, CMOS, PDSO12 | LT4356HDE-1#PBF vs LT4356CDE-1#TR |
| LT4356CDE-1#TRPBF | Linear Technology | Check for Price | LT4356-1 and LT4356-2 - Surge Stopper; Package: DFN; Pins: 12; Temperature Range: 0°C to 70°C | LT4356HDE-1#PBF vs LT4356CDE-1#TRPBF |
LT4356HDE-1#PBF Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LT4356HDE-1#PBF is 80V, but it's recommended to operate within the specified input voltage range of 10V to 60V for optimal performance.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source between 4.5V and 15V, and ensure the EN pin is tied to a logic-high voltage (e.g., VCC) to enable the device.
-
To minimize EMI and noise, place the LT4356HDE-1#PBF close to the input capacitors and ensure a solid ground plane underneath the device. Keep sensitive analog traces away from the switching node and use a shielded inductor to reduce radiated emissions.
-
Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 1.5μH to 3.3μH) to ensure efficient energy transfer and minimize losses.
-
The LT4356HDE-1#PBF can deliver up to 3A of output current, but the actual current capability depends on the input voltage, output voltage, and thermal conditions.
