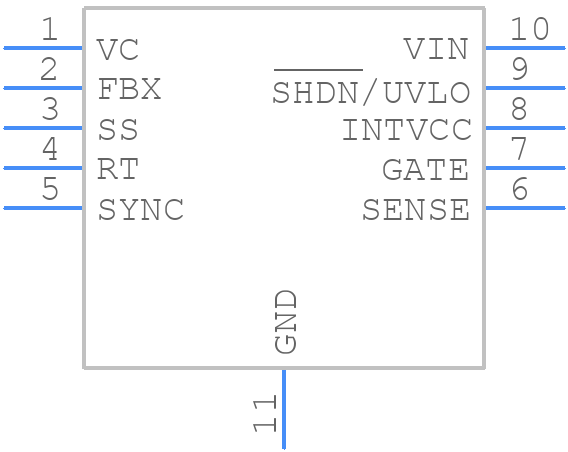

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT3757AIMSE#PBF by Analog Devices Inc
Results Overview of LT3757AIMSE#PBF by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LT3757AIMSE#PBF Information
LT3757AIMSE#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT3757AIMSE#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK5647
|
Newark | Dc/Dc Ctrl, Boost, Sepic, 1Mhz, 125Deg C, Control Mode:Current Mode Control, Supply Voltage Min:2.9V, Supply Voltage Max:40V, No. Of Outputs:1Outputs, Duty Cycle (%):-, Ic Case/Package:Msop-Ep, No. Of Pins:10Pins, Product Range:- Rohs Compliant: Yes |Analog Devices LT3757AIMSE#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 24 |
|
$3.3500 / $6.4400 | Buy Now |
|
DISTI #
505-LT3757AIMSE#PBF-ND
|
DigiKey | IC REG CTRLR MULT TOP 10MSOP Min Qty: 1 Lead time: 20 Weeks Container: Tube |
9 In Stock |
|
$3.3500 / $7.9300 | Buy Now |
|
DISTI #
584-LT3757AIMSE#PBF
|
Mouser Electronics | Switching Controllers Boost, Fly, SEPIC & Inv Cntr RoHS: Compliant | 2059 |
|
$3.3500 / $7.0700 | Buy Now |
|
DISTI #
E54:1762_06083715
|
Arrow Electronics | DC/DC Cntrlr Single-OUT Flyback/Inverting/SEPIC/Step Up 1000kHz 10-Pin MSOP EP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2512 | Europe - 284 |
|
$3.2630 / $6.3520 | Buy Now |
|
DISTI #
V36:1790_06429847
|
Arrow Electronics | DC/DC Cntrlr Single-OUT Flyback/Inverting/SEPIC/Step Up 1000kHz 10-Pin MSOP EP Tube RoHS: Compliant Min Qty: 150 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2252 | Americas - 18 |
|
$3.2630 / $3.3520 | Buy Now |
|
|
Analog Devices Inc | Boost, Fly, SEPIC & Inv Cntr Package Multiple: 50 | 2 |
|
$2.6250 / $6.6300 | Buy Now |
|
DISTI #
88796388
|
Verical | DC/DC Cntrlr Single-OUT Flyback/Inverting/SEPIC/Step Up 1000kHz 10-Pin MSOP EP Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2512 | Americas - 284 |
|
$3.2630 / $6.3520 | Buy Now |
|
DISTI #
66715155
|
Verical | DC/DC Cntrlr Single-OUT Flyback/Inverting/SEPIC/Step Up 1000kHz 10-Pin MSOP EP Tube RoHS: Compliant Min Qty: 18 Package Multiple: 18 Date Code: 2252 | Americas - 18 |
|
$3.2630 / $3.3520 | Buy Now |
|
DISTI #
LT3757AIMSE#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 150 | 0 |
|
$3.4600 / $3.7900 | Buy Now |
Part Details for LT3757AIMSE#PBF
LT3757AIMSE#PBF CAD Models
LT3757AIMSE#PBF Part Data Attributes
|
|
LT3757AIMSE#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT3757AIMSE#PBF
Analog Devices Inc
LT3757AIMSE#PBF
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | MSOP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 05-08-1664 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 40 V | |
| Input Voltage-Min | 2.9 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Nom | 7.2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 1000 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for LT3757AIMSE#PBF
This table gives cross-reference parts and alternative options found for LT3757AIMSE#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT3757AIMSE#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT3757AHMSE#PBF | Analog Devices Inc | $4.6091 | LT3757AHMSE#PBF | LT3757AIMSE#PBF vs LT3757AHMSE#PBF |
| LT3757AHMSE#TRPBF | Linear Technology | Check for Price | LT3757 - Boost, Flyback, SEPIC and Inverting Controller; Package: MSOP; Pins: 10; Temperature Range: -40°C to 125°C | LT3757AIMSE#PBF vs LT3757AHMSE#TRPBF |
| LT3757AIMSE#PBF | Linear Technology | Check for Price | LT3757 - Boost, Flyback, SEPIC and Inverting Controller; Package: MSOP; Pins: 10; Temperature Range: -40°C to 85°C | LT3757AIMSE#PBF vs LT3757AIMSE#PBF |
| LT3757AEMSE#TRPBF | Linear Technology | Check for Price | LT3757 - Boost, Flyback, SEPIC and Inverting Controller; Package: MSOP; Pins: 10; Temperature Range: -40°C to 85°C | LT3757AIMSE#PBF vs LT3757AEMSE#TRPBF |
| LT3757AIMSE#TRPBF | Analog Devices Inc | Check for Price | LT3757AIMSE#TRPBF | LT3757AIMSE#PBF vs LT3757AIMSE#TRPBF |
| LT3757AMPMSE#TRPBF | Analog Devices Inc | Check for Price | LT3757AMPMSE#TRPBF | LT3757AIMSE#PBF vs LT3757AMPMSE#TRPBF |
LT3757AIMSE#PBF Frequently Asked Questions (FAQ)
-
The LT3757 can handle input voltages up to 60V, but it's recommended to keep it below 50V for optimal performance and reliability.
-
To minimize EMI, keep the input and output capacitors close to the IC, use a solid ground plane, and keep the high-current paths short and direct. Also, consider using a shielded inductor and orienting the IC to minimize radiation.
-
The recommended PCB layout for the LT3757 involves placing the input capacitors (CIN) close to the VIN pin, the output capacitors (COUT) close to the VOUT pin, and the inductor (L) close to the SW pin. Keep the high-current paths short and direct, and use a solid ground plane to reduce noise and EMI.
-
To select the right inductor for the LT3757, consider the maximum current rating, inductance value, and core material. A good starting point is to choose an inductor with a saturation current rating above the maximum output current, and an inductance value between 1uH to 10uH. Ferrite or iron powder cores are good options.
-
The LT3757 can deliver up to 3.5A of output current, but it's recommended to derate the output current based on the input voltage, output voltage, and ambient temperature to ensure reliable operation.
